Alu Connection Angle 43 x 42

Product information "Alu Connection Angle 43 x 42"

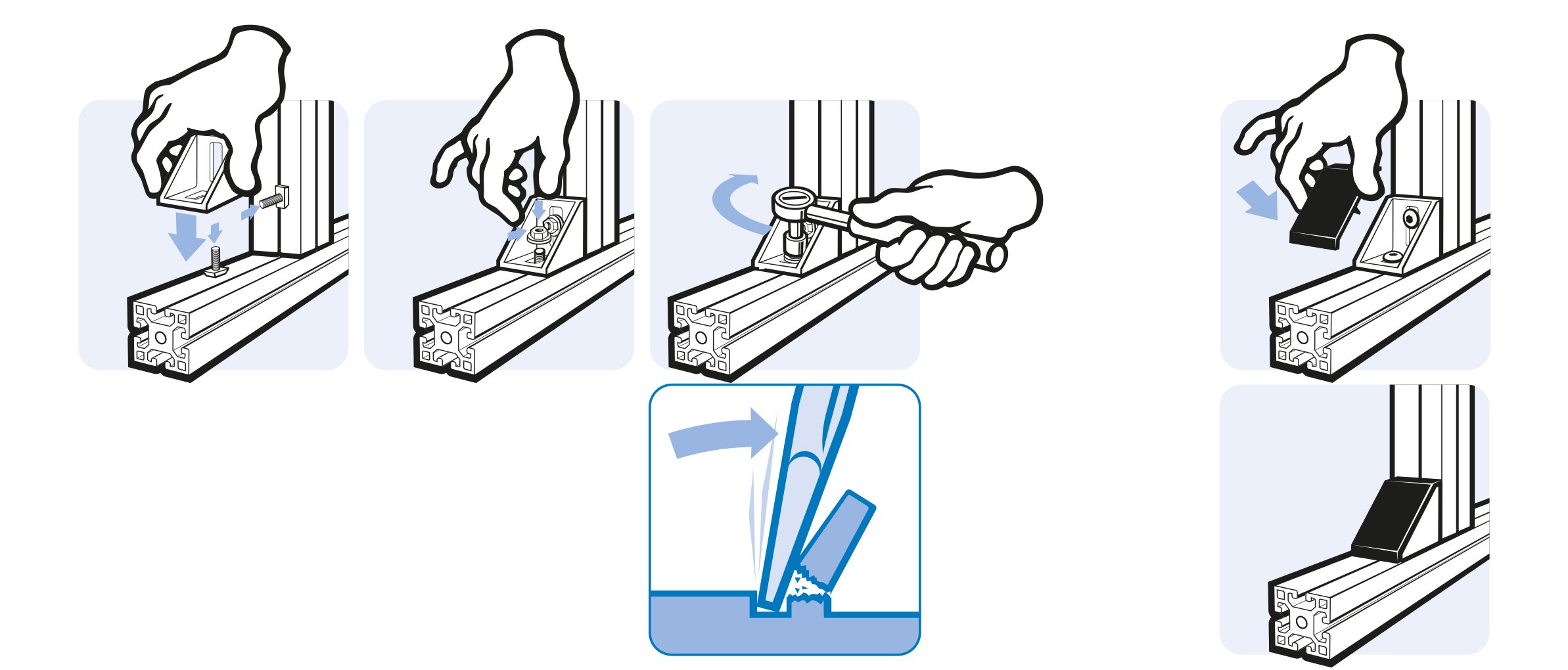

Assembly Set:
2 hammer screws - slot 10 - M8 x 25,
2 flange nuts M8

Delivery Countries:
Worldwide

Description:

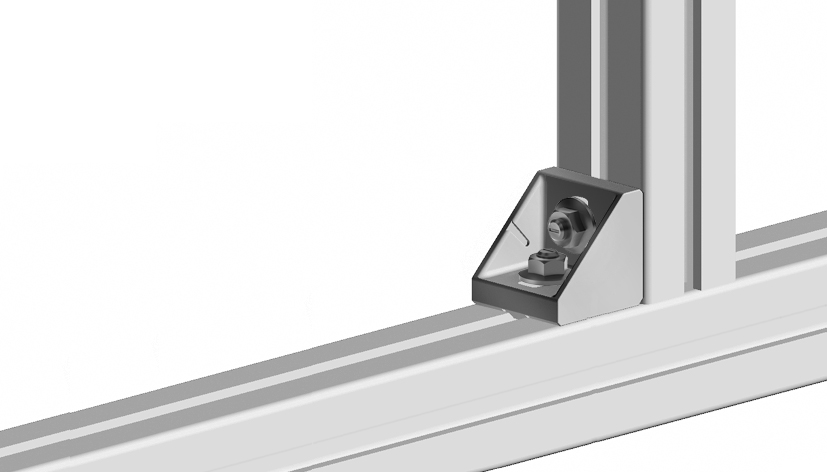

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material:
Aluminum die-cast

Specials:
Other surfaces, other colors on request

Surface:
Angle: Plain
Assembly set: Zinc plated

Tip:
Compatible Cover Cap see 093WA422

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum die-cast, profile 45 and up
Pack Quantity: 10 pieces / 10 set
Weight (g): 54.2

Variants

Product ID Slot N (mm) Version Profile
093W422N10 10
093W422N10S01 10 incl. assembly set B
