Alu Connection Angle I40 M (Set)
Regular price:
€0.00
Part #:
093W406N08S01
Pack Quantity:
10 pieces
Product information "Alu Connection Angle I40 M (Set)"
Color:
Alu color
Delivery Countries:
Worldwide
Description:

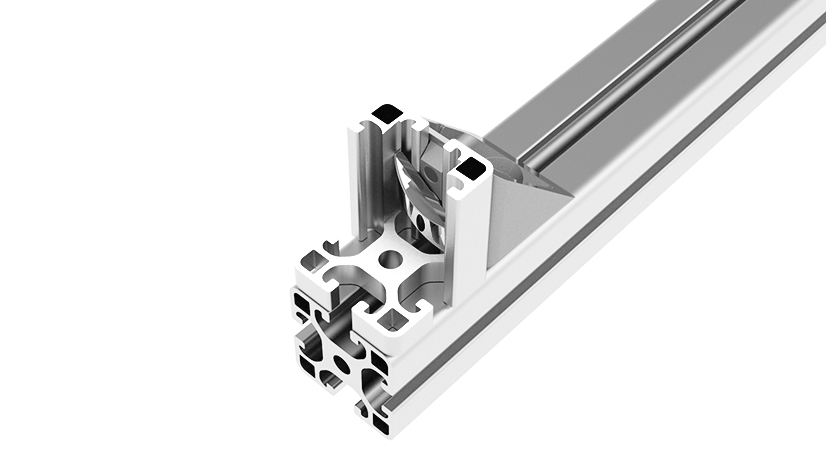

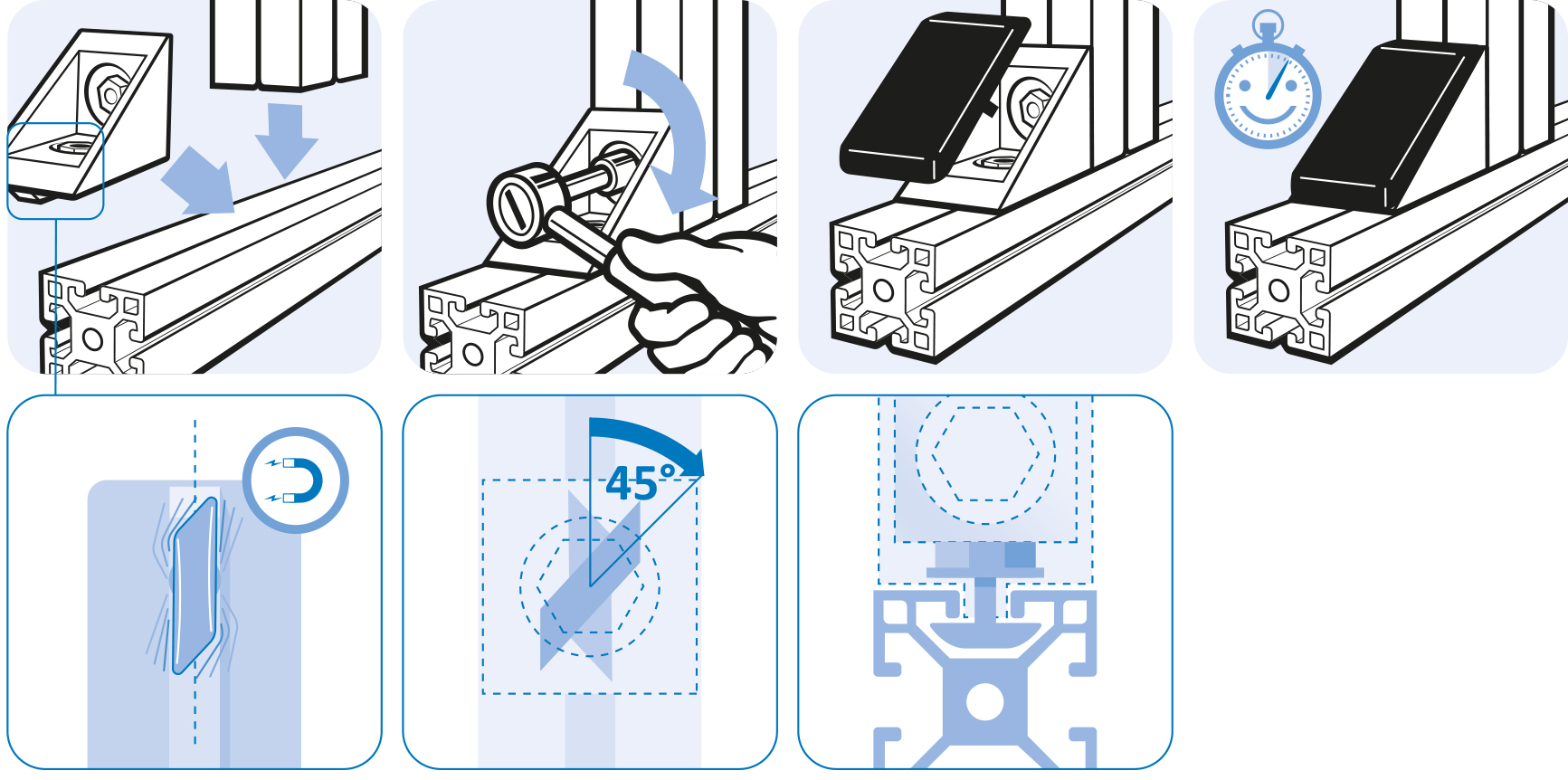

To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Magnet rhombus screws: Steel
Countersunk nuts: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated
Tip:
Compatible Cover Cap see 093WA406
Alu color
Delivery Countries:
Worldwide
Description:
To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Magnet rhombus screws: Steel
Countersunk nuts: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated
Tip:
Compatible Cover Cap see 093WA406
| Profile Type: | Profile Type I |
|---|---|
| Slot Size: | Slot 8 |
| Application Area: | Industrial Work Stations, Shopfloor |
| Pack Quantity: | 10 pieces |
| Model: | Aluminum die-cast |
| Weight (g): | 98.0 |
| ERP Number: | 133693 |
Product Portraits
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
