Alu Connection Angle I40 M (Set)
Part #:
093W406N08S01
Product information "Alu Connection Angle I40 M (Set)"
Color:
Alu color
Delivery Countries:
Worldwide
Description:

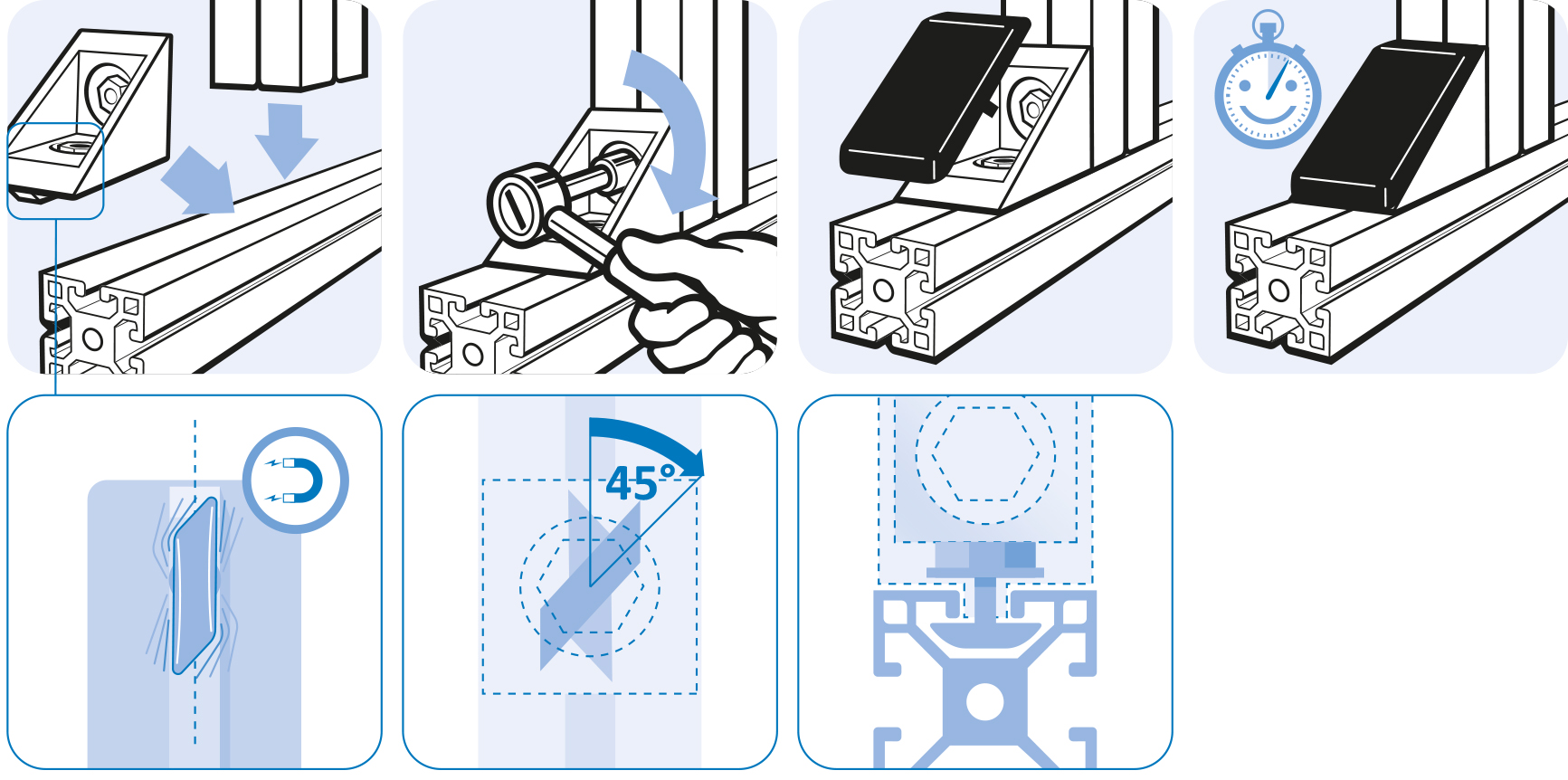

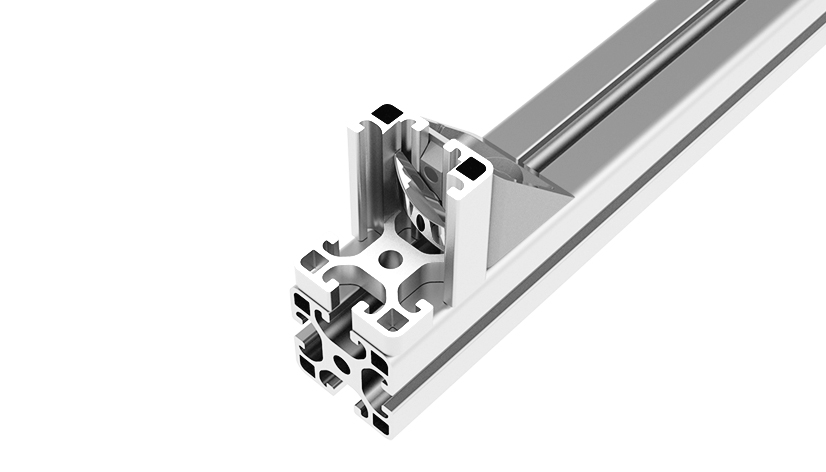

To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Magnet rhombus screws: Steel
Countersunk nuts: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated
Tip:
Compatible Cover Cap see 093WA406
Alu color
Delivery Countries:
Worldwide
Description:
To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Magnet rhombus screws: Steel
Countersunk nuts: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated
Tip:
Compatible Cover Cap see 093WA406
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 76169910 |
| ERP Number: | 133693 |
| Model: | Aluminum die-cast |
| Pack Quantity: | 10 pieces |
| Weight (g): | 98.0 |
| Zolltarifnummer: | 76169910990 |
