Aluminum Die-Cast Combi Hinge 20, Non-detachable, Alu color

Product information "Aluminum Die-Cast Combi Hinge 20, Non-detachable, Alu color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:

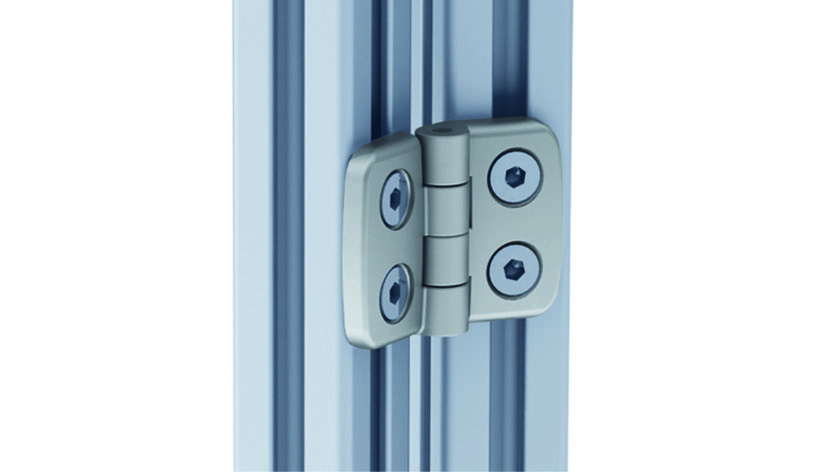

To hinge panels or aluminum profiles

Material:
Wings: Aluminum die-cast
Pin: Stainless steel

Surface:
Wings: Powder coated
Pin: Plain

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M4 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 14.0

Variants

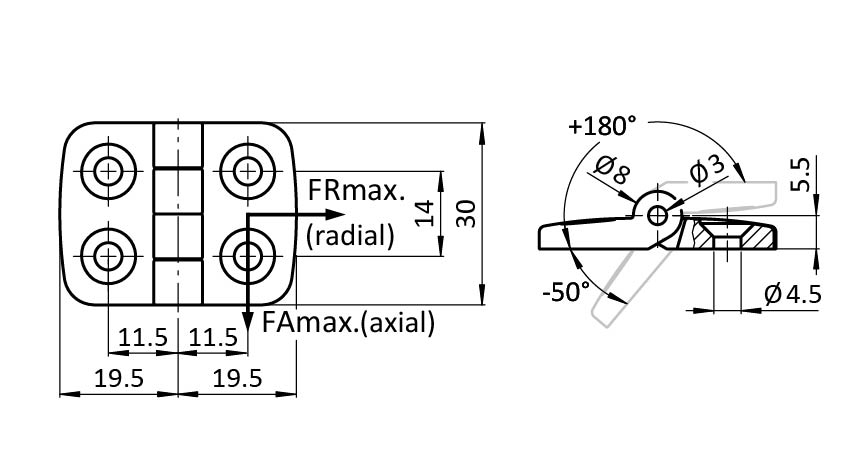

Product ID FRmax (N) Combination Version FAmax (N)
095A2020F 275 20 / 20 Non-detachable 215
