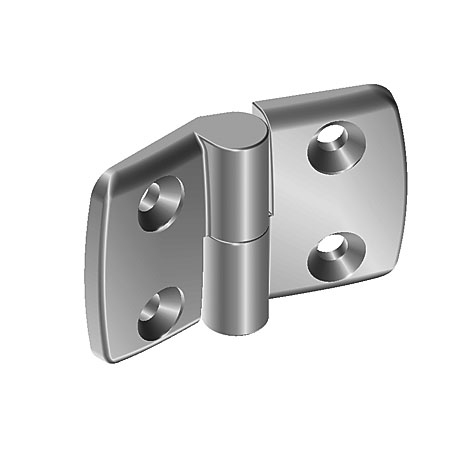

Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:

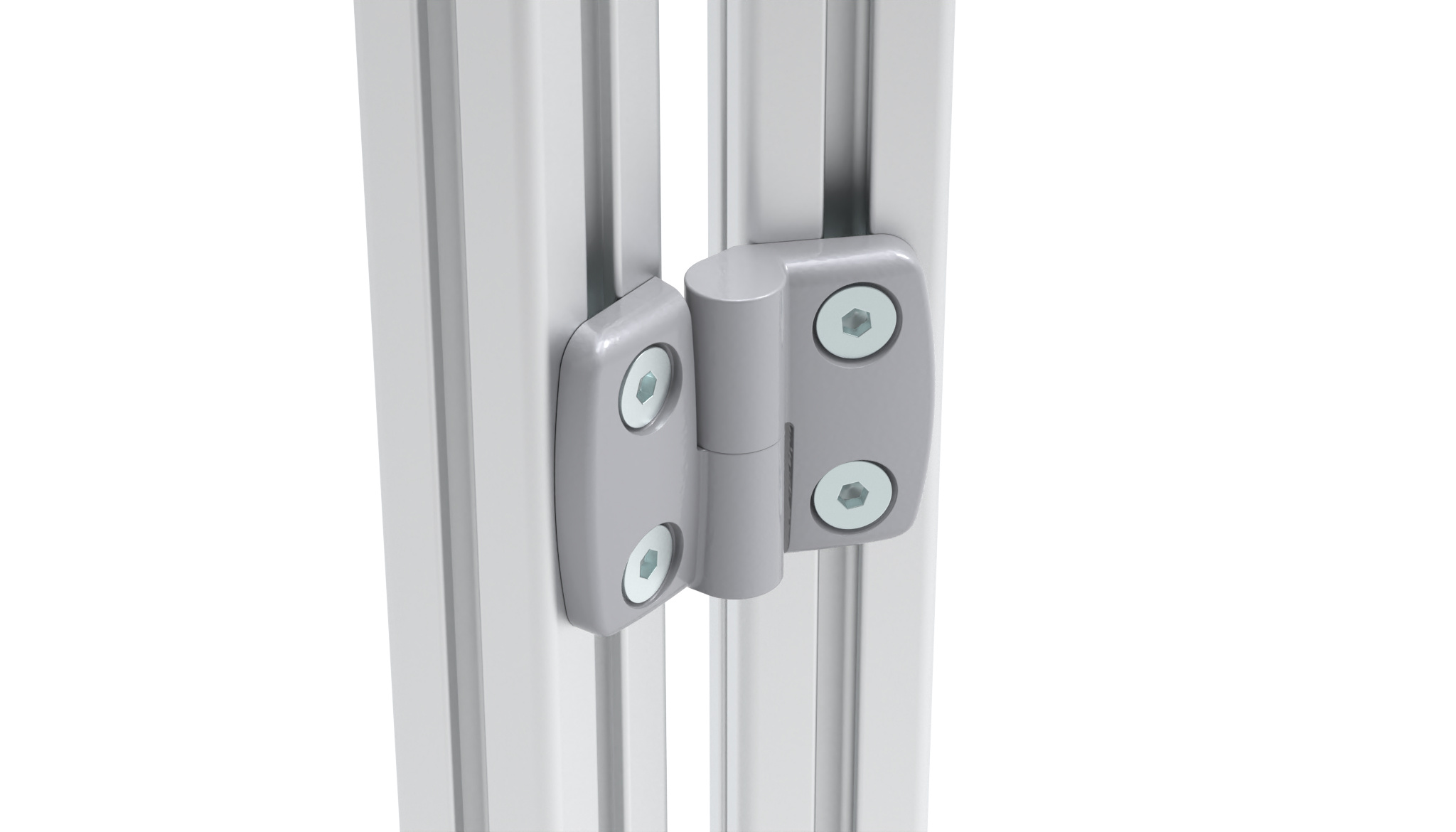

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws

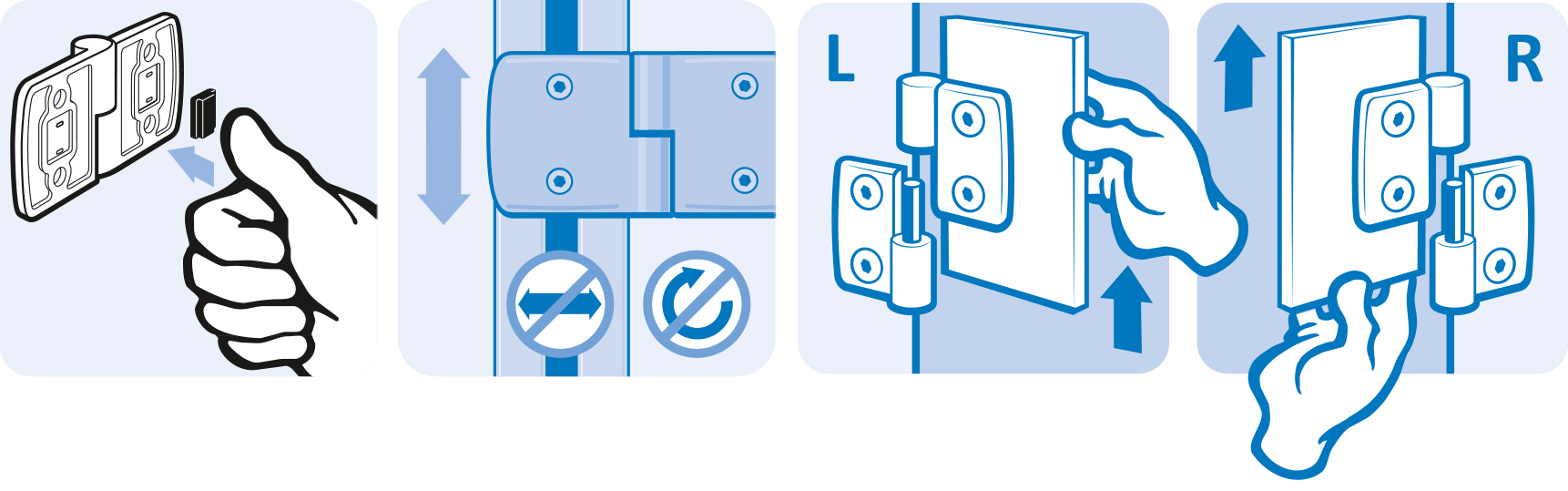

Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 64.0

Variants

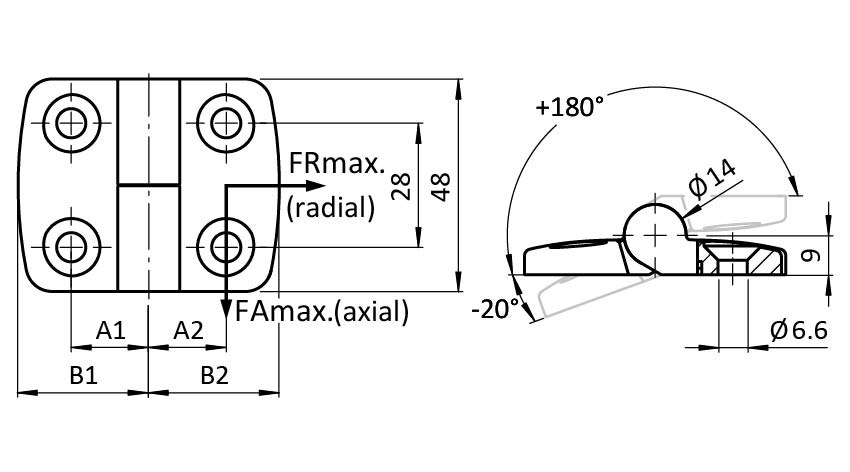

Product ID B1 (mm) A1 (mm) Version Combination FAmax (N) FRmax (N) B2 (mm) A2 (mm)
095A3025L 29.5 17.5 L: Left 30 / 25 250 410 26.0 15.0
095A3025R 26.0 15.0 R: Right 30 / 25 250 410 29.5 17.5
095A3030L 29.5 17.5 L: Left 30 / 30 280 450 29.5 17.5
095A3030R 29.5 17.5 R: Right 30 / 30 280 450 29.5 17.5
