Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:

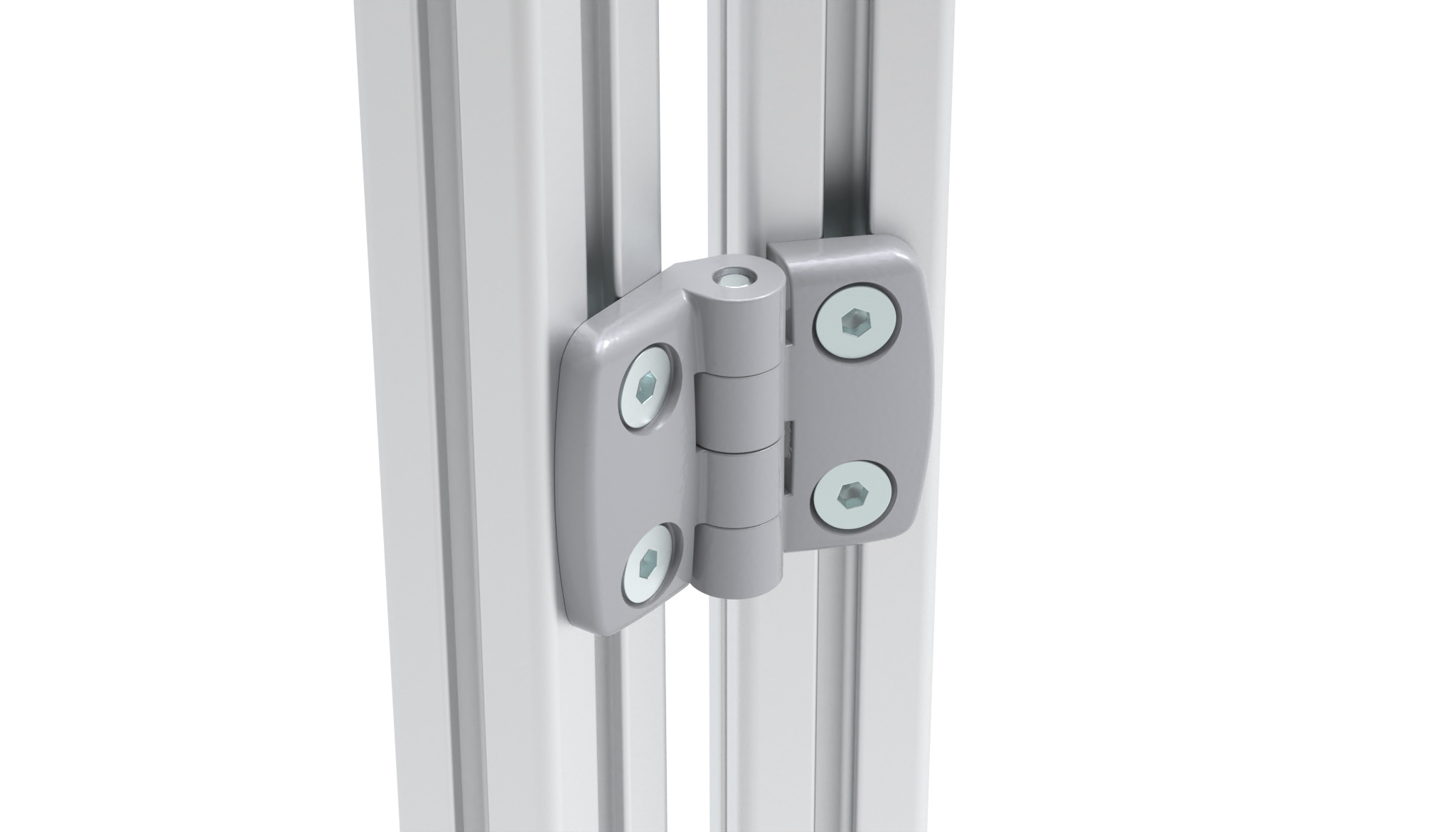

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 72.0

Variants

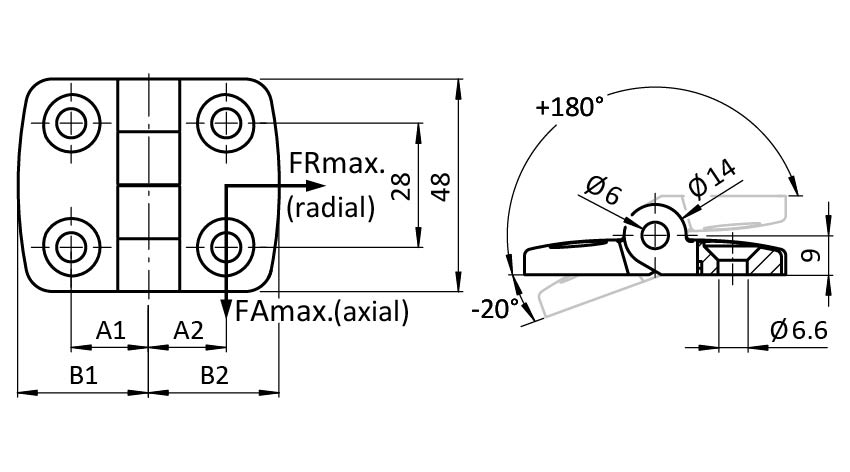

Product ID B1 (mm) A1 (mm) Version A2 (mm) FRmax (N) FAmax (N) Combination B2 (mm)
095A3030F 29.5 17.5 Non-detachable 17.5 325 225 30 / 30 29.5
095A3035F 29.5 17.5 Non-detachable 20.0 325 225 30 / 35 36.0
095A3040F 29.5 17.5 Non-detachable 22.5 400 250 30 / 40 38.5
095A3045F 29.5 17.5 Non-detachable 25.0 400 250 30 / 45 43.5
095A3050F 29.5 17.5 Non-detachable 27.5 400 250 30 / 50 48.5
095A3060F 29.5 17.5 Non-detachable 32.5 400 30 / 60 57.5
