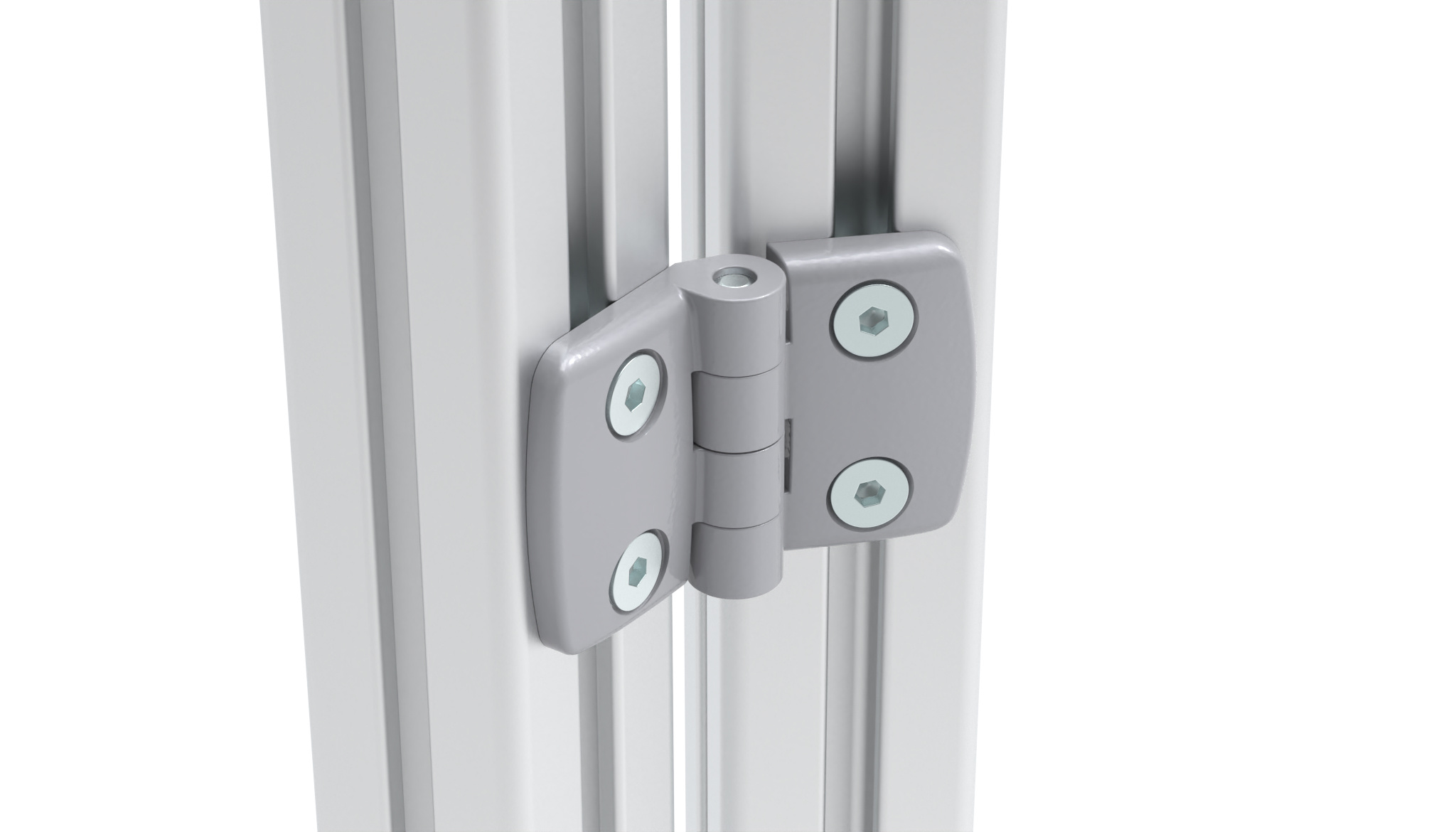

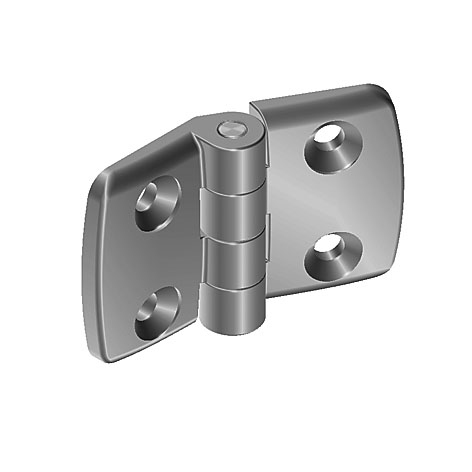

Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:

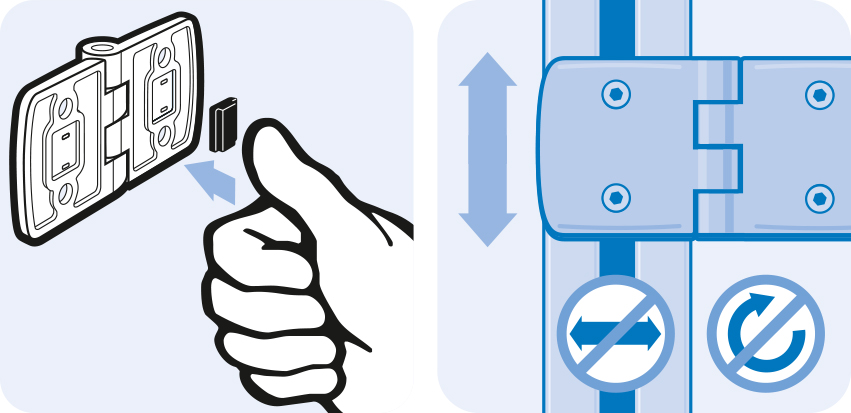

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 71.0

Variants

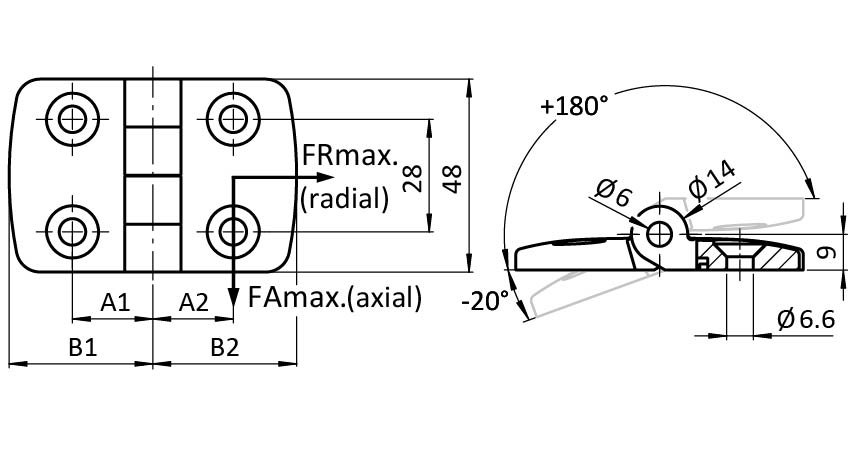

Product ID A1 (mm) Version B1 (mm) A2 (mm) Combination FRmax (N) B2 (mm) FAmax (N)
095A3535F 20.0 Non-detachable 36.0 20.0 35 / 35 325 36.0 225
095A3540F 20.0 Non-detachable 36.0 22.5 35 / 40 400 38.5 250
095A3545F 20.0 Non-detachable 36.0 25.0 35 / 45 400 43.5 250
095A3550F 20.0 Non-detachable 36.0 27.5 35 / 50 400 48.5 250
095A3560F 20.0 Non-detachable 36.0 32.5 35 / 60 400 57.5
