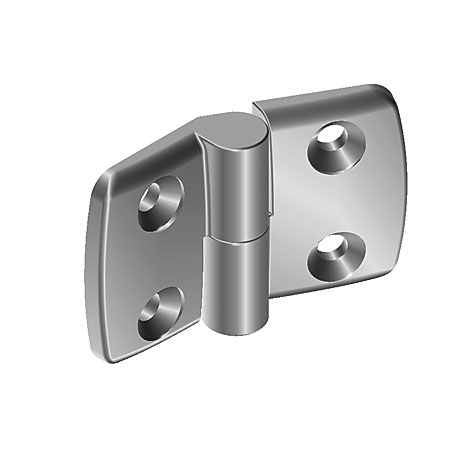

Aluminum Die-cast Combi Hinge 40, Detachable, Alu Color
Product number:
095A4025R
Product information "Aluminum Die-cast Combi Hinge 40, Detachable, Alu Color"
Color:
Wing: Alu color
Delivery Countries:
Worldwide
Description:

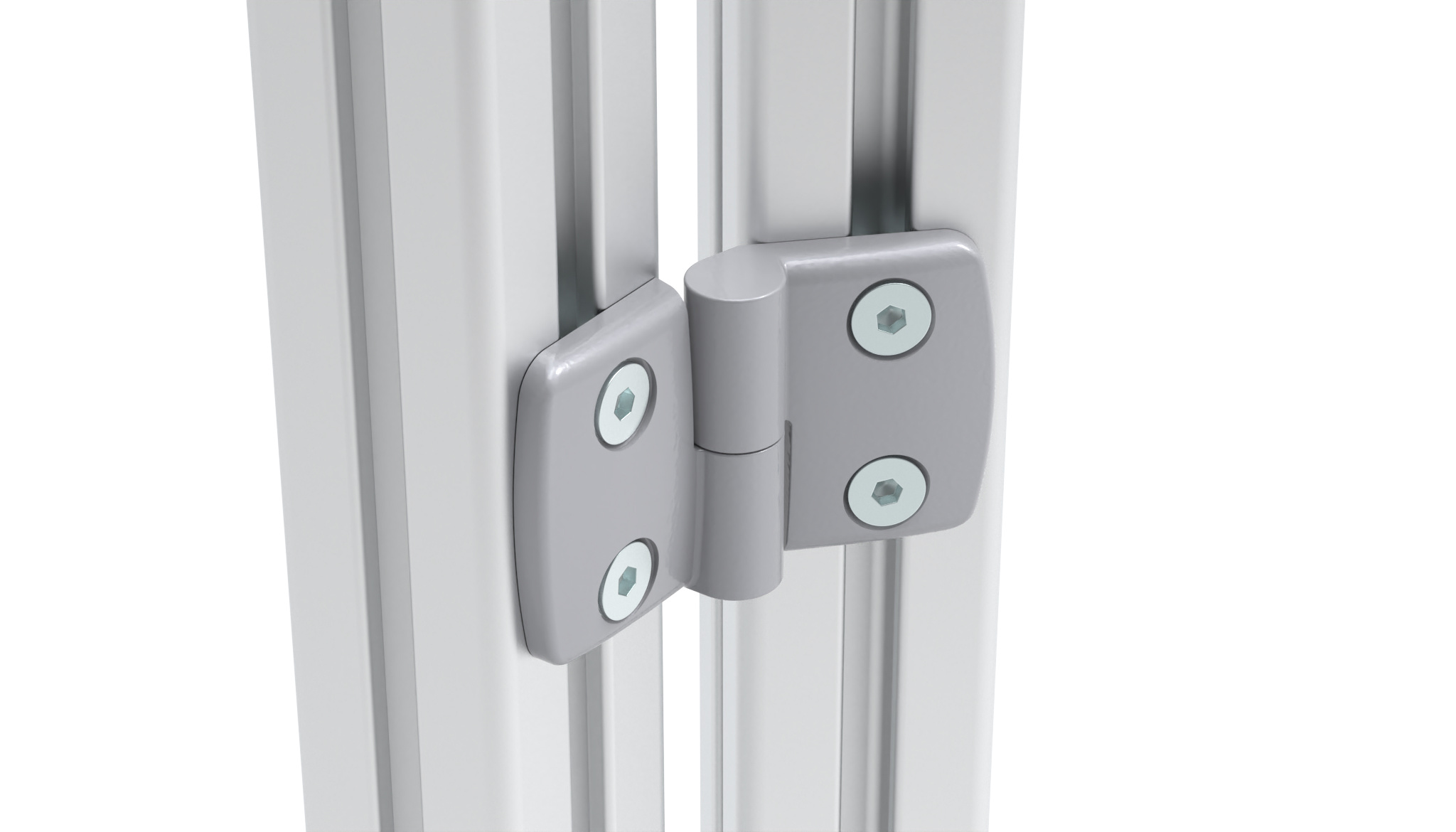

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin
Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE
Surface:
Wings: Powder coated
Pin: Plain
Tip:
Compatible Central Bolts see 095AN05
Zolltarifnummer:
83021000900
Wing: Alu color
Delivery Countries:
Worldwide
Description:
To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin
Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE
Surface:
Wings: Powder coated
Pin: Plain
Tip:
Compatible Central Bolts see 095AN05
Zolltarifnummer:
83021000900
(ECLASS 6.0): | 23219090 |
---|---|
(ECLASS 7.0): | 23219090 |
(ECLASS 8.0): | 23219090 |
(ECLASS 9.0): | 23219090 |
(ECLASS 10.0): | 23219090 |
(ECLASS 11.0): | 23219090 |
(ECLASS 12.0): | 23219090 |
(ECLASS 13.0): | 23219090 |
Fastening: | From the front, using M6 countersunk screws |

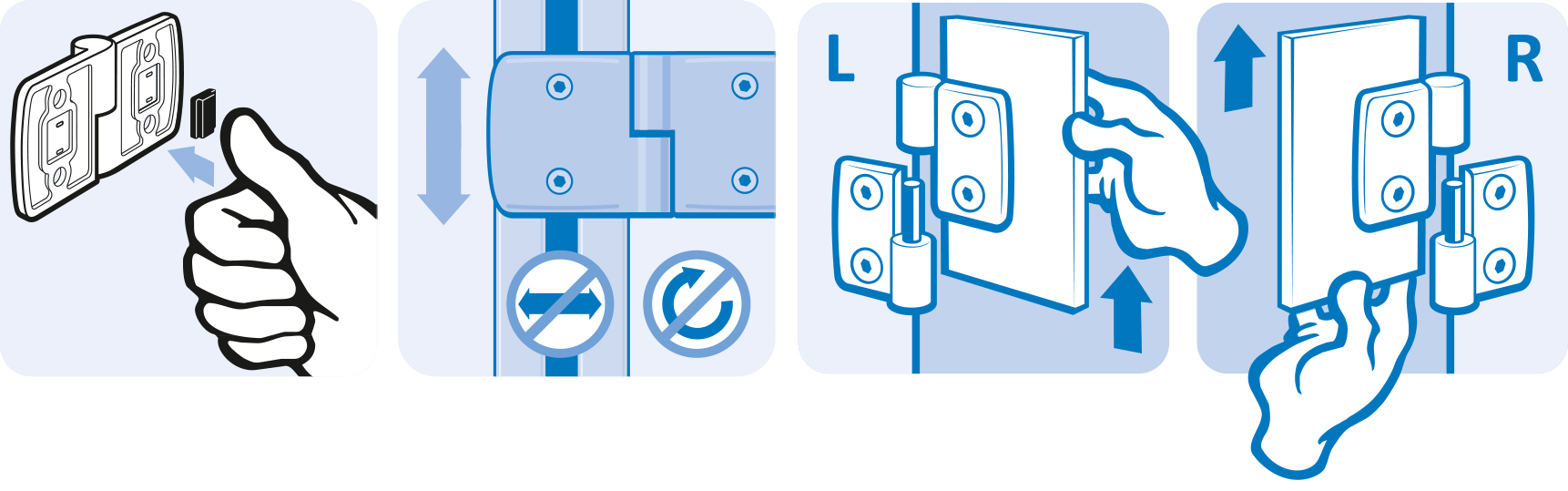

Model: | Detachable |
Pack Quantity: | 10 pieces |
Weight (g): | 62.0 |
Variants

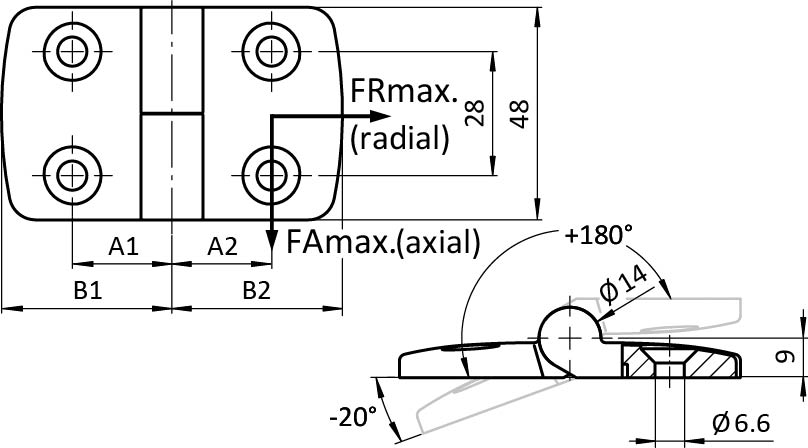

Product ID | Combination | FAmax (N) | FRmax (N) | A1 (mm) | Version | B1 (mm) | B2 (mm) | A2 (mm) |
---|---|---|---|---|---|---|---|---|
095A4025L | 40 / 25 | 250 | 410 | 22.5 | L: Left | 38.5 | 26.0 | 15.0 |
095A4025R | 40 / 25 | 250 | 410 | 15.0 | R: Right | 26.0 | 38.5 | 22.5 |
095A4030L | 40 / 30 | 280 | 450 | 22.5 | L: Left | 38.5 | 29.5 | 17.5 |
095A4030R | 40 / 30 | 280 | 450 | 17.5 | R: Right | 29.5 | 38.5 | 22.5 |
095A4035L | 40 / 35 | 250 | 22.5 | L: Left | 38.5 | 36.0 | 20.0 | |
095A4035R | 40 / 35 | 250 | 20.0 | R: Right | 36.0 | 38.5 | 22.5 | |
095A4040L | 40 / 40 | 550 | 22.5 | L: Left | 38.5 | 38.5 | 22.5 | |
095A4040R | 40 / 40 | 550 | 22.5 | R: Right | 38.5 | 38.5 | 22.5 | |
095A4060L | 40 / 60 | 150 | 575 | 22.5 | L: Left | 38.5 | 57.5 | 32.5 |
095A4060R | 40 / 60 | 150 | 575 | 32.5 | R: Right | 57.5 | 38.5 | 22.5 |
CAD Downloads
Product Portraits

Combi Hinges
FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.
