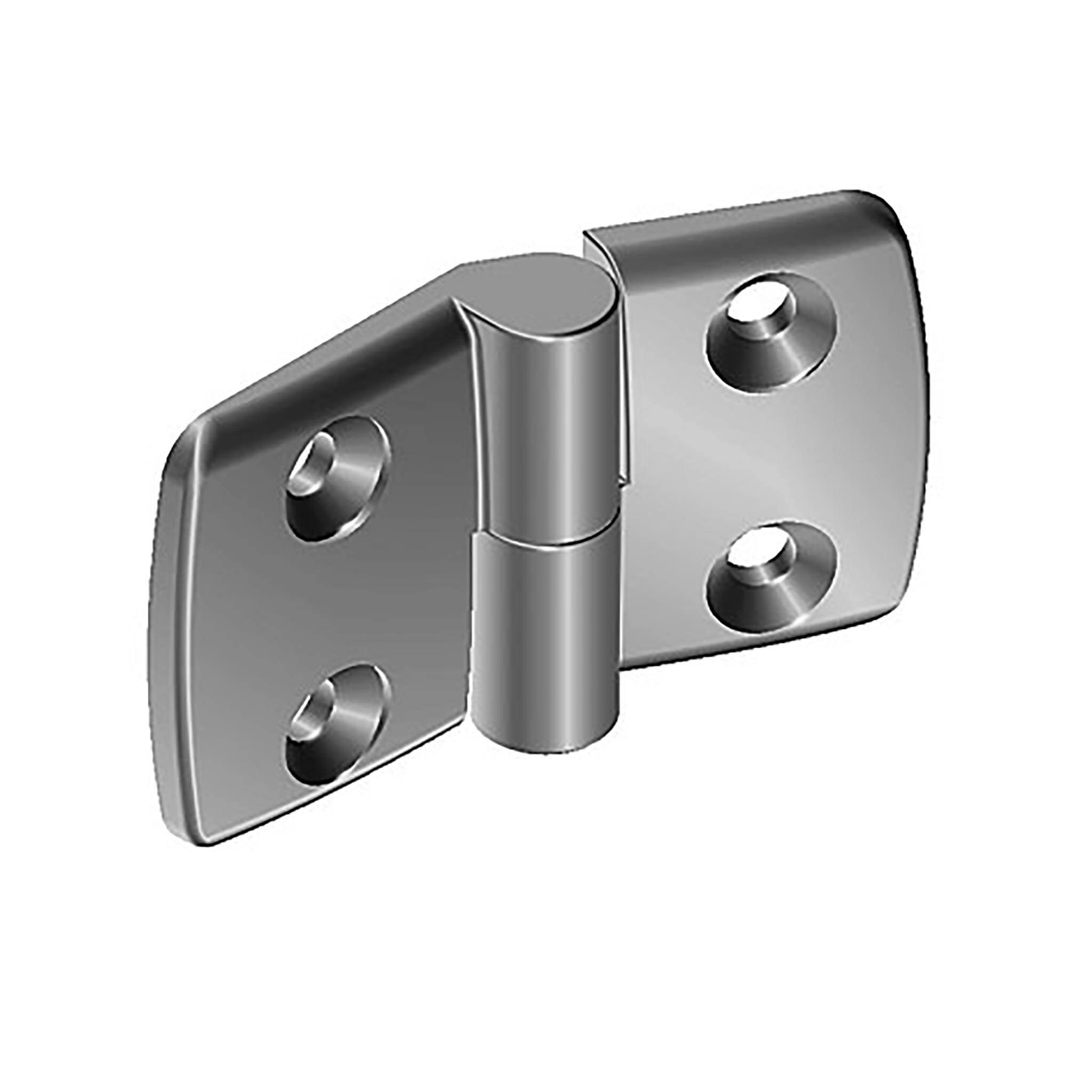

Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:

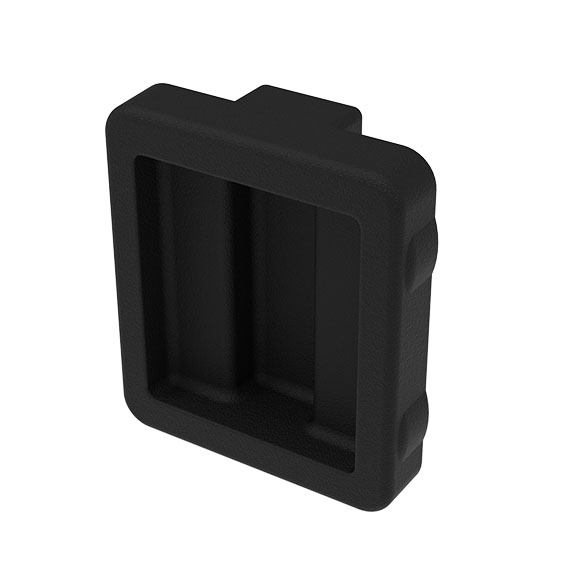

Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090

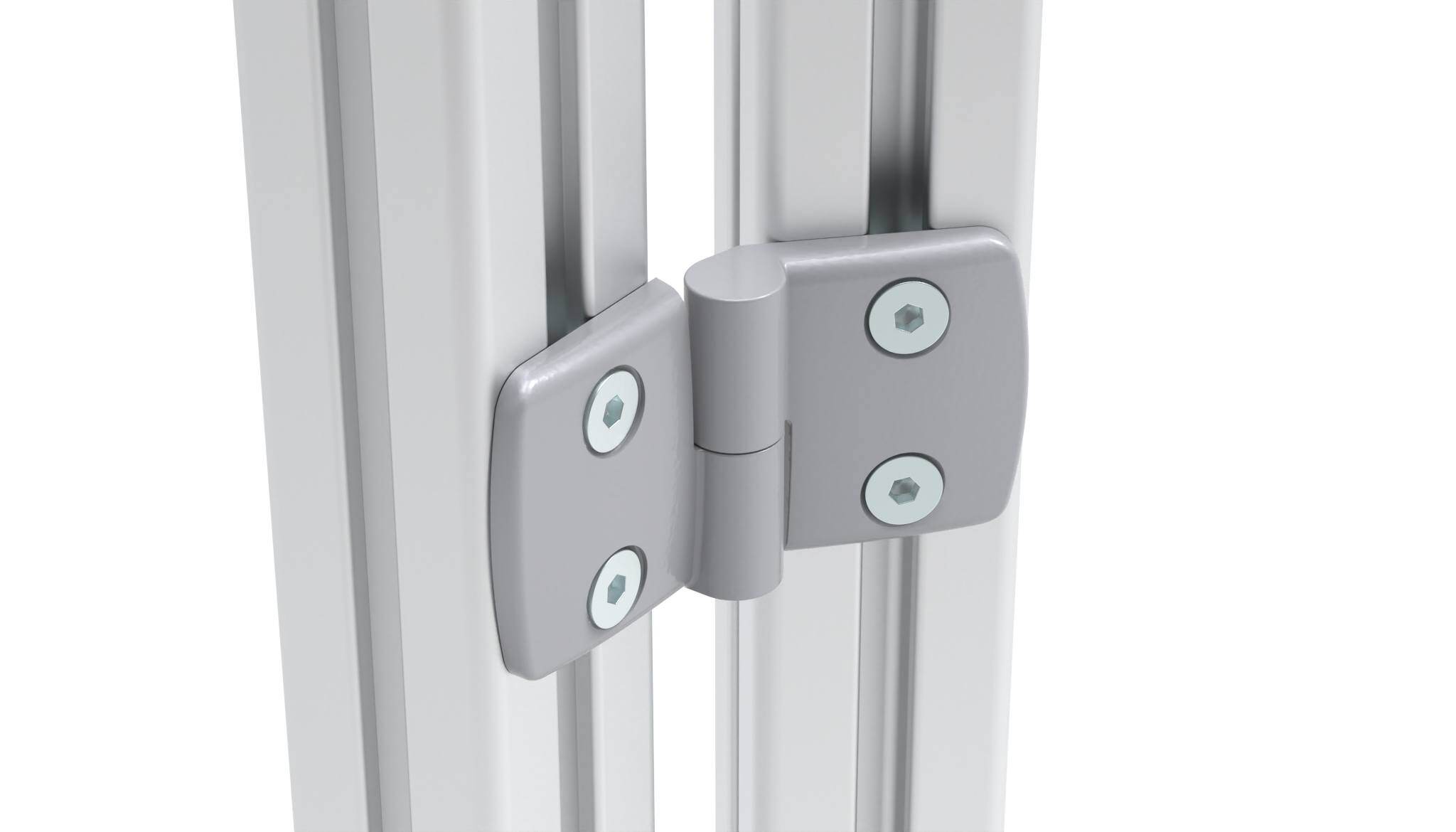

Fastening: From the front, using M6 countersunk screws

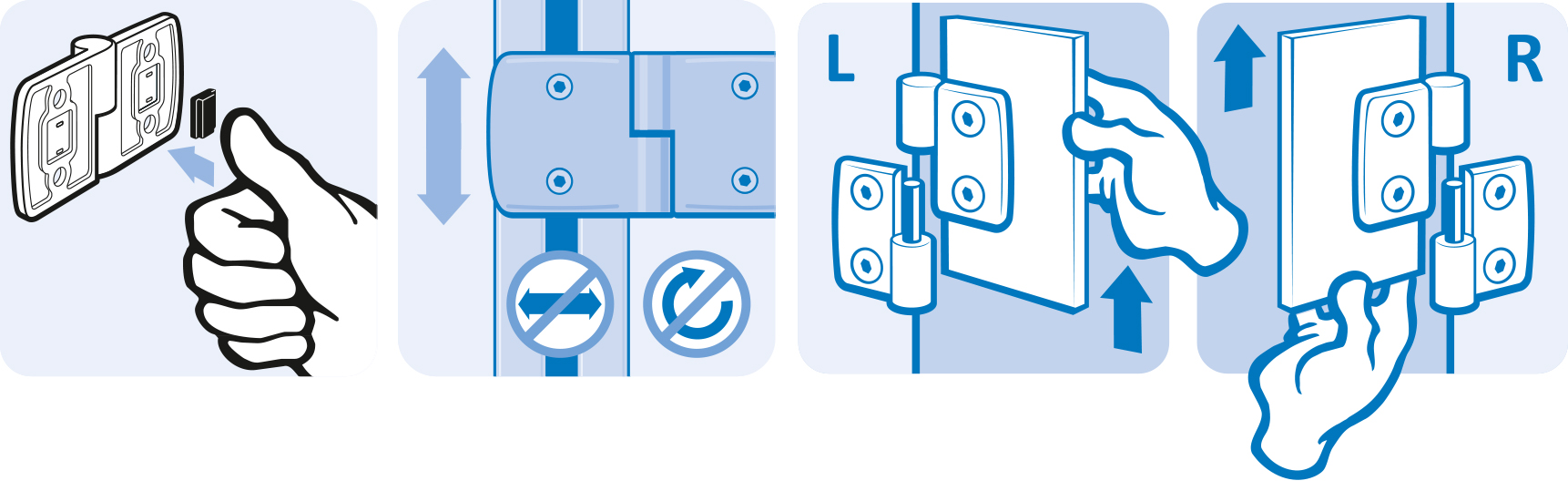

Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 68.0

Variants

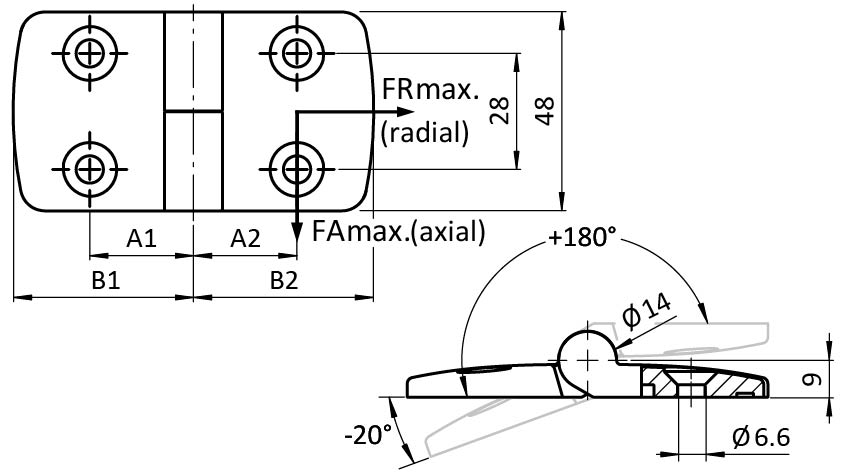

Product ID B1 (mm) A1 (mm) Version FAmax (N) Combination B2 (mm) A2 (mm) FRmax (N)
095A4525L 43.5 25.0 L: Left 250 45 / 25 26.0 15.0 410
095A4525R 26.0 15.0 R: Right 250 45 / 25 43.5 25.0 410
095A4530L 43.5 25.0 L: Left 280 45 / 30 29.5 17.5 450
095A4535L 43.5 25.0 L: Left 250 45 / 35 36.0 20.0
095A4535R 36.0 20.0 R: Right 250 45 / 35 43.5 25.0
095A4540L 43.5 25.0 L: Left 45 / 40 38.5 22.5 550
095A4540R 38.5 22.5 R: Right 45 / 40 43.5 25.0 550
095A4545L 43.5 25.0 L: Left 45 / 45 43.5 25.0 550
095A4545R 43.5 25.0 R: Right 45 / 45 43.5 25.0 550
