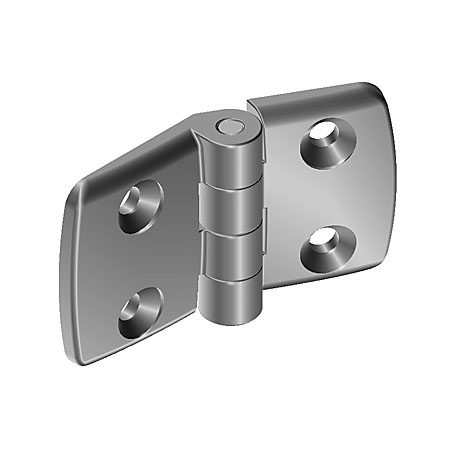

Aluminum Die-cast Combi Hinge 45, Non-detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 45, Non-detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:

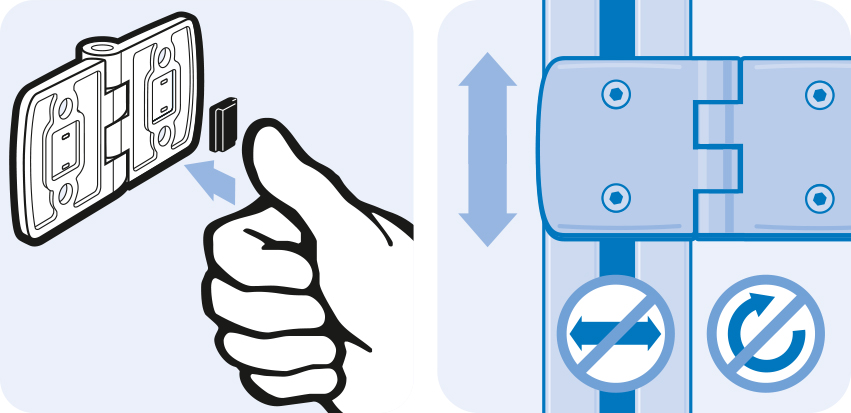

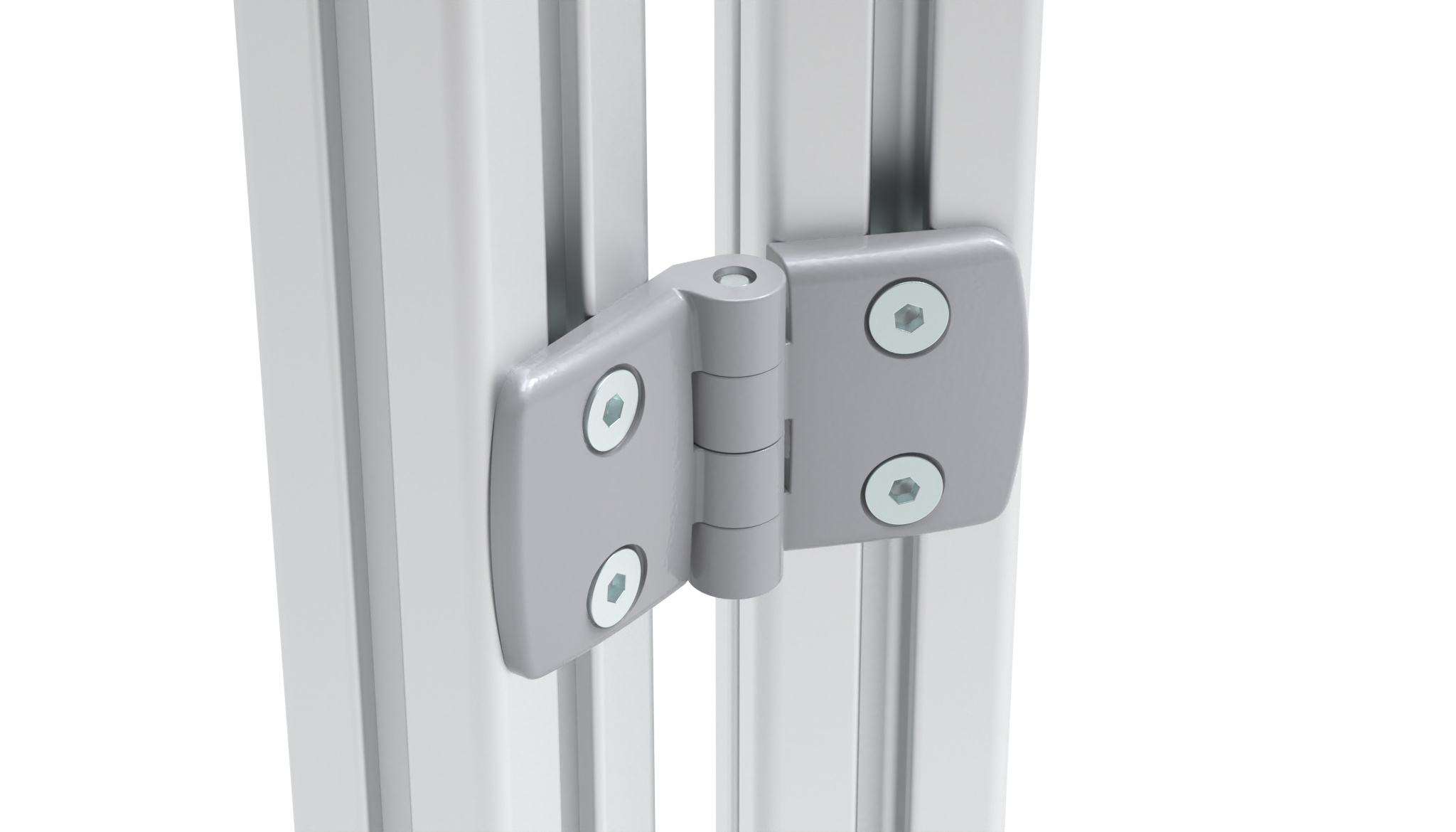

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 76.0

Variants

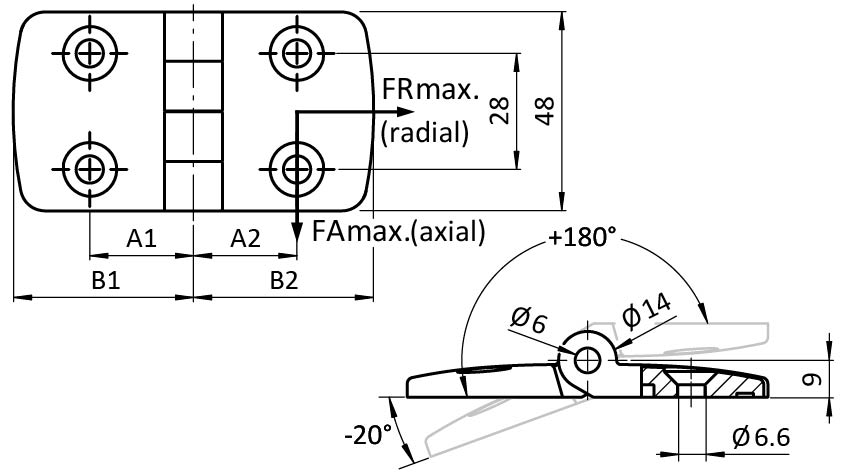

Product ID FRmax (N) B1 (mm) A1 (mm) FAmax (N) Version B2 (mm) A2 (mm) Combination
095A4545F 400 43.5 25.0 250 Non-detachable 43.5 25.0 45 / 45
095A4550F 400 43.5 25.0 250 Non-detachable 48.5 27.5 45 / 50
095A4560F 400 43.5 25.0 Non-detachable 57.5 32.5 45 / 60
