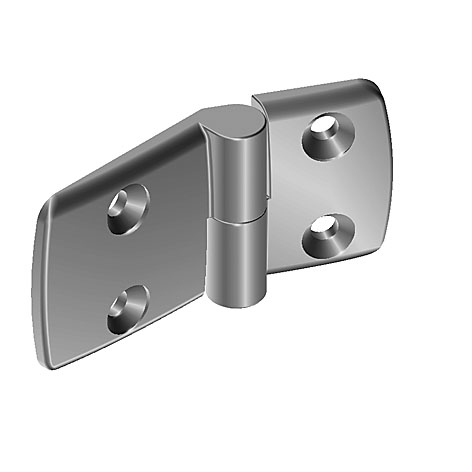

Aluminum Die-cast Combi Hinge 60, Detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 60, Detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:

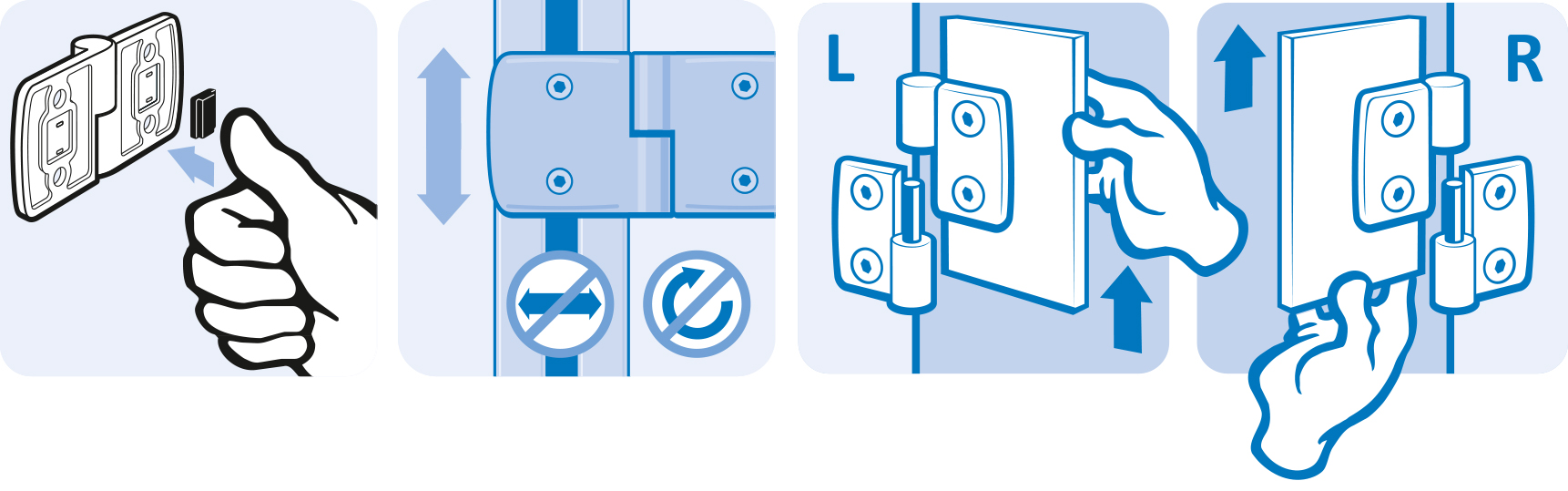

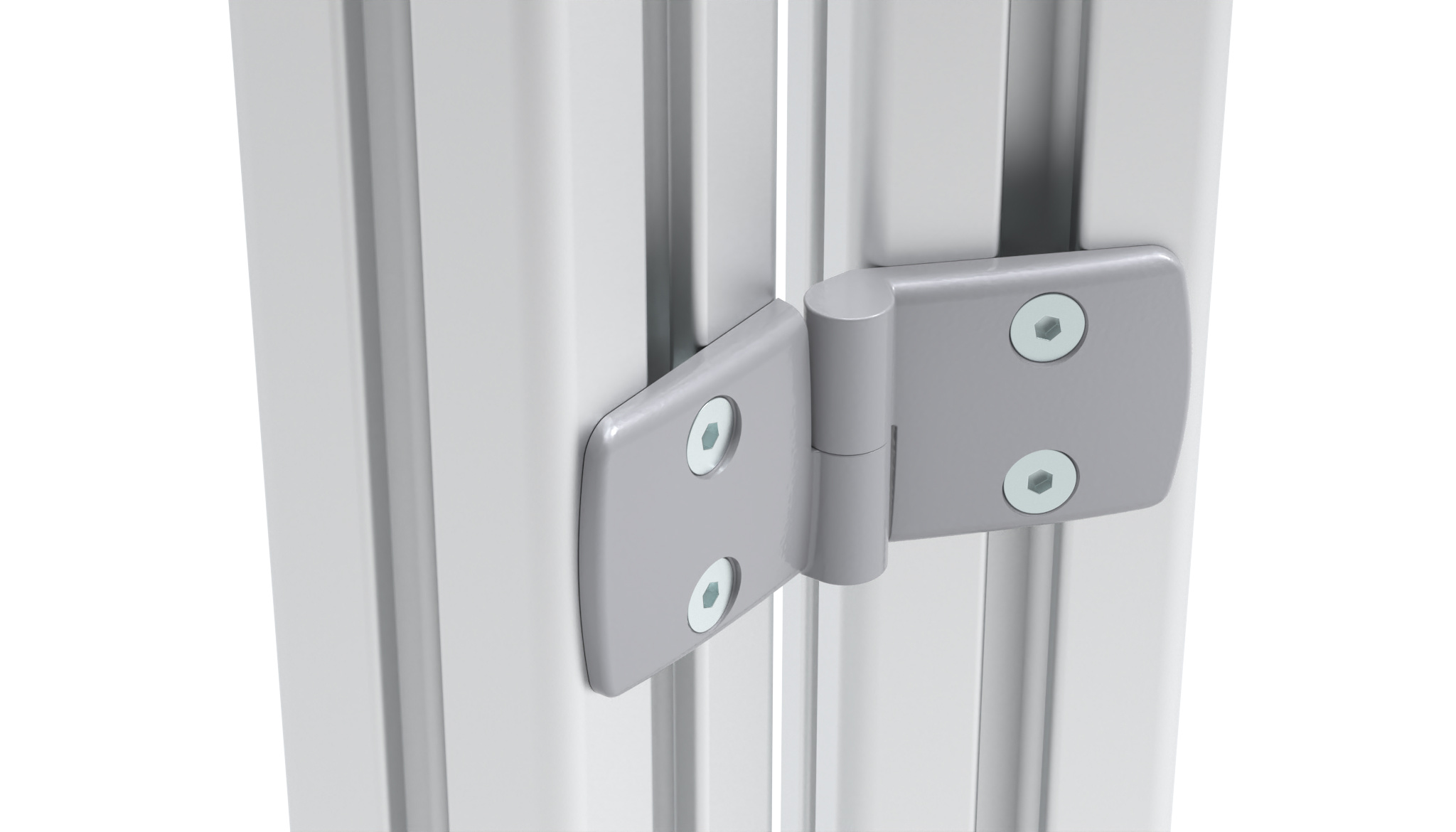

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 80.0

Variants

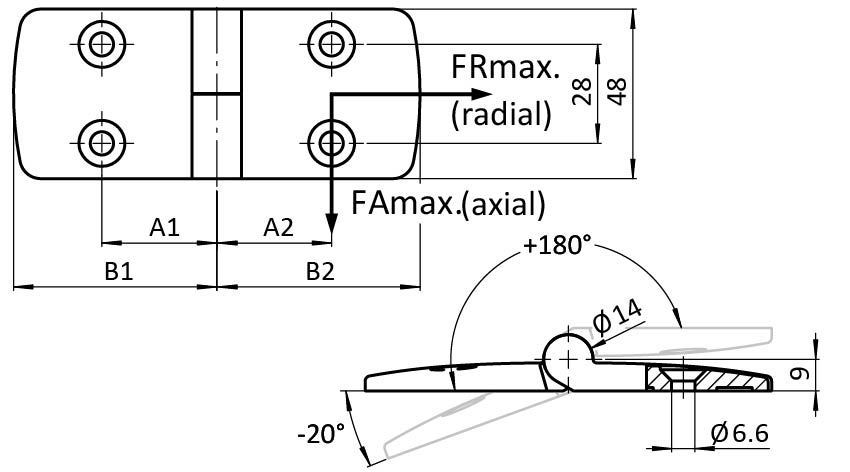

Product ID A1 (mm) Version B1 (mm) FAmax (N) Combination B2 (mm) A2 (mm) FRmax (N)
095A6025L 32.5 L: Left 57.5 250 60 / 25 26.0 15.0 410
095A6025R 15.0 R: Right 26.0 250 60 / 25 57.5 32.5 410
095A6030L 32.5 L: Left 57.5 280 60 / 30 29.5 17.5 450
095A6030R 17.5 R: Right 29.5 280 60 / 30 57.5 32.5 450
095A6035L 32.5 L: Left 57.5 250 60 / 35 36.0 20.0
095A6035R 20.0 R: Right 36.0 250 60 / 35 57.5 32.5
095A6040L 32.5 L: Left 57.5 60 / 40 38.5 22.5 550
095A6040R 22.5 R: Right 38.5 60 / 40 57.5 32.5 550
095A6045L 32.5 L: Left 57.5 60 / 45 43.5 25.0 550
095A6045R 25.0 R: Right 43.5 60 / 45 57.5 32.5 550
095A6050L 32.5 L: Left 57.5 175 60 / 50 48.5 27.5 575
095A6050R 27.5 R: Right 48.5 175 60 / 50 57.5 32.5 575
095A6060L 32.5 L: Left 57.5 150 60 / 60 57.5 32.5 575
095A6060R 32.5 R: Right 57.5 150 60 / 60 57.5 32.5 575
