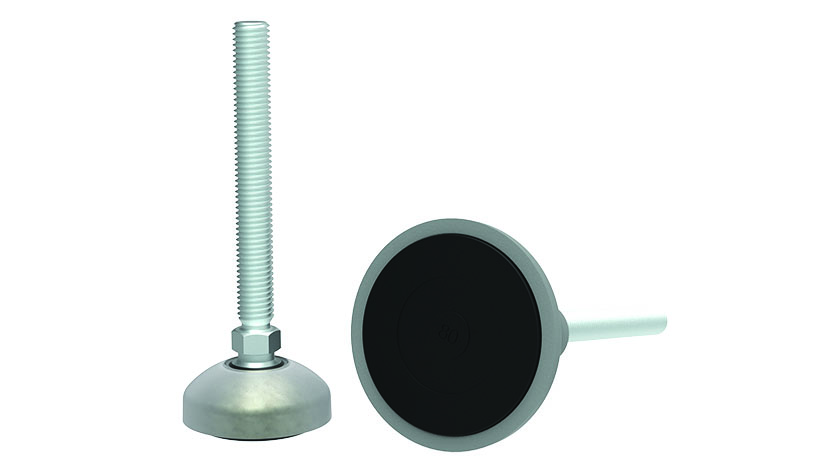

Anti-slip Plate for Swivel Feet, Ball Joint 15

Product information "Anti-slip Plate for Swivel Feet, Ball Joint 15"

Color:
Black

Delivery Countries:
Worldwide

Description:
Prevents movement of leveling feet on slippery surfaces and absorbs some vibration

Material:
Thermoplastic elastomer, ≈ 70 Shore A

Specials:
ESD electrostatical discharging on request

Tip:
* Also for bases with bolt down holes

Zolltarifnummer:
40169997900
Model: For swivel feet, ball joint 15 and ball joint 22
Pack Quantity: 10 pieces
Specification: Water and oil resistant (up to 60 °C)
Weight (g): 60.0

Variants

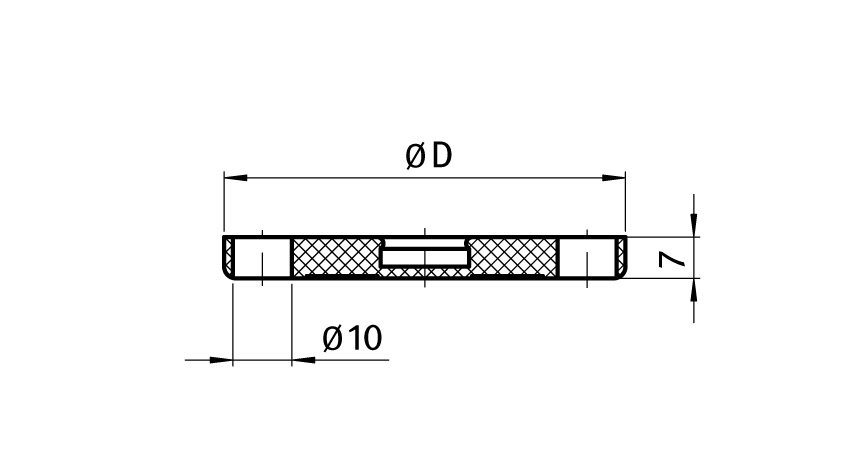

Product ID Version for Base D (mm)
098DG030 30 20
098DG040 40 30
098DG040B With central Ø 8.5 mm bore 40 30
098DG045 45 35
098DG050 50 40
098DG060 60 50
098DG060B *60 50
098DG080 80 68
098DG080B *80 68
098DG100B *100 87
098DG120B *120 108
