Automatic Double Connector I, Slot 8 (Set)

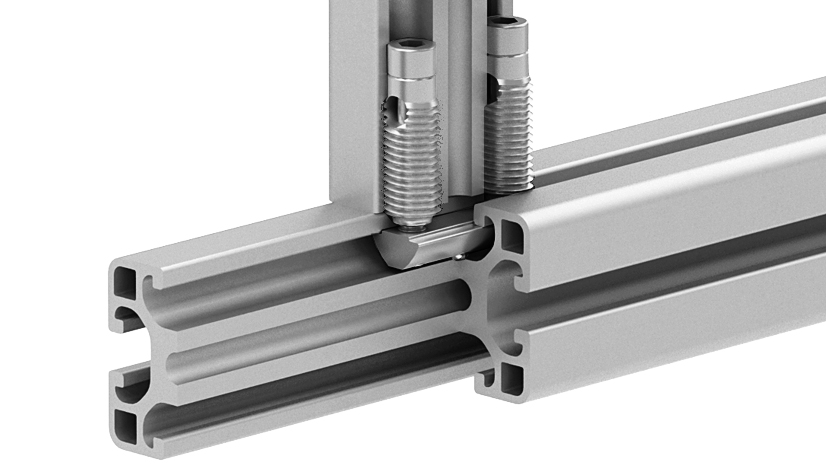

Automatic Double Connector I, Slot 8 (Set) – application example

Product information "Automatic Double Connector I, Slot 8 (Set)"

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles fast and solid, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:
Compatible Cover Cap see 099GA081K

Pack Quantity:	100 pieces
Model:	Steel
Weight (g):	89.0
ERP Number:	133483

Global keywords / tags:

Profile Type	Profile Type I
Slot Size	Slot 8
Product Feature	ESD
Profile Form	T-slot Profiles

Variants

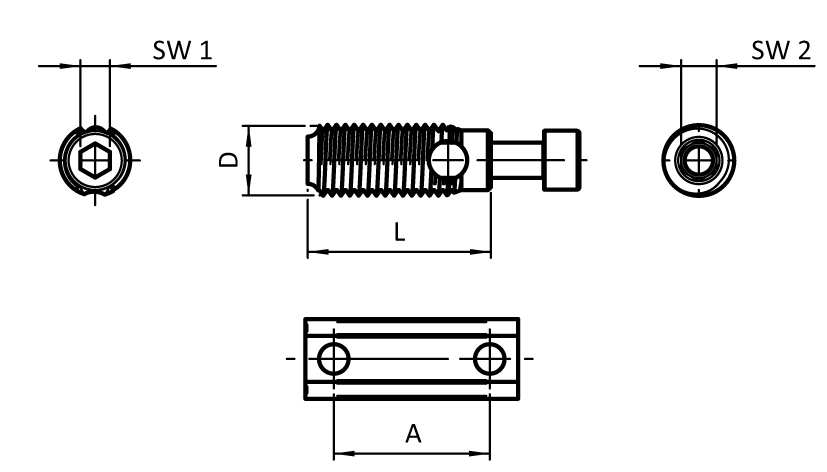

Part #	D (mm)	Profile	A (mm)	L (mm)	ESD	Slot N (mm)	Profile Width	SW 1	SW 2	Screw
099G081D40	12.0	I	26.4	31.0	-	8	40	6	5	M6 x 40
099G081D40ESD	12.0	I	26.4	31.0	ESD electrostatical discharging	8	40	6	5	M6 x 40
099G081D80	12.0	I	66.4	31.0	-	8	80	6	5	M6 x 40
099G081D80ESD	12.0	I	66.4	31.0	ESD electrostatical discharging	8	80	6	5	M6 x 40

CAD Downloads

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73181900900
Customs Tariff Number Export: 73181900

Certificates
