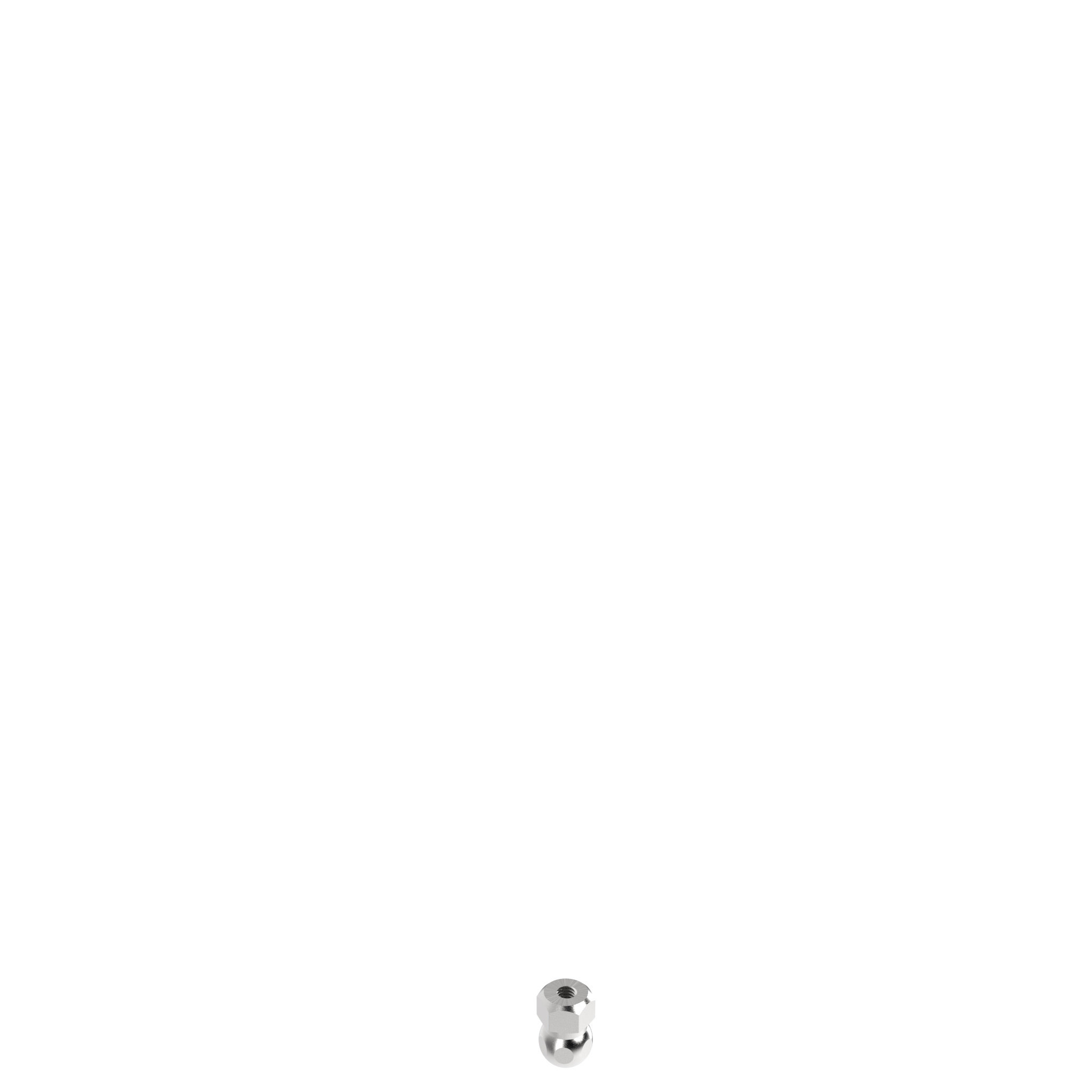

Ball Joint SS with Female Thread for Swivel Feet, Ball Joint 15

€0.00

Material

Stainless steel

SW

14 mm

14 mm - 9/16"

M x l

1/4-20 UNC x 0.4"

M6 x 10 mm

M8 x 10 mm

Part #: 098DSW14M06E

Pack Quantity: 10 pieces

Product information "Ball Joint SS with Female Thread for Swivel Feet, Ball Joint 15"

Delivery Countries:
Worldwide / North America

Description:
To fix leveling feet using standard screws

Material:
Stainless steel

Surface:
Plain

Pack Quantity:	10 pieces
Model:	Stainless steel
Weight (g):	20.0
ERP Number:	104356

Variants

Part #	Material	SW	M x l
098DSW14M06E	Stainless steel	14 mm	M6 x 10 mm
098DSW14M08E	Stainless steel	14 mm	M8 x 10 mm
098DSW14U1/4E	Stainless steel	14 mm - 9/16"	1/4-20 UNC x 0.4"

CAD Downloads

Classifications

ECLASS 6.0: 90900103
ECLASS 7.0: 90900103
ECLASS 8.0: 90900103
ECLASS 9.0: 90900103
ECLASS 10.0: 90900103
ECLASS 11.0: 90900103
ECLASS 12.0: 90900103
ECLASS 13.0: 90900103
ECLASS 14.0: 90900103
ECLASS 15.0: 90900103
ECLASS 16.0: 23010705
Customs Tariff Number Export: 73181900

Certificates

Profile Type	Profile Type B, Profile Type I
Product Feature	ESD, Stainless
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
