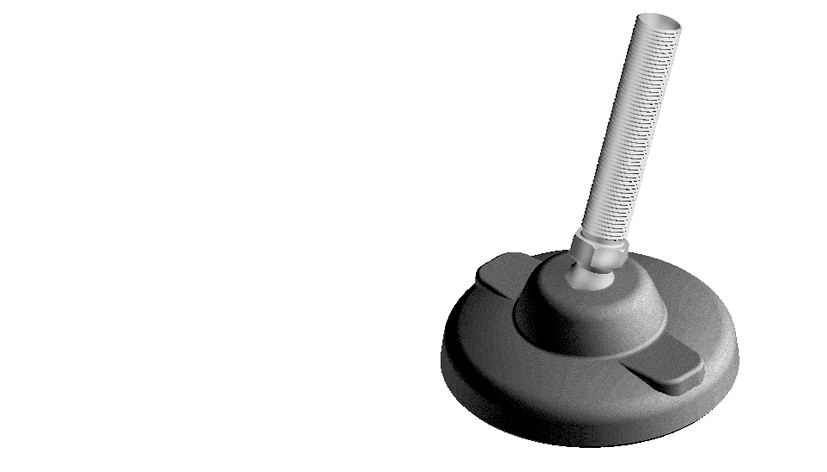

Base PA BDH for Heavy-duty Swivel Feet, Ball Joint 22
€0.00
Product information "Base PA BDH for Heavy-duty Swivel Feet, Ball Joint 22"
Black
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot for a strong positioning
Of heavy machinery on uneven floors
Material:
Plastic PA, glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;
as factory assembled leveling foot on request
Tip:
Compatible Threaded Rod see 098CM16066M et sq.,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate 098AG125B
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Plastic PA, with bolt-down holes |
| Weight (g): | 565.0 |
| ERP Number: | 103782 |
Classifications
- ECLASS 6.0
- 90900102
- ECLASS 7.0
- 90900102
- ECLASS 8.0
- 90900102
- ECLASS 9.0
- 90900102
- ECLASS 10.0
- 90900102
- ECLASS 11.0
- 90900102
- ECLASS 12.0
- 90900102
- ECLASS 13.0
- 90900102
- ECLASS 14.0
- 90900102
- ECLASS 15.0
- 90900102
- ECLASS 16.0
- 23010704
- Zolltarifnummer
- 39269097900
- Customs Tariff Number Export
- 39269097
Certificates
