Base PA BDH for Swivel Feet, Ball Joint 15, Black
Product number:
098D080KBG
Product information "Base PA BDH for Swivel Feet, Ball Joint 15, Black"
Color:
Black
Delivery Countries:
Worldwide
Description:

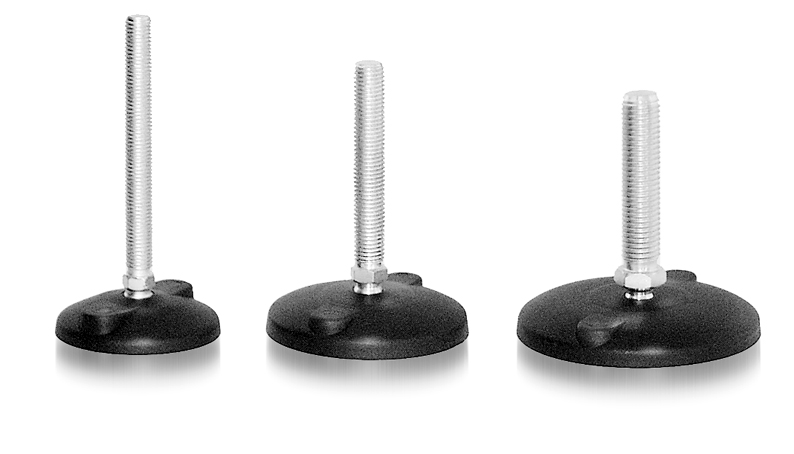

A swiveling leveling foot which can be fixed to the floor
Material:
Plastic PA, glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

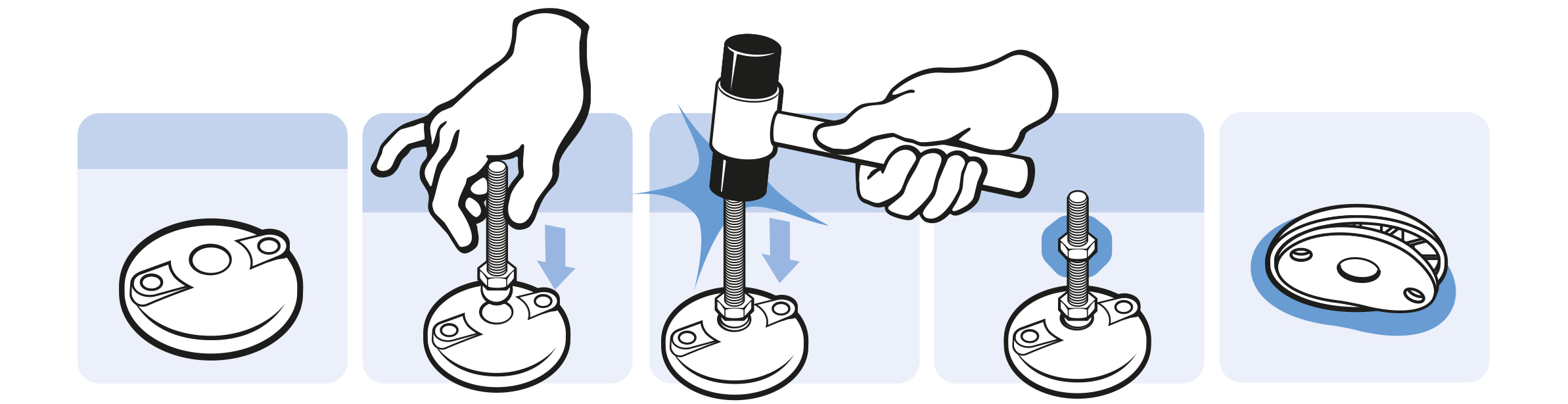

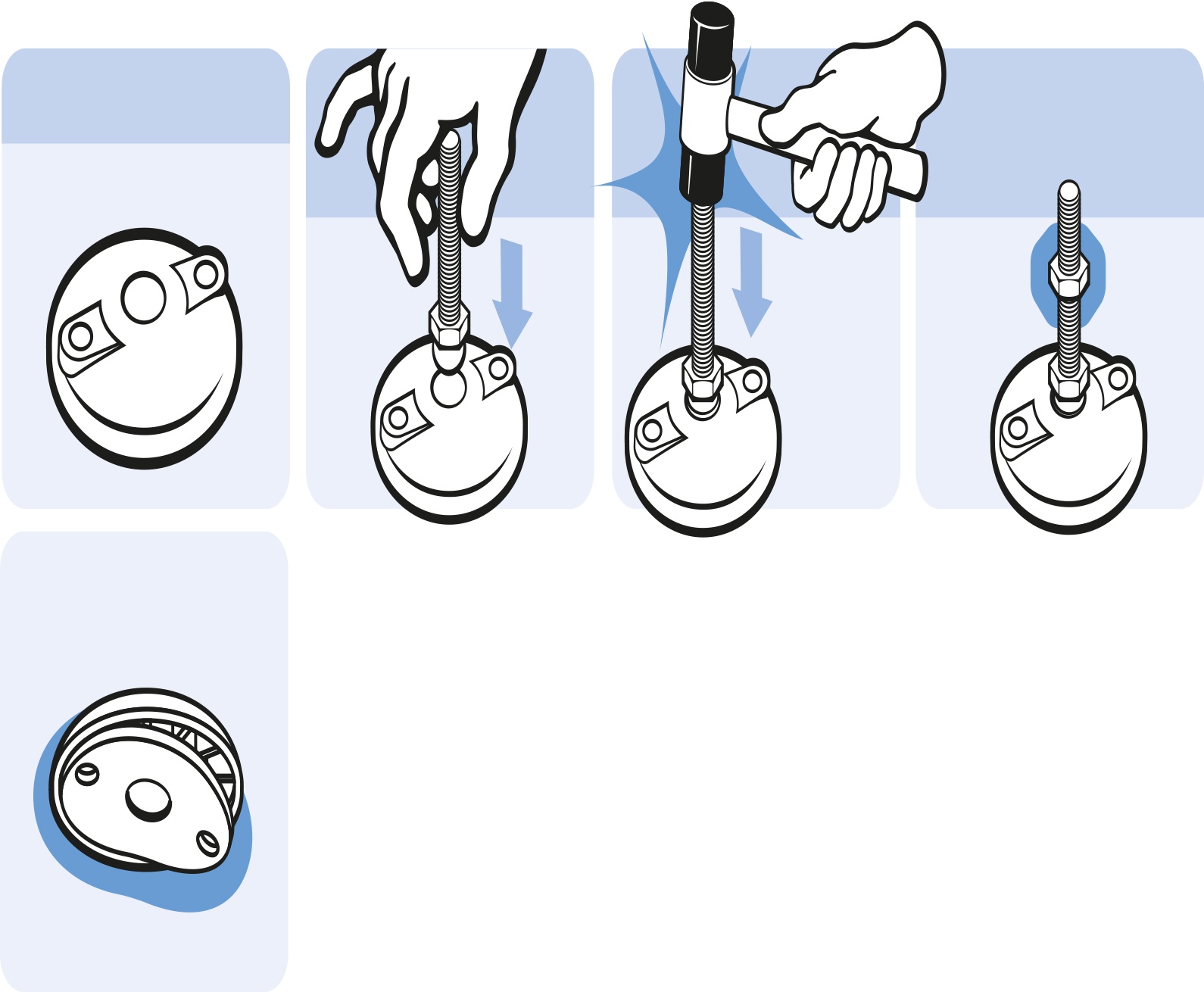

as factory assembled leveling foot on request
Tip:
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-slip Plate see 098DG030 et sq.;
* Bolt-down holes closed
Zolltarifnummer:
39269097900
Black
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot which can be fixed to the floor
Material:
Plastic PA, glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;
as factory assembled leveling foot on request
Tip:
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-slip Plate see 098DG030 et sq.;
* Bolt-down holes closed
Zolltarifnummer:
39269097900
Model: | Plastic PA, with bolt-down holes |
---|---|
Pack Quantity: | 10 pieces |
Weight (g): | 69.0 |
Variants

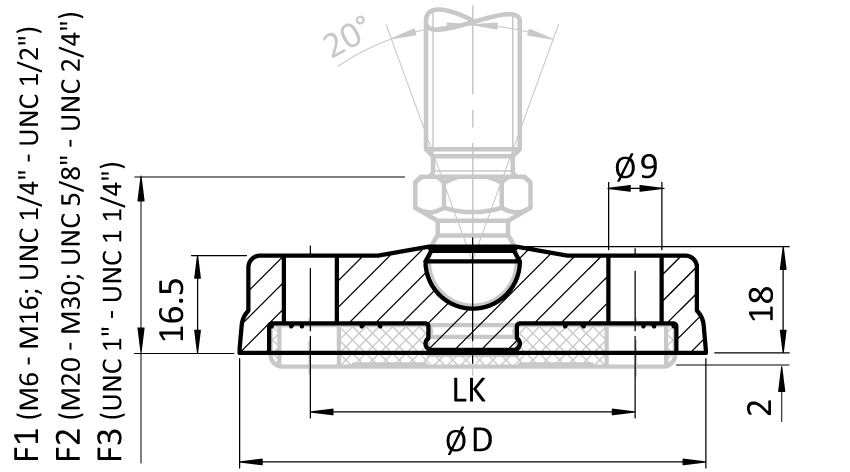

Product ID | F3 (mm) | F2 (mm) | D (mm) | LK (mm) | Base | F1 (mm) | Fmax (N) | Version |
---|---|---|---|---|---|---|---|---|
098D080KB | 33.5 | 32.5 | 79 | 55 | 80 | 29.5 | 8820 | without anti-slip plate |
098D080KBG | 33.5 | 32.5 | 79 | 55 | 80 | 29.5 | 8820 | with anti-slip plate |
098D080KBZ | 33.5 | 32.5 | 79 | 55 | *80 | 29.5 | 8820 | without anti-slip plate |
098D080KBZG | 33.5 | 32.5 | 79 | 55 | *80 | 29.5 | 8820 | with anti-slip plate |
098D100KB | 33.5 | 32.5 | 99 | 74 | 100 | 29.5 | 8820 | without anti-slip plate |
098D100KBG | 33.5 | 32.5 | 99 | 74 | 100 | 29.5 | 8820 | with anti-slip plate |
098D100KBZ | 33.5 | 32.5 | 99 | 74 | *100 | 29.5 | 8820 | without anti-slip plate |
098D100KBZG | 33.5 | 32.5 | 99 | 74 | *100 | 29.5 | 8820 | with anti-slip plate |
098D120KB | 33.5 | 32.5 | 119 | 94 | 120 | 29.5 | 8820 | without anti-slip plate |
098D120KBG | 33.5 | 32.5 | 119 | 94 | 120 | 29.5 | 8820 | with anti-slip plate |
098D120KBZ | 33.5 | 32.5 | 119 | 94 | *120 | 29.5 | 8820 | without anti-slip plate |
098D120KBZG | 33.5 | 32.5 | 119 | 94 | *120 | 29.5 | 8820 | with anti-slip plate |
