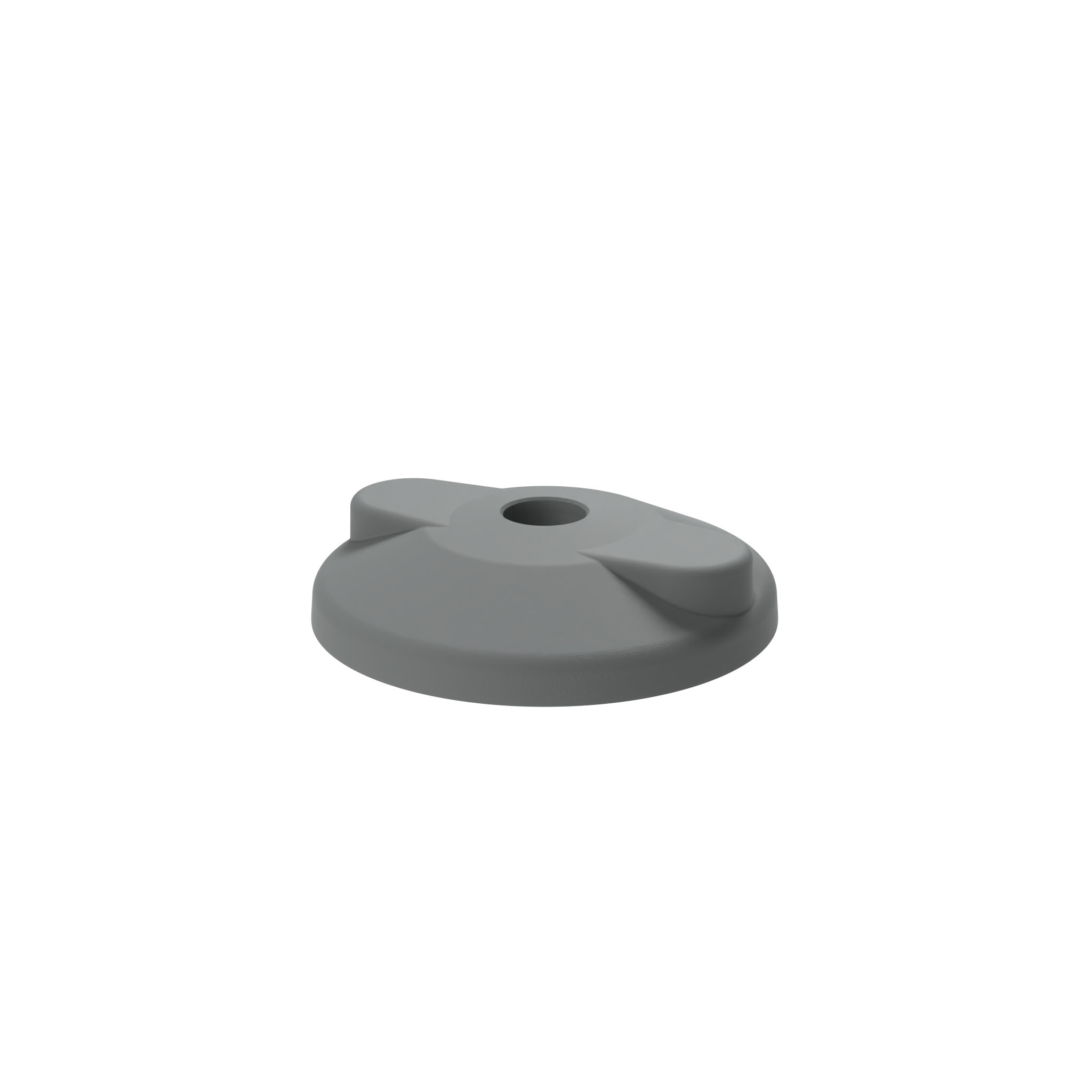

Base PA BDH for Swivel Feet, Ball Joint 15, Gray

Product information "Base PA BDH for Swivel Feet, Ball Joint 15, Gray"

Color:
Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

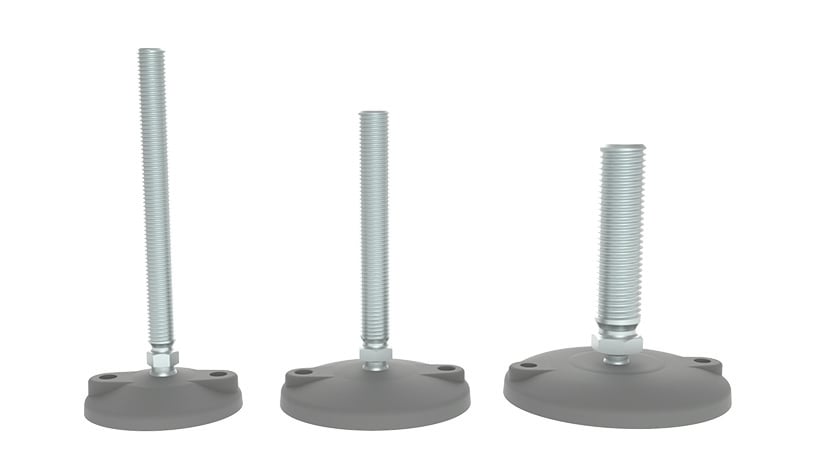

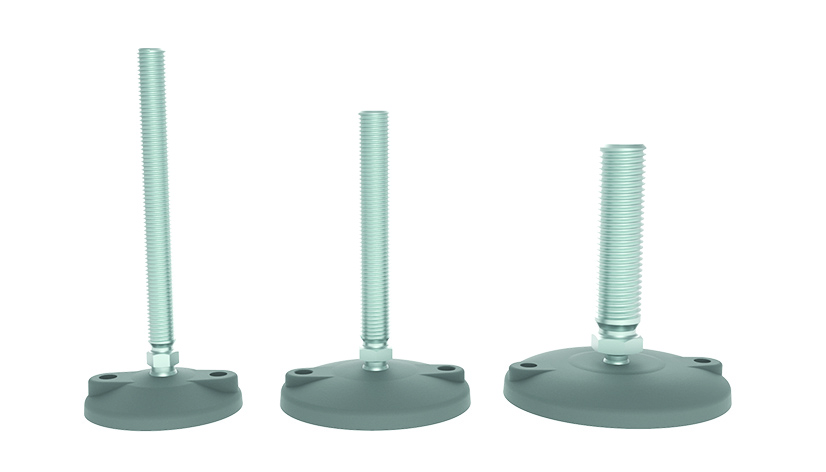

A swiveling leveling foot which can be fixed to the floor

Material:
Plastic PA, glass ball reinforced

Tip:
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-slip Plate see 098DG030 et sq.;
* Bolt-down holes closed

Zolltarifnummer:
39269097900
Model: Plastic PA, with bolt-down holes
Pack Quantity: 10 pieces
Weight (g): 46.0

Variants

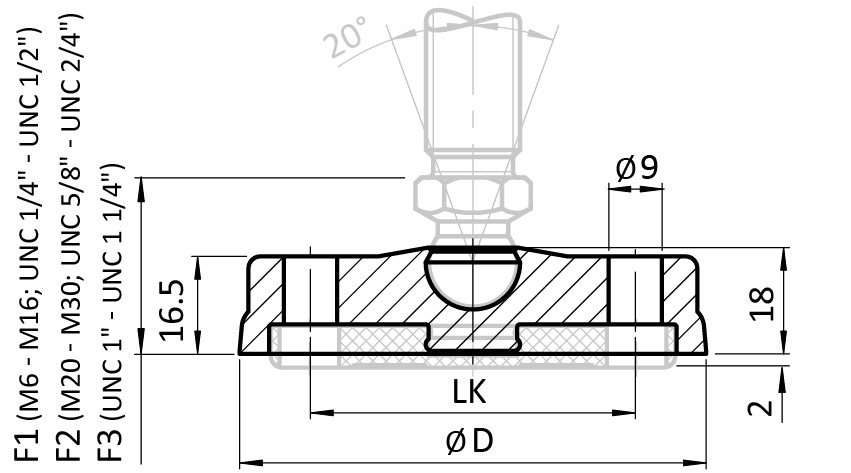

Product ID F3 (mm) F2 (mm) Version D (mm) LK (mm) F1 (mm) Fmax (N) Base
098D080KBS04 33.5 32.5 without anti-slip plate 79 55 29.5 8820 80
098D080KBZS04 33.5 32.5 without anti-slip plate 79 55 29.5 8820 *80
098D100KBS03 33.5 32.5 without anti-slip plate 99 74 29.5 8820 100
098D100KBZS02 33.5 32.5 without anti-slip plate 99 74 29.5 8820 *100
098D120KBS03 33.5 32.5 without anti-slip plate 119 94 29.5 8820 120
098D120KBZS01 33.5 32.5 without anti-slip plate 119 94 29.5 8820 *120
