Base PA BDH for Swivel Feet, Ball Joint 22

Product information "Base PA BDH for Swivel Feet, Ball Joint 22"

Color:
Black

Delivery Countries:
Worldwide

Description:

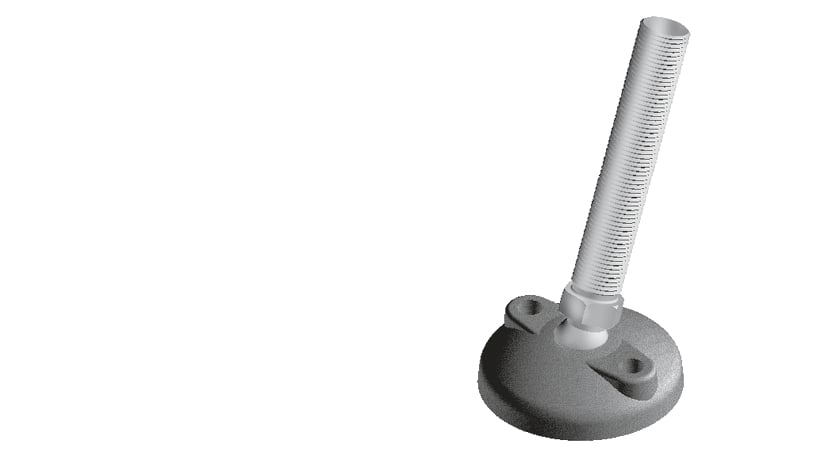

A swiveling leveling foot which can be fixed to the floor

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

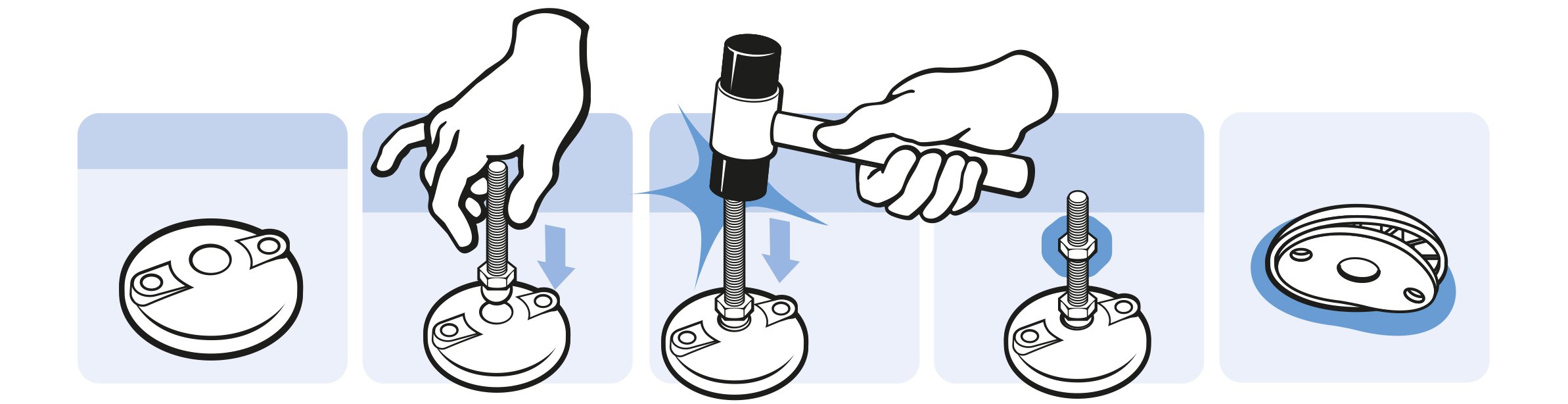

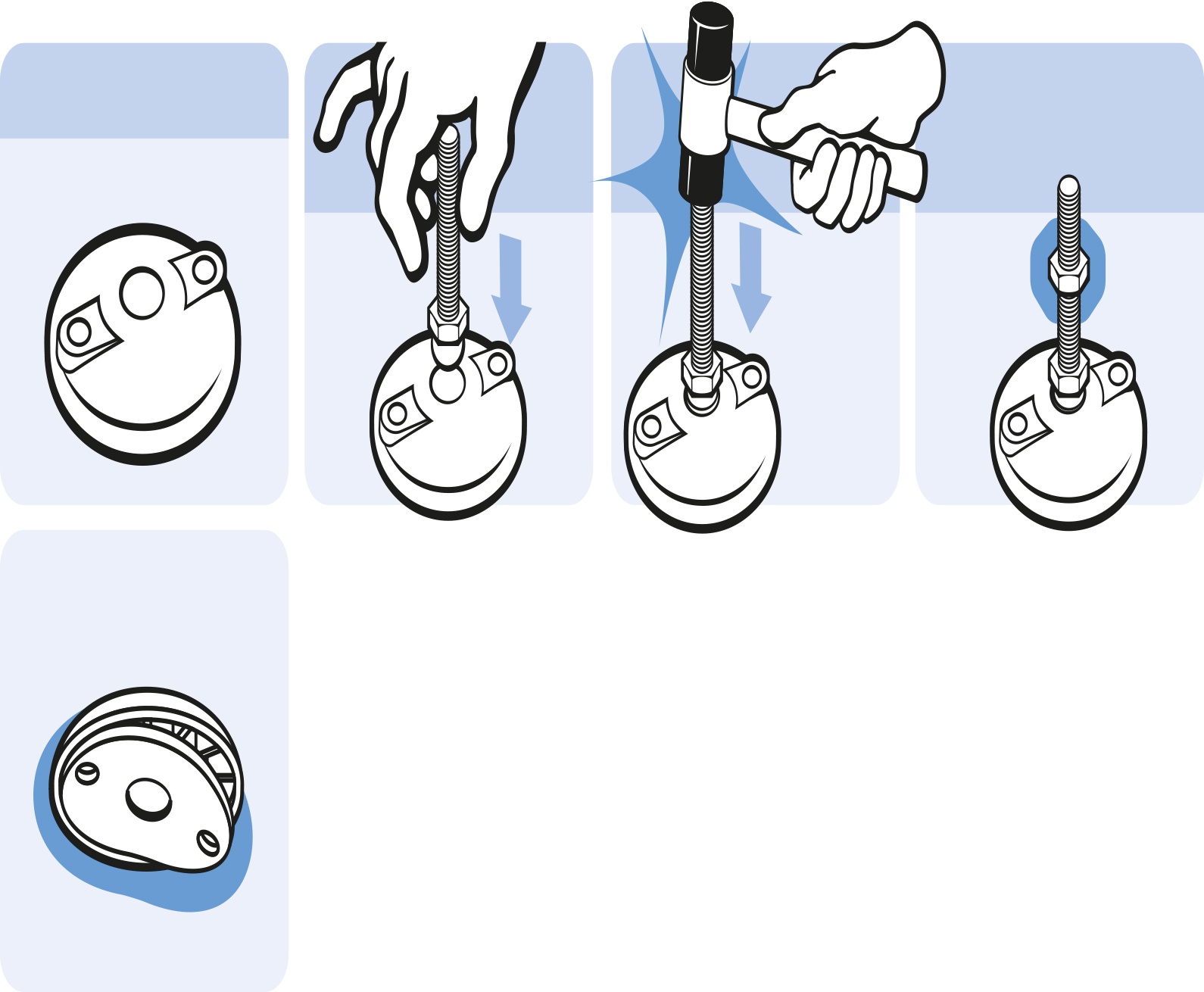

as factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098CM16066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate 098DG030;
* Bolt-down holes closed

Zolltarifnummer:
39269097900
Model: Plastic PA, with bolt-down holes
Pack Quantity: 10 pieces
Weight (g): 124.0

Variants

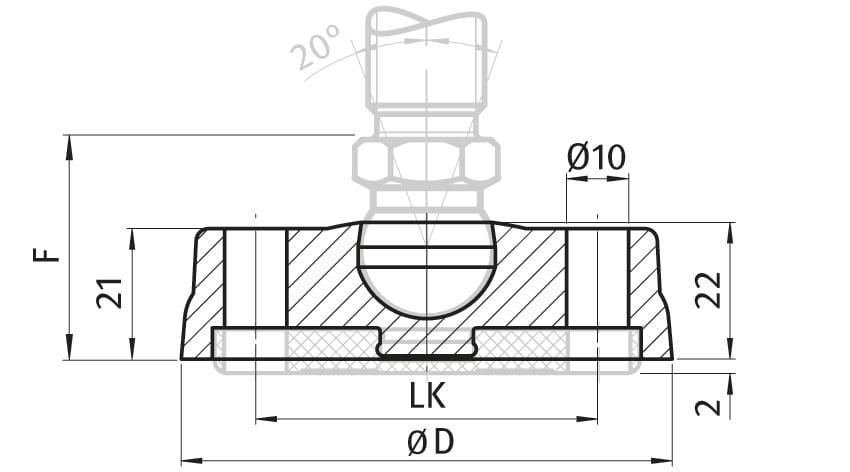

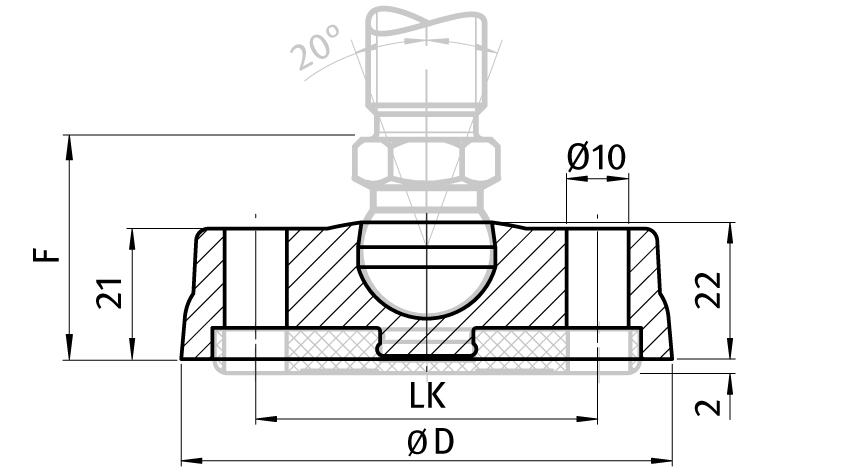

Product ID F (mm) Fmax (N) Version D (mm) LK (mm) Base
098C080KB 38.5 8820 without anti-slip plate 79 55 80
098C080KBG 38.5 8820 with anti-slip plate 79 55 80
098C080KBZ 38.5 8820 without anti-slip plate 79 55 *80
098C080KBZG 38.5 8820 with anti-slip plate 79 55 *80
098C100KB 38.5 8820 without anti-slip plate 99 74 100
098C100KBG 38.5 8820 with anti-slip plate 99 74 100
098C100KBZ 38.5 8820 without anti-slip plate 99 74 *100
098C100KBZG 38.5 8820 with anti-slip plate 99 74 *100
