Base PA for Heavy-duty Fixed Feet

Product information "Base PA for Heavy-duty Fixed Feet"

Color:
Black

Delivery Countries:
Worldwide

Description:

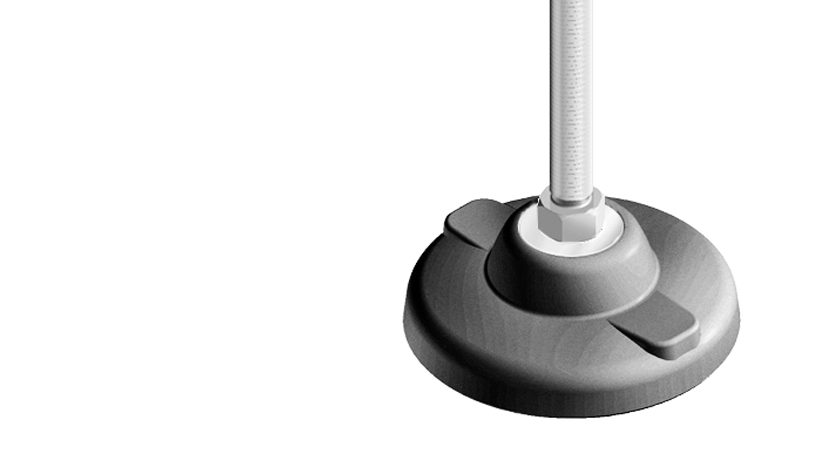

Leveling foot for a strong positioning of heavy machinery on the floor

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

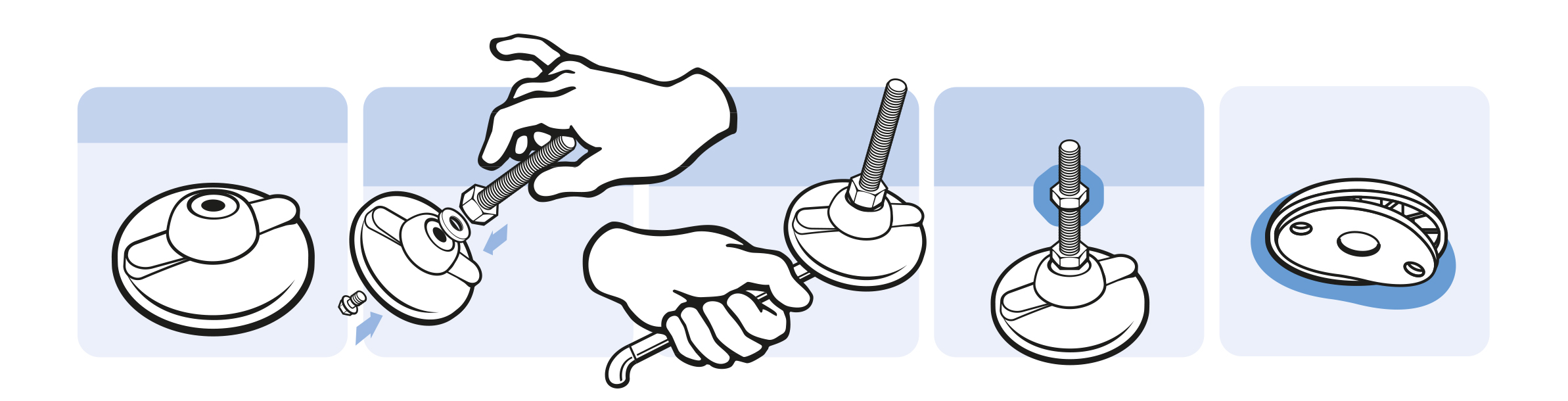

as factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098KM16100M,
Compatible Nut see 4DIN439BM5 et sq.
Compatible Anti-Slip Plate see 098AG125B

Zolltarifnummer:
39269097900
Model: Plastic PA, with bolt-down holes
Pack Quantity: 1 piece
Pack Quantity (1): 10
Weight (g): 250.0

Variants

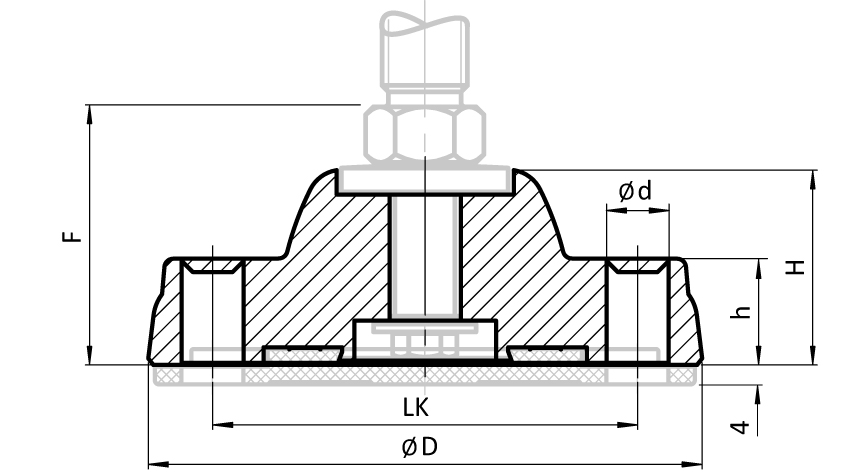

Product ID LK (mm) H (mm) F (mm) Fmax (N) Version D (mm) d (mm) h (mm) Base
098K125KBZ 96 44 57.5 17650 without anti-slip plate 125 14 24 125
098K125KBZG 96 44 57.5 17650 with anti-slip plate 125 14 24 125
098K175KBZ 135 45 58.5 24500 without anti-slip plate 175 17 22 175
