Base PA for Swivel Feet, Ball Joint 10
Product number:
098M020KG
Product information "Base PA for Swivel Feet, Ball Joint 10"
Color:
Black
Delivery Countries:
Worldwide
Description:

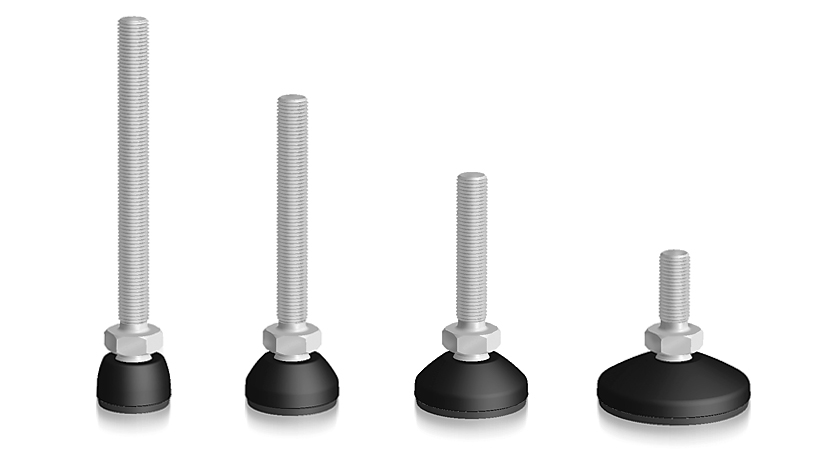

A swiveling leveling foot for strong positioning on uneven floors
Material:
Plastic PA, glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request;
As factory assembled leveling foot on request
Tip:

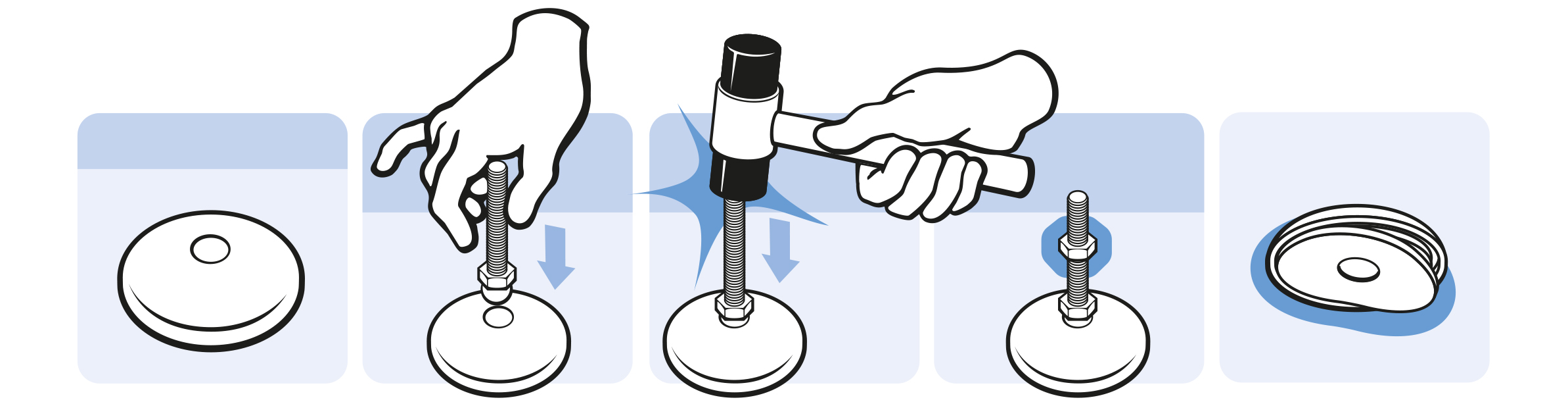

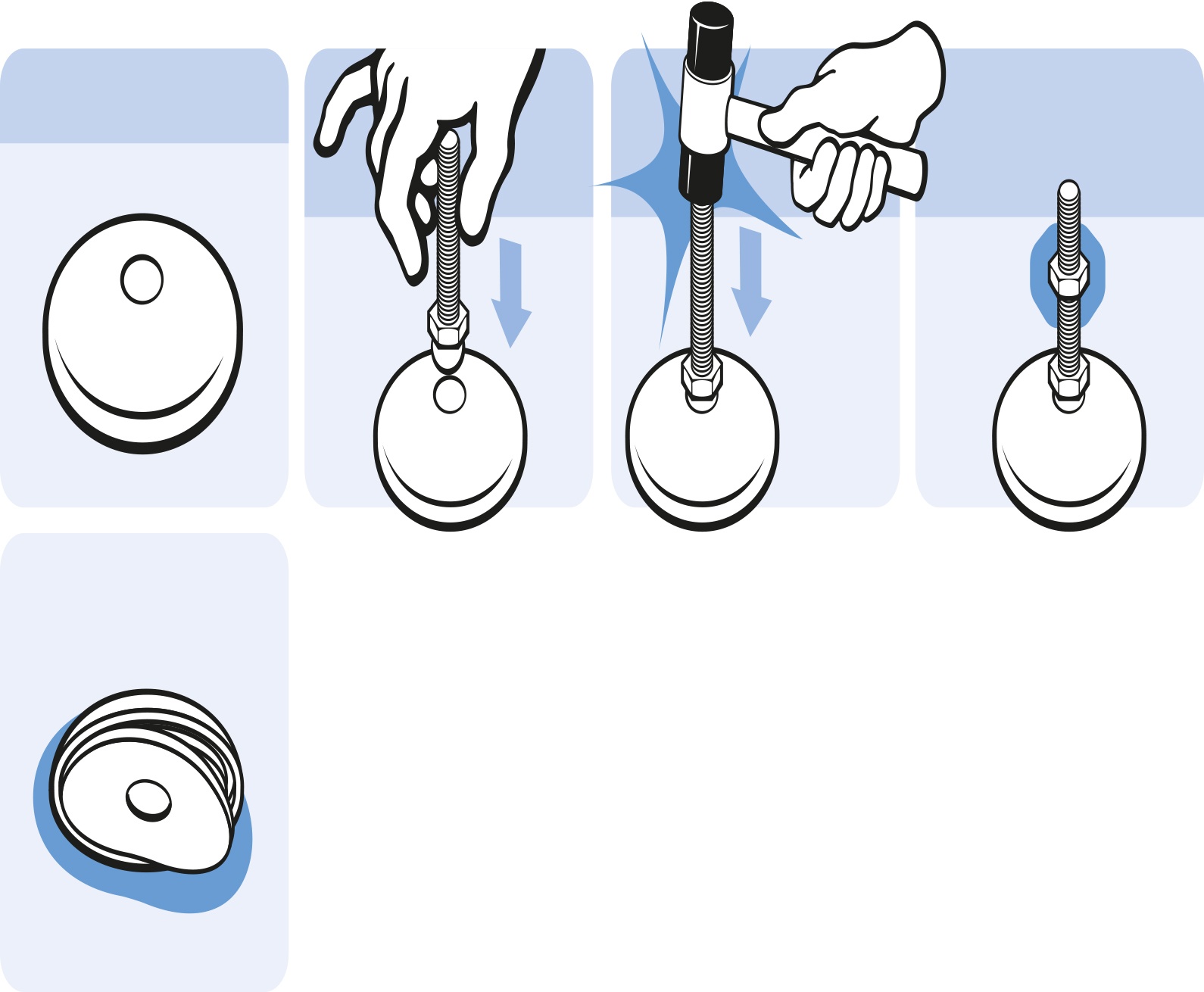

Compatible Threaded Rod see 098MM05020M et sq.,
Compatible Nut see 4DIN439BM5M et sq. und 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098MG020 et sq.
Zolltarifnummer:
39269097900
Black
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot for strong positioning on uneven floors
Material:
Plastic PA, glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request;
As factory assembled leveling foot on request
Tip:
Compatible Threaded Rod see 098MM05020M et sq.,
Compatible Nut see 4DIN439BM5M et sq. und 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098MG020 et sq.
Zolltarifnummer:
39269097900
Model: | Plastic PA, without bolt-down holes |
---|---|
Pack Quantity: | 10 pieces |
Weight (g): | 3.0 |
Variants

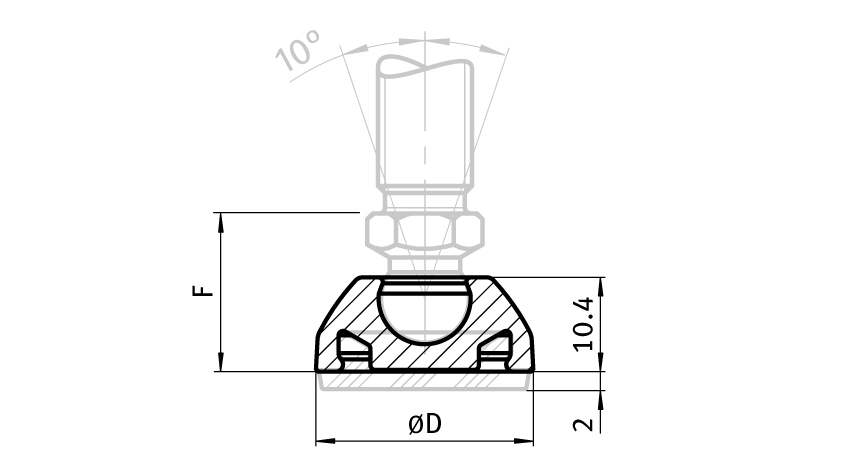

Product ID | Fmax (N) | D (mm) | Base | F (mm) | Version |
---|---|---|---|---|---|
098M020K | 980 | 19 | 20 | 17.5 | without anti-slip plate |
098M020KG | 980 | 19 | 20 | 17.5 | with anti-slip plate |
098M025K | 1960 | 24 | 25 | 17.5 | without anti-slip plate |
098M025KG | 1960 | 24 | 25 | 17.5 | with anti-slip plate |
098M030K | 3430 | 29 | 30 | 17.5 | without anti-slip plate |
098M030KG | 3430 | 29 | 30 | 17.5 | with anti-slip plate |
098M040K | 4900 | 39 | 40 | 17.5 | without anti-slip plate |
098M040KG | 4900 | 39 | 40 | 17.5 | with anti-slip plate |
