Base PA for Swivel Feet, Ball Joint 15, Black

Product information "Base PA for Swivel Feet, Ball Joint 15, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

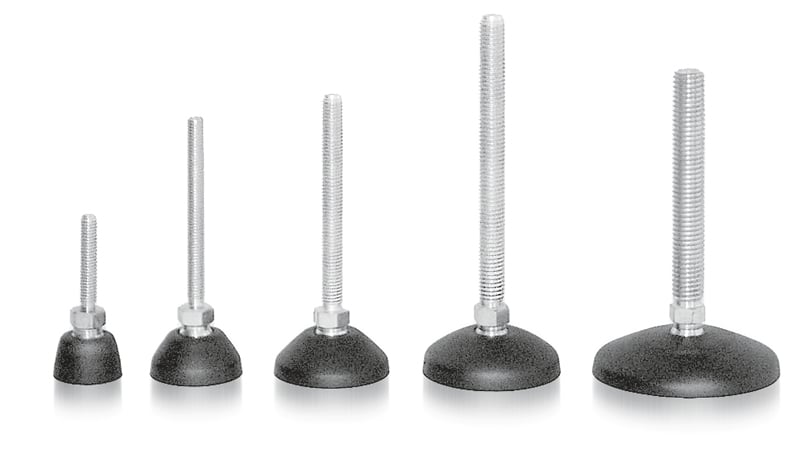

A swiveling leveling foot for strong positioning on uneven floors

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

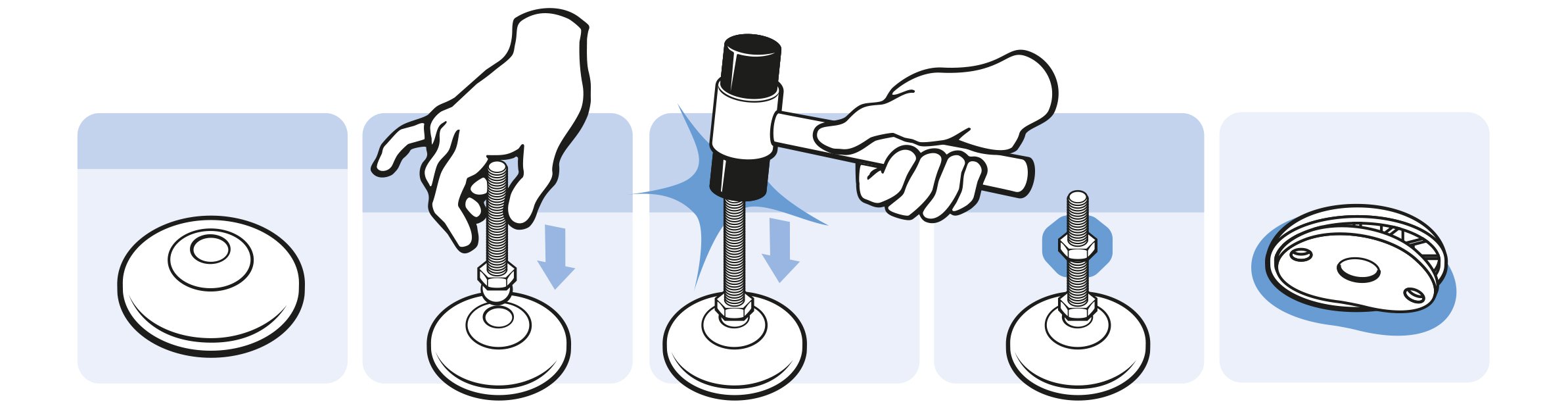

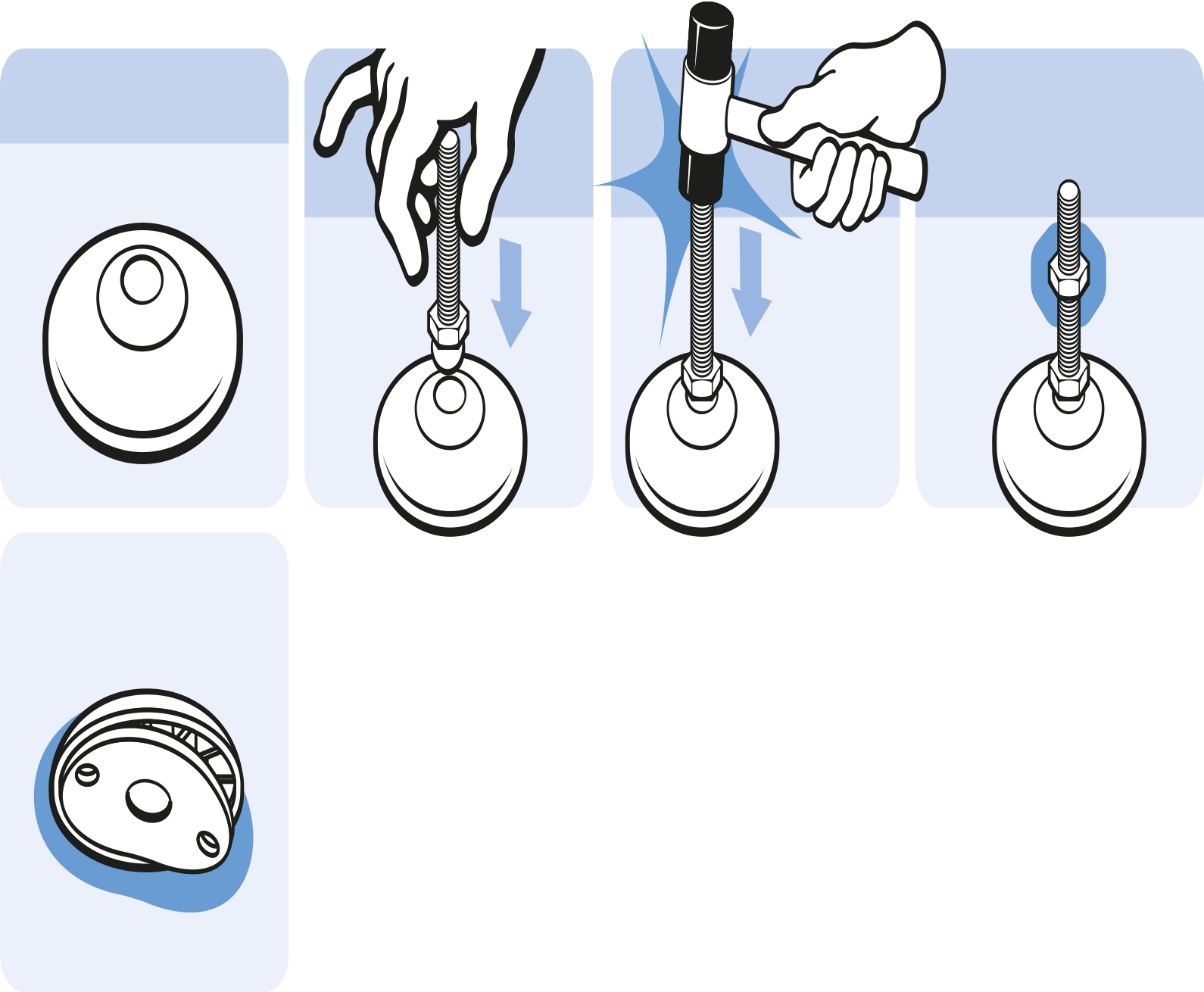

as factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.

Zolltarifnummer:
39269097900
Model: Plastic PA, without bolt-down holes
Pack Quantity: 10 pieces
Weight (g): 24.0

Variants

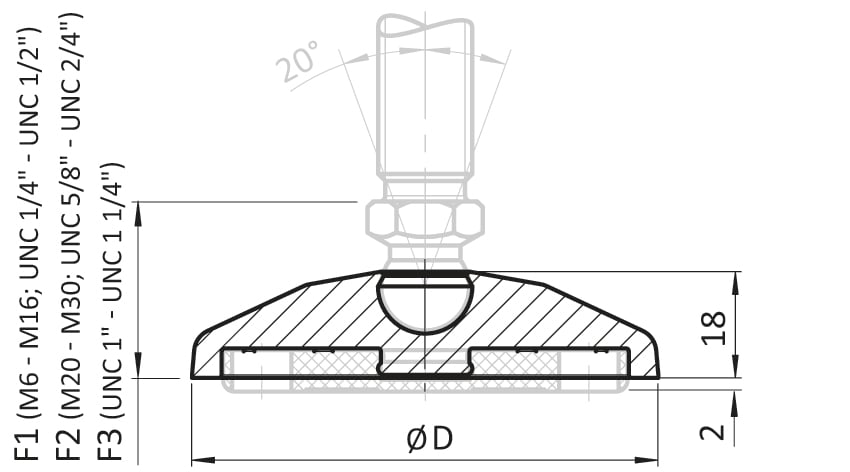

Product ID F3 (mm) F2 (mm) F1 (mm) Version D (mm) Fmax (N) Base
098D030K 33.5 32.5 29.5 without anti-slip plate 29 4900 30
098D030KG 33.5 32.5 29.5 with anti-slip plate 29 4900 30
098D040K 33.5 32.5 29.5 without anti-slip plate 39 8820 40
098D040KG 33.5 32.5 29.5 with anti-slip plate 39 8820 40
098D045K 33.5 32.5 29.5 without anti-slip plate 44 8820 45
098D045KG 33.5 32.5 29.5 with anti-slip plate 44 8820 45
098D050K 33.5 32.5 29.5 without anti-slip plate 49 8820 50
098D050KG 33.5 32.5 29.5 with anti-slip plate 49 8820 50
098D060K 33.5 32.5 29.5 without anti-slip plate 59 8820 60
098D060KG 33.5 32.5 29.5 with anti-slip plate 59 8820 60
098D080K 33.5 32.5 29.5 without anti-slip plate 79 8820 80
098D080KG 33.5 32.5 29.5 with anti-slip plate 79 8820 80
098D100K 33.5 32.5 29.5 without anti-slip plate 99 8820 100
098D100KG 33.5 32.5 29.5 with anti-slip plate 99 8820 100
