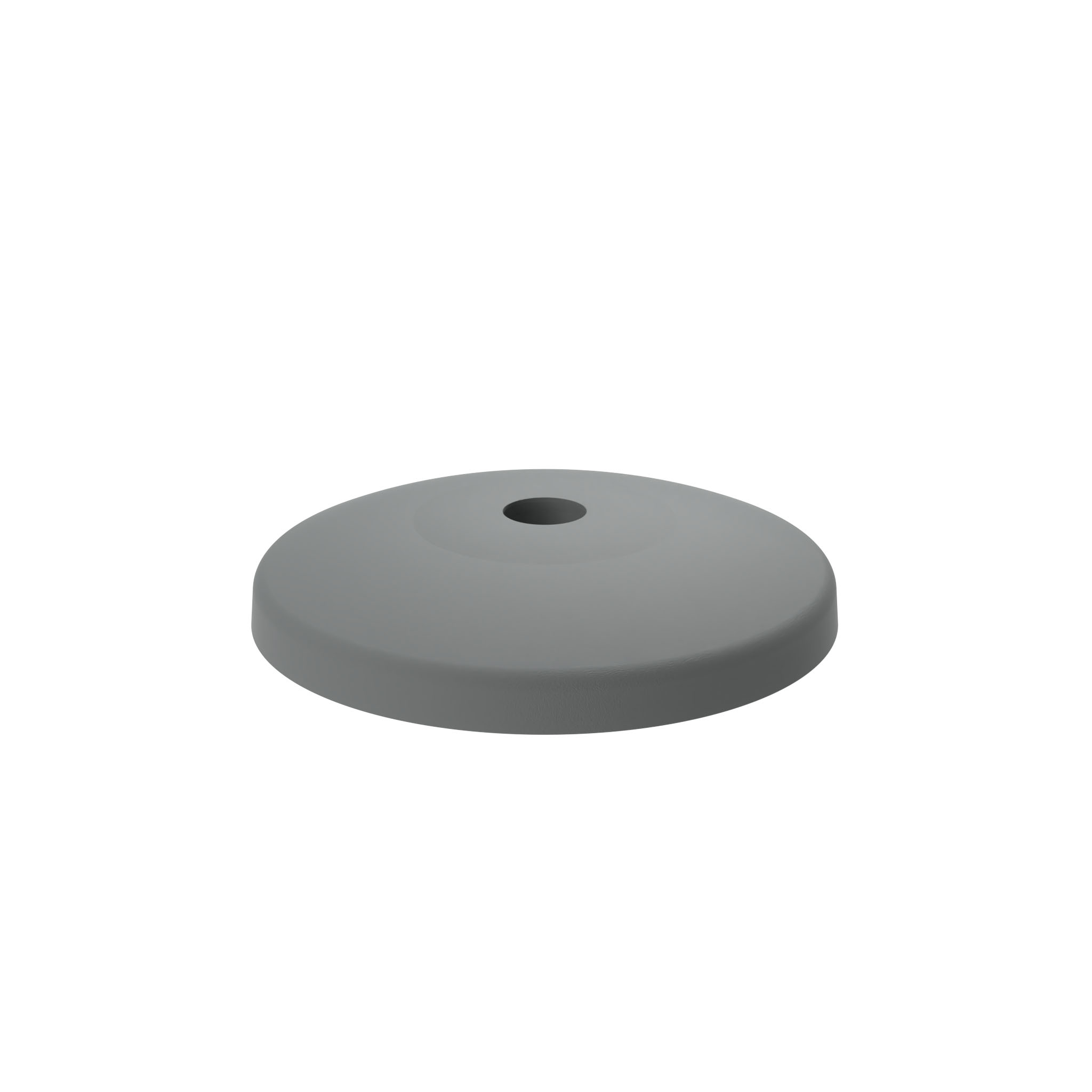

Base PA for Swivel Feet, Ball Joint 15, Gray
Product number:
098D100KS03
Product information "Base PA for Swivel Feet, Ball Joint 15, Gray"
Color:
Gray ≈ RAL 7042
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot for strong positioning on uneven floors
Material:
Plastic PA, glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

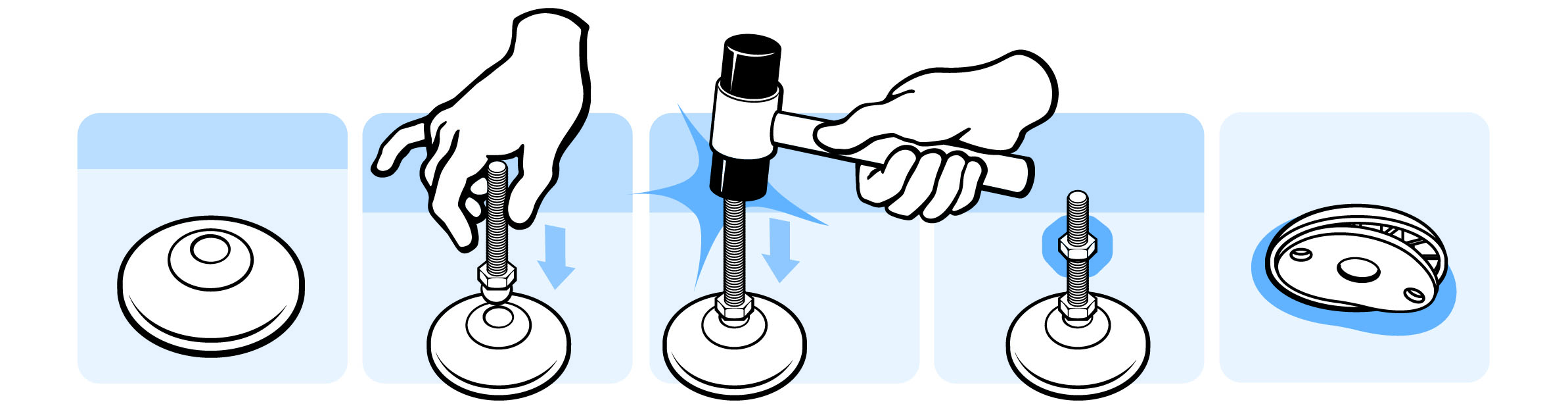

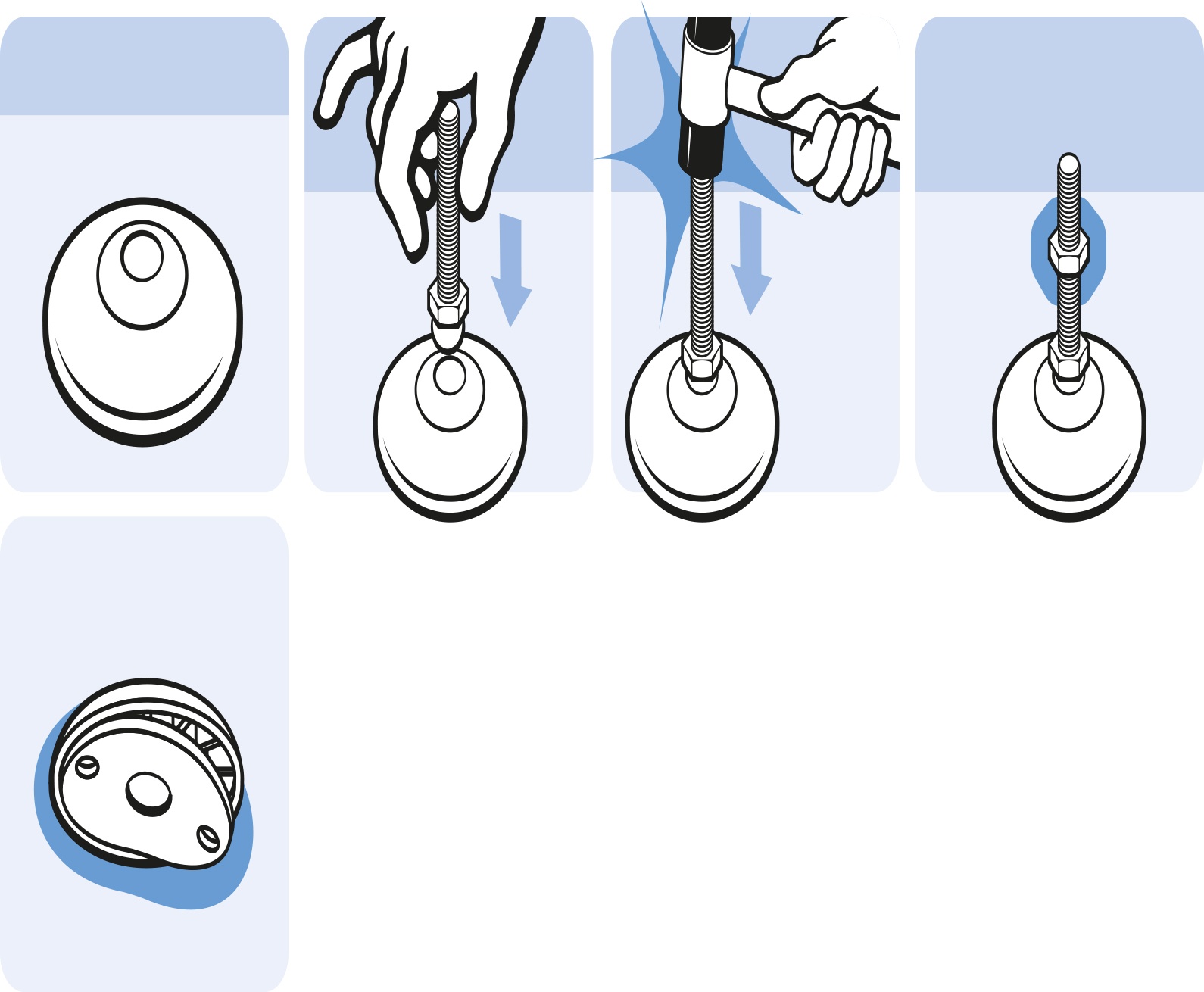

as factory assembled leveling foot on request
Tip:
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
Zolltarifnummer:
39269097900
Gray ≈ RAL 7042
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot for strong positioning on uneven floors
Material:
Plastic PA, glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;
as factory assembled leveling foot on request
Tip:
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
Zolltarifnummer:
39269097900
Model: | Plastic PA, without bolt-down holes |
---|---|
Pack Quantity: | 10 pieces |
Weight (g): | 84.0 |
Variants

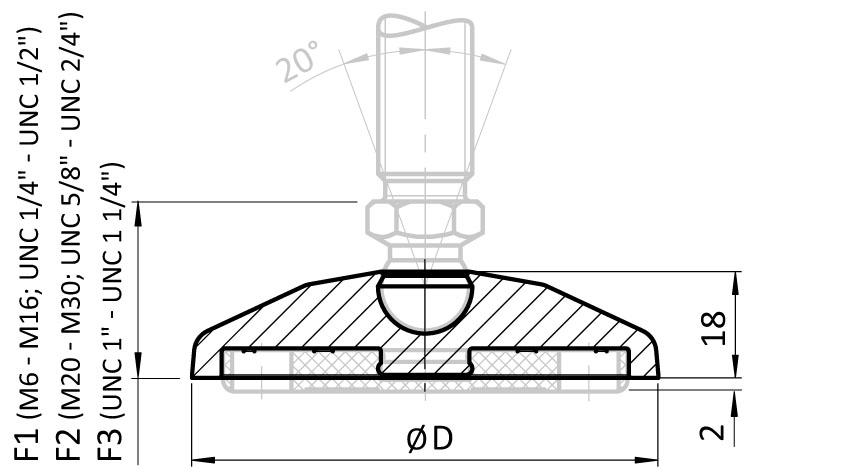

Product ID | F3 (mm) | F2 (mm) | Version | F1 (mm) | D (mm) | Fmax (N) | Base |
---|---|---|---|---|---|---|---|
098D030KS04 | 33.5 | 32.5 | without anti-slip plate | 29.5 | 29 | 4900 | 30 |
098D040KS06 | 33.5 | 32.5 | without anti-slip plate | 29.5 | 39 | 8820 | 40 |
098D045KS03 | 33.5 | 32.5 | without anti-slip plate | 29.5 | 44 | 8820 | 45 |
098D050KS04 | 33.5 | 32.5 | without anti-slip plate | 29.5 | 49 | 8820 | 50 |
098D060KS04 | 33.5 | 32.5 | without anti-slip plate | 29.5 | 59 | 8820 | 60 |
098D080KS06 | 33.5 | 32.5 | without anti-slip plate | 29.5 | 79 | 8820 | 80 |
098D100KS03 | 33.5 | 32.5 | without anti-slip plate | 29.5 | 99 | 8820 | 100 |
