Base PA for Swivel Feet, Ball Joint 22

Product information "Base PA for Swivel Feet, Ball Joint 22"

Color:
Black

Delivery Countries:
Worldwide

Description:

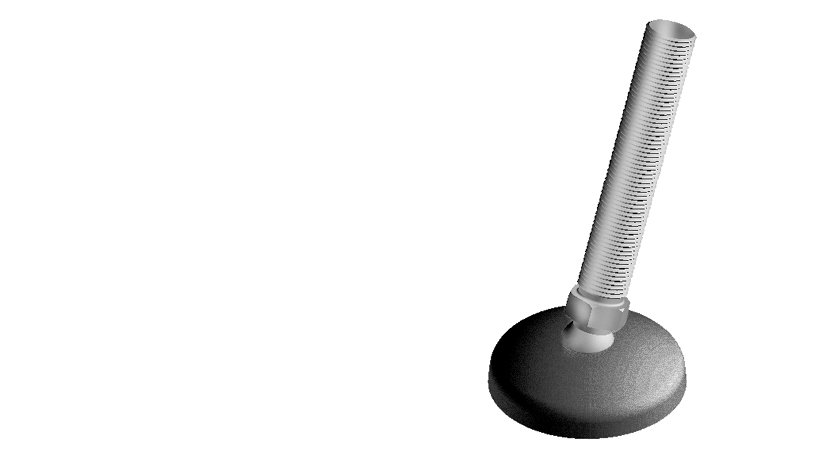

A swiveling leveling foot for strong positioning on uneven floors

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;
as factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098CM16066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-slip Plate 098DG030

Zolltarifnummer:
39269097900
Model: Plastic PA, without bolt-down holes
Pack Quantity: 10 pieces
Weight (g): 39.5

Variants

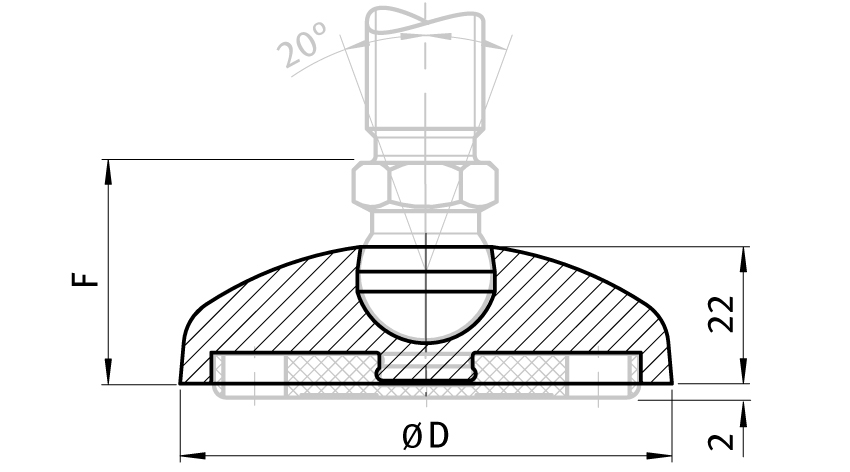

Product ID F (mm) Base Fmax (N) D (mm) Version
098C060K 38.5 60 8820 59 without anti-slip plate
098C060KG 38.5 60 8820 59 with anti-slip plate
098C080K 38.5 80 8820 79 without anti-slip plate
098C080KG 38.5 80 8820 79 with anti-slip plate
098C100K 38.5 100 8820 99 without anti-slip plate
098C100KG 38.5 100 8820 99 with anti-slip plate
