Base SS BDH for Swivel Feet, Ball Joint 15
Product number:
098D080EBG
Product information "Base SS BDH for Swivel Feet, Ball Joint 15"
Delivery Countries:
Worldwide
Description:

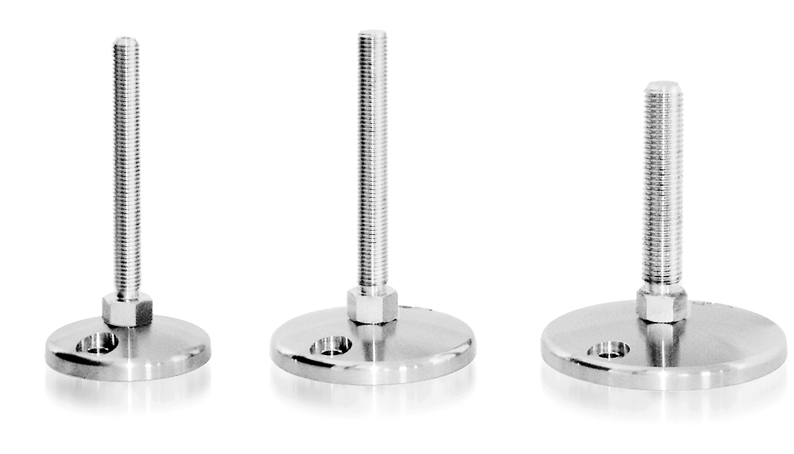

A swiveling leveling foot which can be fixed to the floor
Material:
Stainless steel SS303
Specials:
Other sizes, glued anti-slip plate on request;

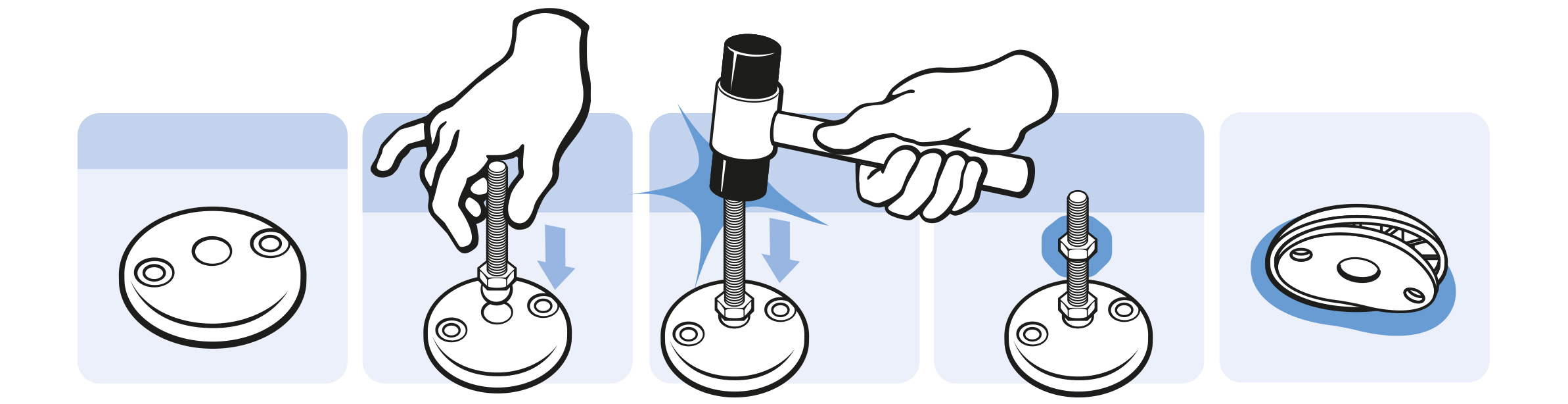

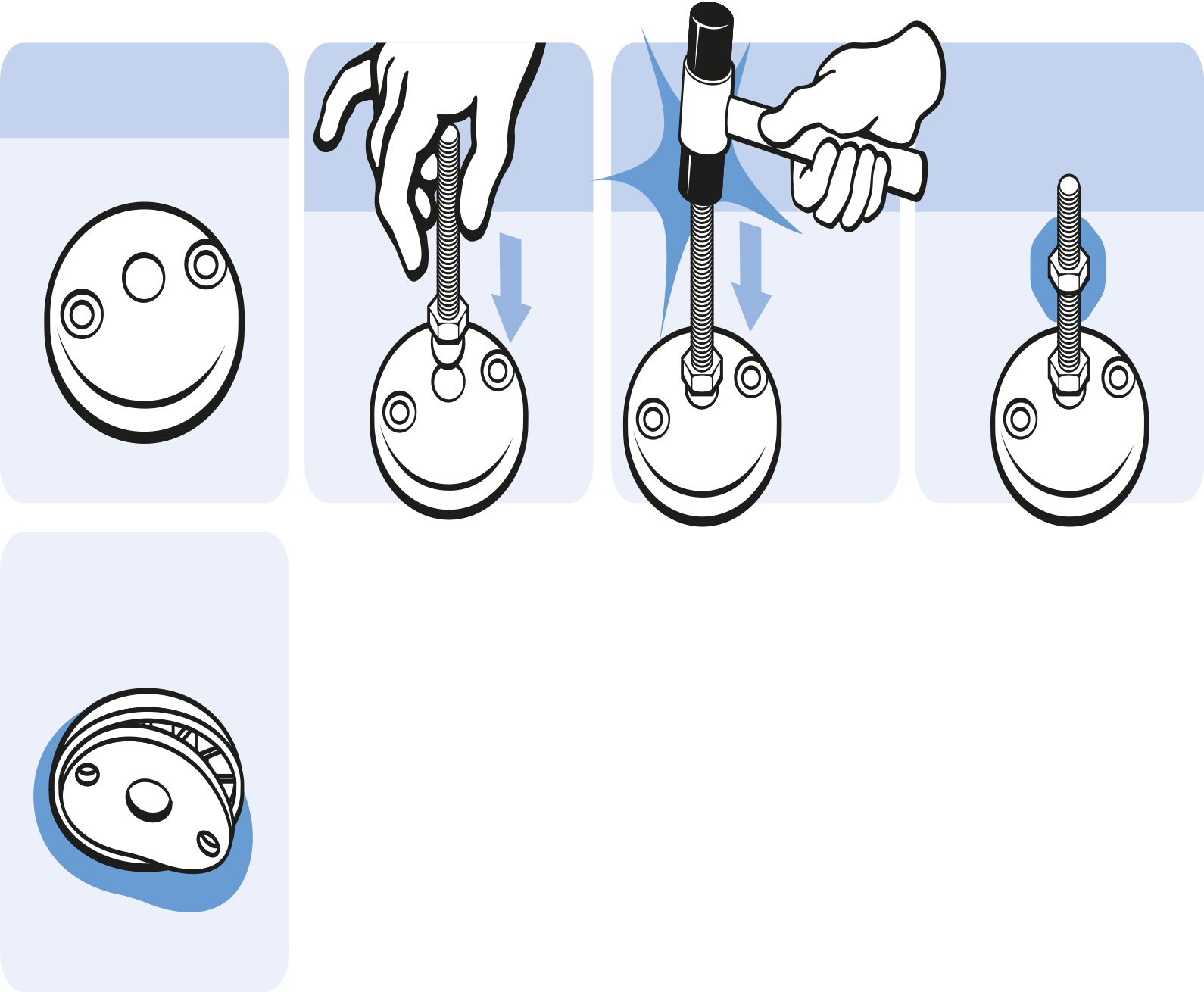

As factory assembled leveling foot on request
Surface:
Plain
Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030
Zolltarifnummer:
73269098900
Worldwide
Description:
A swiveling leveling foot which can be fixed to the floor
Material:
Stainless steel SS303
Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request
Surface:
Plain
Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030
Zolltarifnummer:
73269098900
Model: | Stainless steel, with bolt-down holes |
---|---|
Pack Quantity: | 10 pieces |
Weight (g): | 377.0 |
Variants

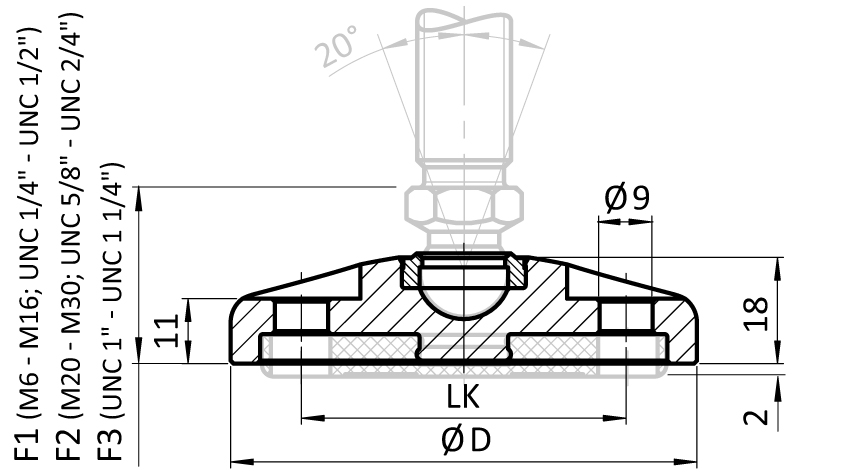

Product ID | F3 (mm) | F2 (mm) | D (mm) | LK (mm) | Fmax (N) | Base | F1 (mm) | Version |
---|---|---|---|---|---|---|---|---|
098D080EB | 33.5 | 32.5 | 79 | 55 | 29400 | 80 | 29.5 | without anti-slip plate |
098D080EBG | 33.5 | 32.5 | 79 | 55 | 29400 | 80 | 29.5 | with anti-slip plate |
098D100EB | 33.5 | 32.5 | 99 | 74 | 39200 | 100 | 29.5 | without anti-slip plate |
098D100EBG | 33.5 | 32.5 | 99 | 74 | 39200 | 100 | 29.5 | with anti-slip plate |
098D120EB | 33.5 | 32.5 | 119 | 94 | 39200 | 120 | 29.5 | without anti-slip plate |
098D120EBG | 33.5 | 32.5 | 119 | 94 | 39200 | 120 | 29.5 | with anti-slip plate |
