Base ZN for Swivel Feet, Ball Joint 15

Product information "Base ZN for Swivel Feet, Ball Joint 15"

Color:
Black

Delivery Countries:
Worldwide

Description:

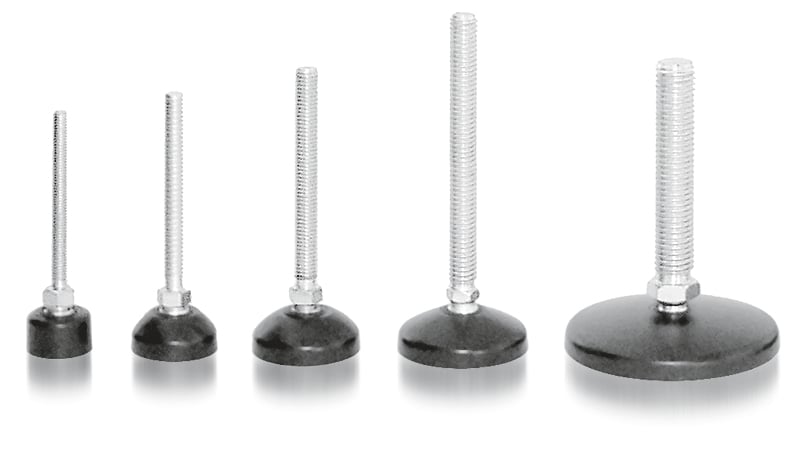

A swiveling leveling foot for strong positioning on uneven floors

Material:
Zinc die-cast

Specials:
Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request;
As factory assembled leveling foot on request

Surface:
Powder coated

Tip:
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
Customs Tariff Number Export: 79070000
Model: Zinc die-cast, without bolt-down holes
Pack Quantity: 10 pieces
Pack Quantity (1): 1
Weight (g): 160.0
Zolltarifnummer: 79070000900
pA Number: 103915

Variants

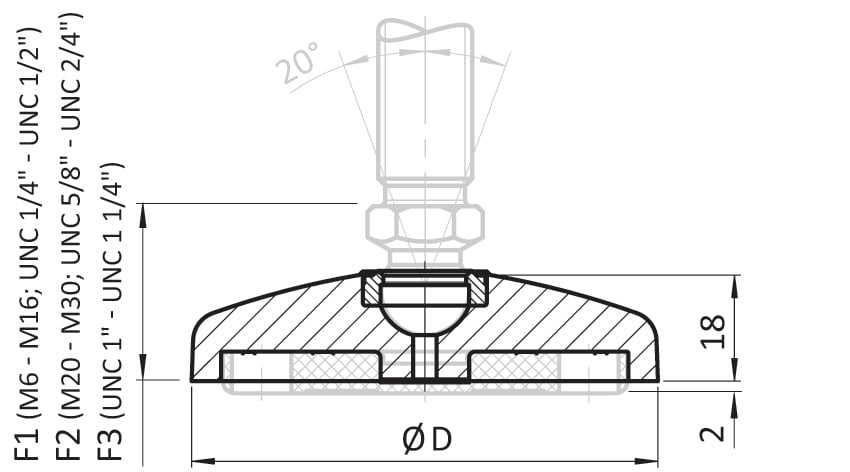

Product ID F3 (mm) F2 (mm) Version F1 (mm) D (mm) Base Fmax (N)
098D030ZS 33.5 32.5 without anti-slip plate 29.5 29 30 19600
098D030ZSG 33.5 32.5 with anti-slip plate 29.5 29 30 19600
098D040ZS 33.5 32.5 without anti-slip plate 29.5 39 40 29400
098D040ZSG 33.5 32.5 with anti-slip plate 29.5 39 40 29400
098D045ZS 33.5 32.5 without anti-slip plate 29.5 44 45 29400
098D045ZSG 33.5 32.5 with anti-slip plate 29.5 44 45 29400
098D050ZS 33.5 32.5 without anti-slip plate 29.5 49 50 29400
098D050ZSG 33.5 32.5 with anti-slip plate 29.5 49 50 29400
098D060ZS 33.5 32.5 without anti-slip plate 29.5 59 60 29400
098D060ZSG 33.5 32.5 with anti-slip plate 29.5 59 60 29400
098D080ZS 33.5 32.5 without anti-slip plate 29.5 79 80 29400
098D080ZSG 33.5 32.5 with anti-slip plate 29.5 79 80 29400
098D100ZS 33.5 32.5 without anti-slip plate 29.5 99 100 34300
098D100ZSG 33.5 32.5 with anti-slip plate 29.5 99 100 34300
098D120ZS 33.5 32.5 without anti-slip plate 29.5 119 120 34300
098D120ZSG 33.5 32.5 with anti-slip plate 29.5 119 120 34300
