Base for Duck Feet M20

Product information "Base for Duck Feet M20"

Delivery Countries:
Worldwide

Description:

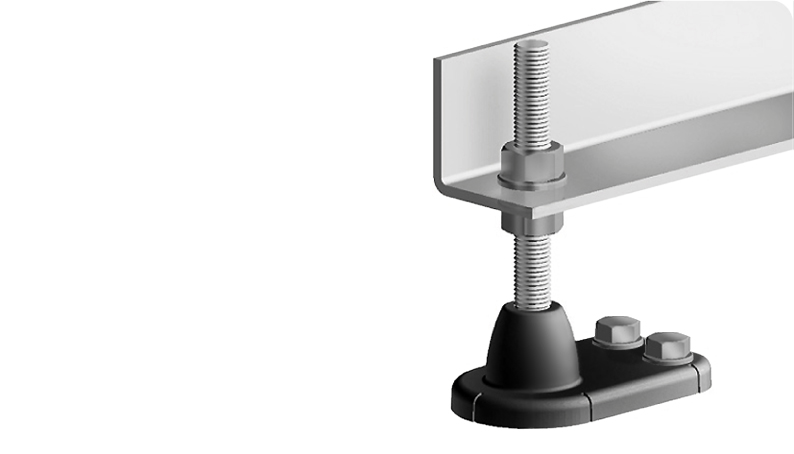

A strong and cost efficient leveling foot commonly used for conveyor systems

Material:
Aluminum die-cast

Surface:
Plain

Tip:
Compatible Cover Caps see 098F01, please use 1 piece out of this set
Model: Aluminum die-cast
Pack Quantity: 10 pieces
Customs Tariff Number Export: 76169910
Weight (g): 456.2
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
ERP Number: 104774
Zolltarifnummer: 76169910990

Variants

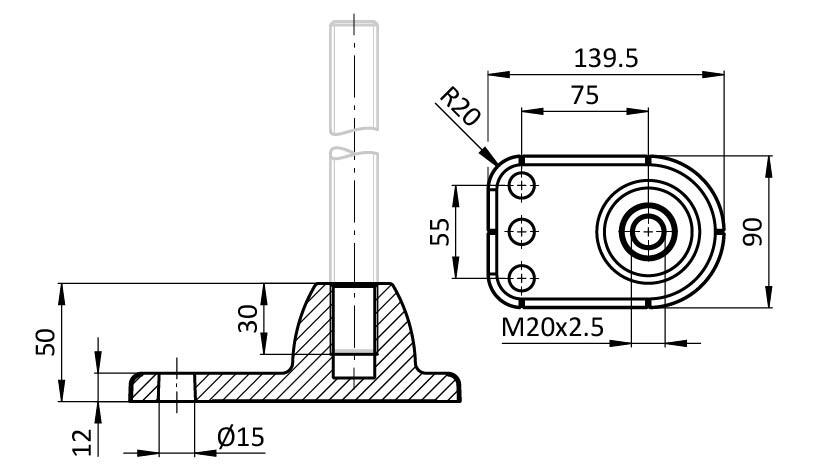

Part # A (mm) C (mm) L x B x H (mm) M
098F20090A 75 55 139.5 x 90 x 50 M20
