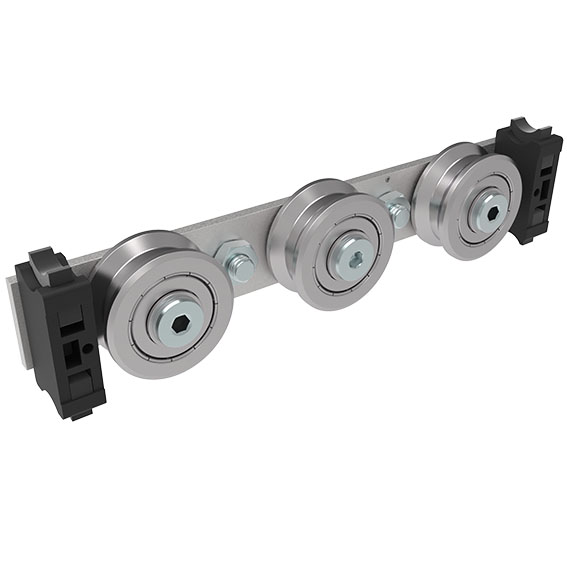

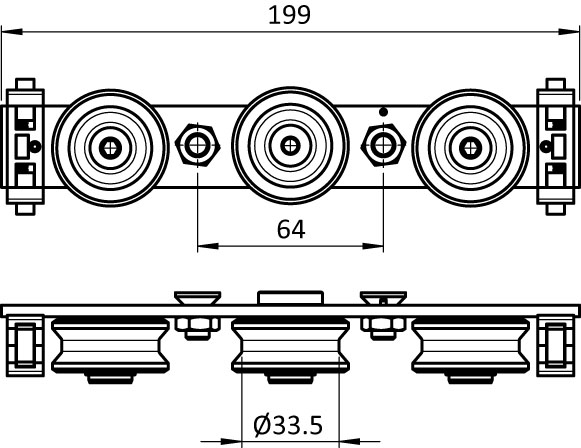

Bearing Kit 3 Rollers Shaft Ø 14 for C-slide Profile I (Set)

Product information "Bearing Kit 3 Rollers Shaft Ø 14 for C-slide Profile I (Set)"

Color:
Wiper and lubricators: Black

Delivery Countries:
Worldwide

Description:

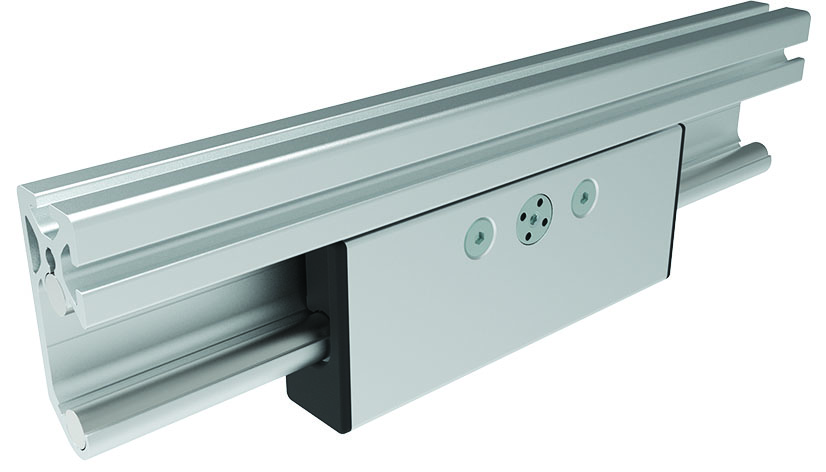

For the construction of bearing units, assembly with machining to C-slide profile I
To linearly guide loads, steel rollers with ball bearings runs directly on shaft Ø 14 mm

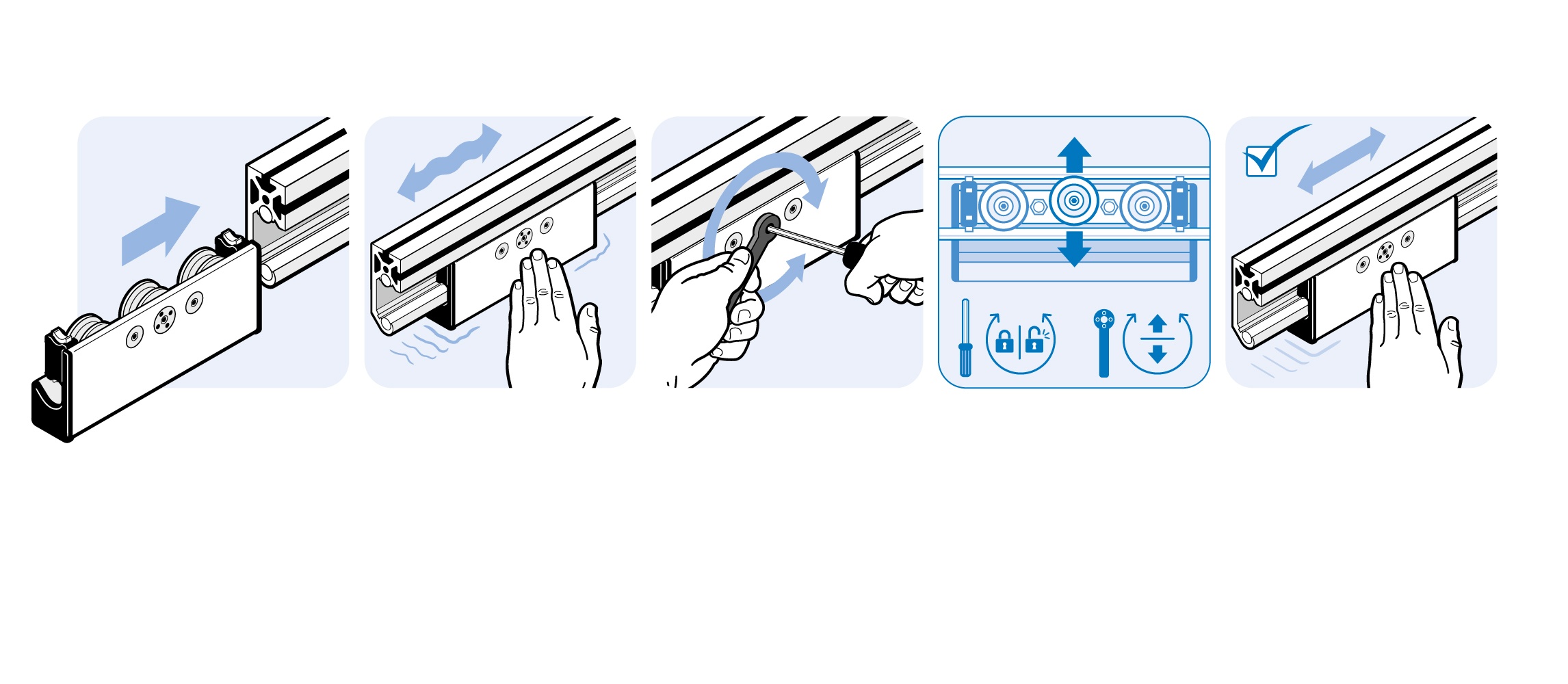

To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washer

Material:
Rollers: Steel
Carrier plate: Steel
Screws: Steel
Threaded sleeves: Steel
Press nuts: Steel
Excentric screw: Steel
Adjusting washer: Steel
Tension pin: Steel
Wiper and lubricators: Plastic PA / felt / spring steel
Wood screws: Steel

Set:
3 rollers
1 carrier plate
3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16
2 threaded sleeve - M8
2 press nuts - M8
1 excentric screw M8
1 adjusting washer - M8
1 tension pin
2 wiper and lubricators
2 wood screws - 3.5 x 20

Surface:
Rollers: Zinc plated
Carrier plate: Zinc plated
Screws: Zinc plated
Threaded sleeves: Zinc plated
Press nuts: Zinc plated
Excentric screw: Zinc plated
Adjusting washer: Zinc plated
Tension pin: Zinc plated
Wood screws: Zinc plated

Tip:
Compatible Cover Cap for C-slide Profile I (Set) see 091401S01
Ready Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA208S01

Zolltarifnummer:
84832000000
Model: Pre-assembled, steel
Pack Quantity: 1 set
Weight (g): 274.2

Variants

Product ID Profile
093CID14S199S01 I
