Bell Foot
Product number:
9AB045M12160MN
Product information "Bell Foot"
Delivery Countries:
Worldwide
Description:

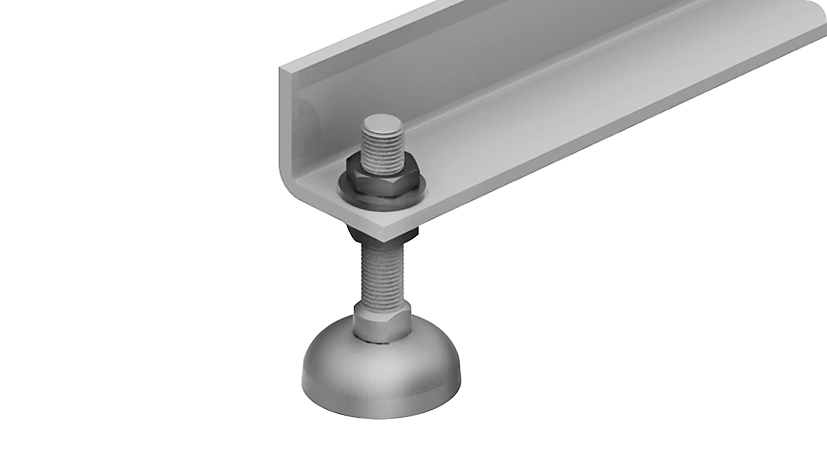

A leveling foot for slightly uneven floors, ESD electrostatical discharging, with nut DIN 439 (ISO 4035) form B;
Factory assembled
Material:
Steel
Surface:
Zinc plated
Tip:
Compatible Anti-Slip Plate see 098ABG045
Zolltarifnummer:
73269098900
Worldwide
Description:
A leveling foot for slightly uneven floors, ESD electrostatical discharging, with nut DIN 439 (ISO 4035) form B;
Factory assembled
Material:
Steel
Surface:
Zinc plated
Tip:
Compatible Anti-Slip Plate see 098ABG045
Zolltarifnummer:
73269098900
Model: | Steel |
---|---|
Pack Quantity: | 10 pieces |
Weight (g): | 190.0 |
Variants

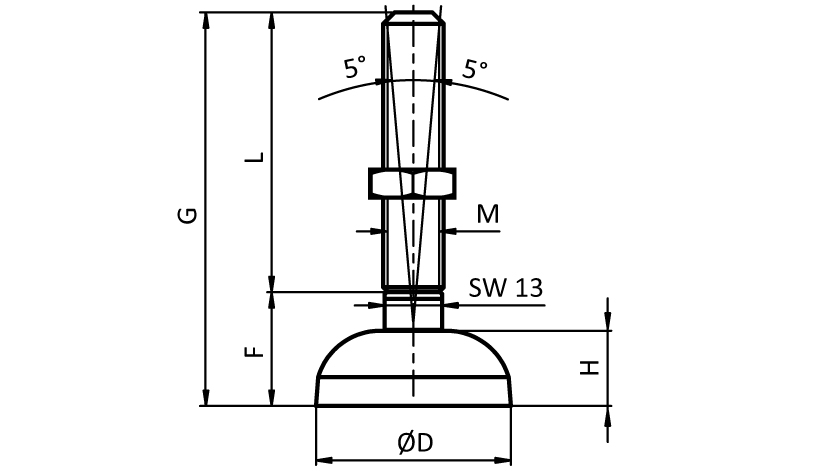

Product ID | H (mm) | Profile | Fmax (N) | F (mm) | D (mm) | Base | L (mm) |
---|---|---|---|---|---|---|---|
9AB045M12085MN | 17.0 | B | 9800 | 25.7 | 44 | 45 | 59.3 |
9AB045M12160MN | 17.0 | B | 9800 | 25.7 | 44 | 45 | 134.3 |
9AB045M16145MN | 17.0 | B | 9800 | 27.0 | 44 | 45 | 118.0 |
9AB060M12085MN | 20.0 | B | 9800 | 28.5 | 58 | 60 | 59.5 |
9AB090M16085MN | 20.0 | B | 19600 | 29.5 | 90 | 90 | 55.5 |
9AB090M16145MN | 20.0 | B | 19600 | 29.5 | 90 | 90 | 115.5 |
9AB090M16200MN | 20.0 | B | 19600 | 29.5 | 90 | 90 | 170.5 |
