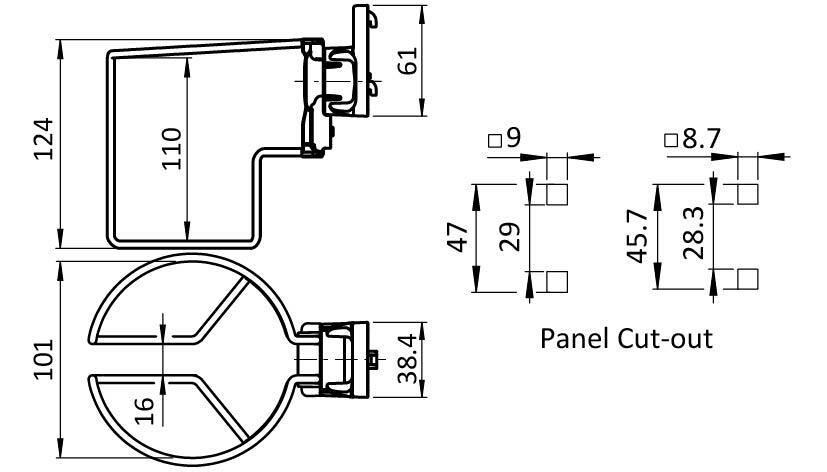

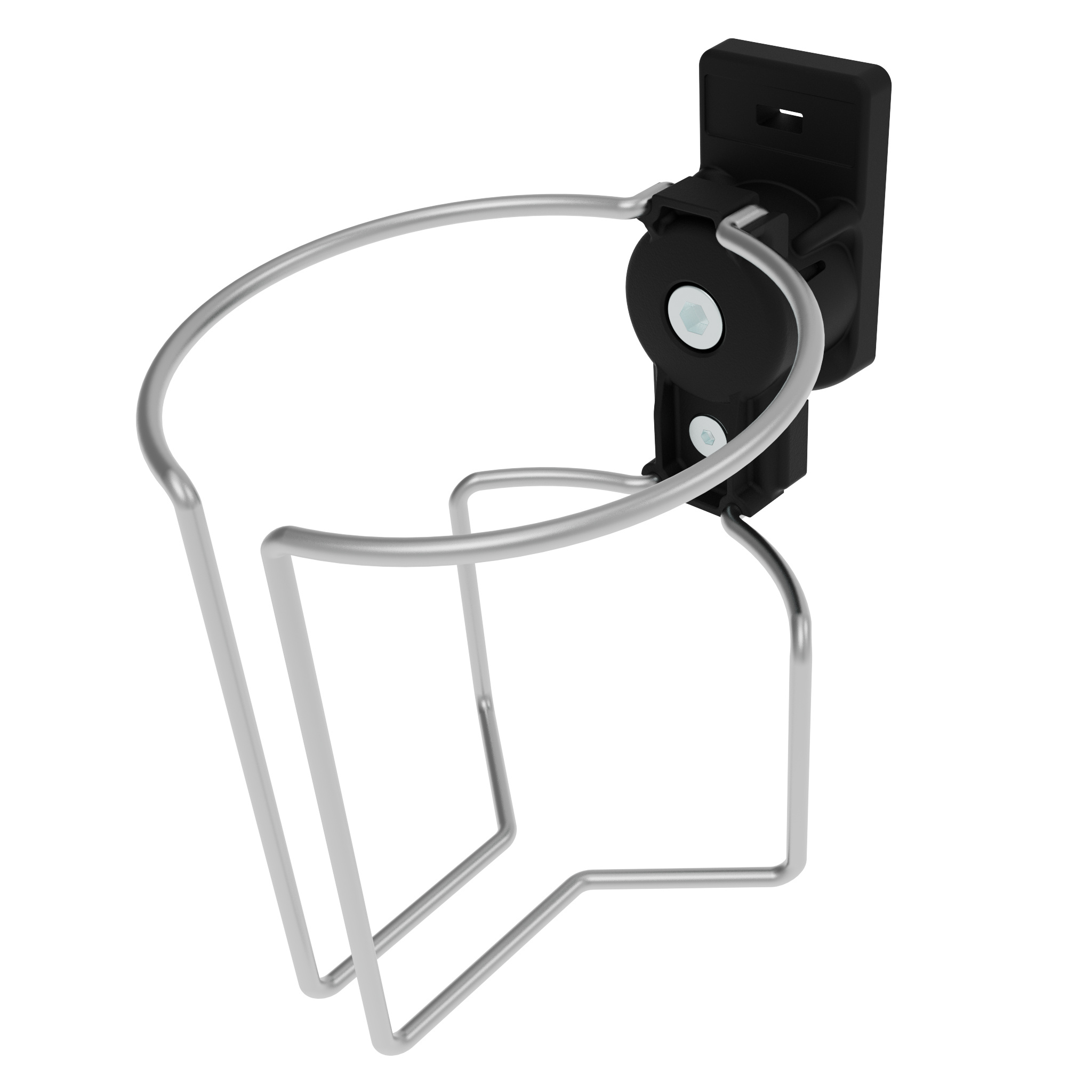

Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
€0.00

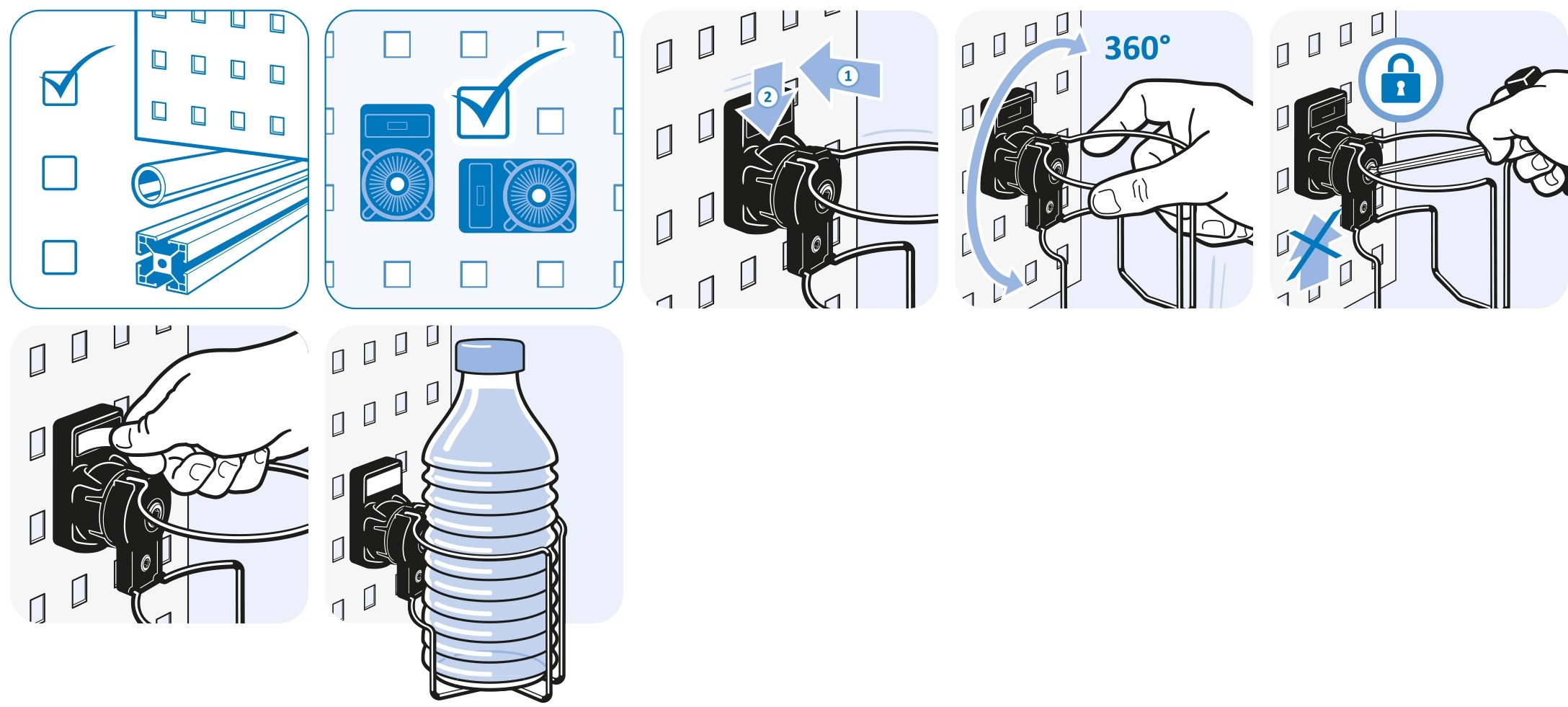

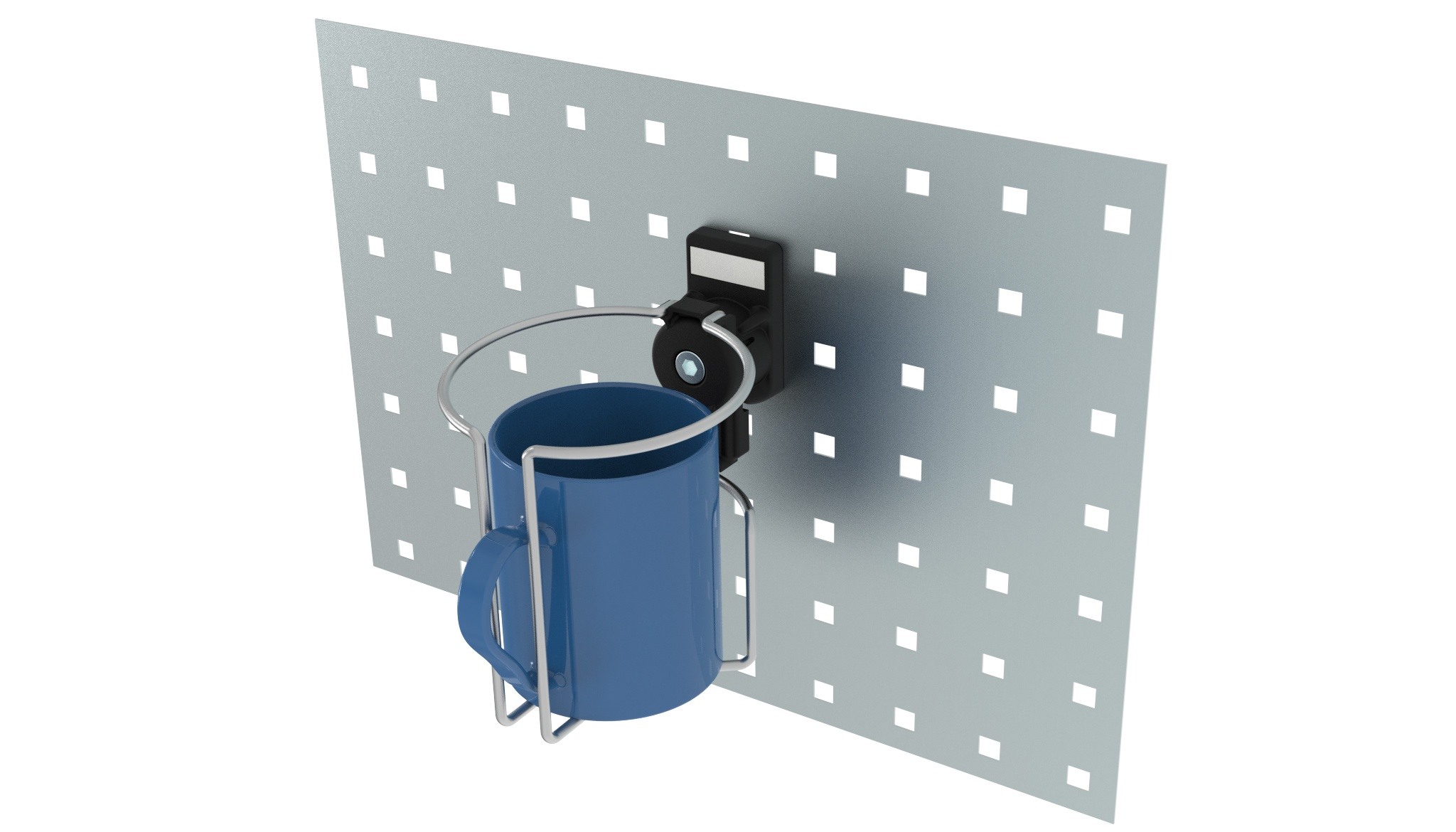

Ready to use bottle holder, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels
Rear mounting holder: Plastic PA, carbon fiber reinforced
Front locking holder: Plastic PA, glass ball reinforced
Wire: Stainless steel SS304
Spring: Spring steel SS313
Screw: Steel
Nut: Steel
Surface:
Screw: Zinc plated
Nut: Zinc plated
Color:
Rear mounting holder: Black
Front locking holder: Black
Tip:

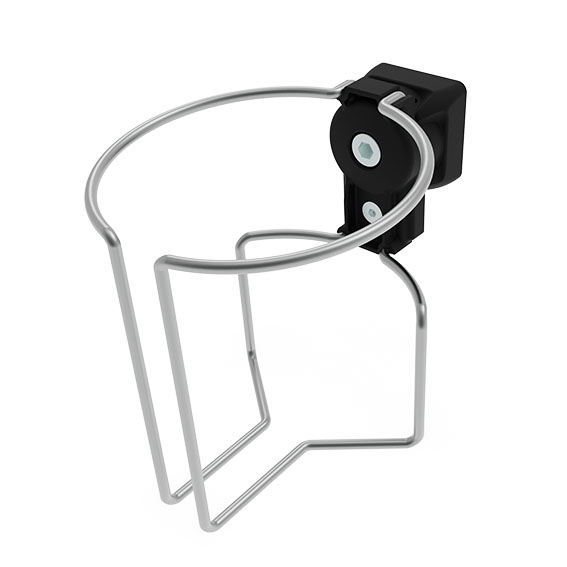

For profiles 40 / 45, slot 8 / 10 see 6TM840ND100S01

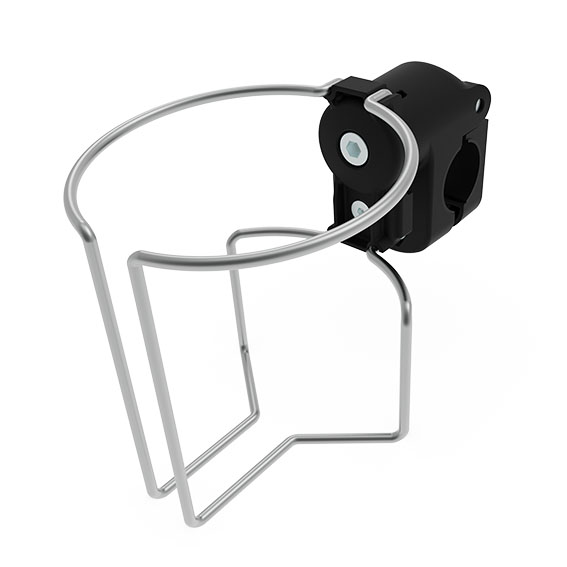

For round tubes D28 / D30 see 6TM8D283D100S01
Specials:
Other colors on request,
For other sheet metal thicknesses on request
Delivery Countries:
Worldwide
| Pack Quantity: | 1 piece |
|---|---|
| Model: | Pre-assembled |
| Weight (g): | 180.8 |
| ERP Number: | 160343 |
Product Portraits
Classifications
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360192
- ECLASS 12.0
- 23360192
- ECLASS 13.0
- 23360192
- Zolltarifnummer
- 83025000000
- Customs Tariff Number Export
- 83025000
Certificates
Matching accessories
Description:Ready to use bottle holder, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder standard version: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fiber reinforcedSurface:Screw: Zinc plated Nut: Zinc platedColor:Holder: Black, gray Centering piece: BlackTip:For round tubes D28 / D30 see 6TM8D283D100S01Specials:Other colors on requestDelivery Countries:Worldwide
Description:Ready to use bottle holder, 360° turnable, for tubes or tubular frame profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSurface:Screw: Zinc plated Nut: Zinc platedColor:Holder: BlackSpecials:Other colors on requestDelivery Countries:Worldwide
