Product Portrait
Tool Holders FX
FATH tool holder FX 360° for aluminum profiles, round tubes, square perforations and magnetic surfaces: Flexiblity to arrange and organize any work environment
FATH Tool Holders FX are practical shop floor aids for greater efficiency and order in assembly or production environments. Thanks to the wide range of variants and the high degree of flexibility, you can meet almost any requirement for effective and ergonomic tool provision at your industrial workplace. This creates positive work life and increases productivity.
The adaptability, which at the same time brings the advantage of 360° rotatability, allows the use of FATH Tool Holders FX with a wide variety of systems. Assembly on aluminum profiles, round tubes and tubular frame profiles D28, D30 or D27.6 is completed in a few simple steps. The tool holder with the rotatable slot inserts is fastened laterally in slot 8 or slot 10 with a T-slot nut or a hammer nut on the aluminum profile with a modular dimension of 40 mm or larger. With modular dimensions 40, the fastening module is flush on the front and thus replaces the cover cap at the same time. On round tubes D28, D30 or D27.6, the installation is carried out via clamping with the integrated screw.
The FATH tool holder FX can also be used for systems with square hole patterns. The holder is hooked directly into the square holes and fastened with the screw provided. An additional mounting option is available for magnetic surfaces: The tool holder FX can be equipped with magnet modules. These facilitate quick, tool-free assembly on metallic, ferromagnetic surfaces while also permitting flexible positioning and removal of the holder.
The two housing parts of the mounting module are spring-mounted for quick adjustment of the desired angle. Screw on, turn into position, tighten. Done!

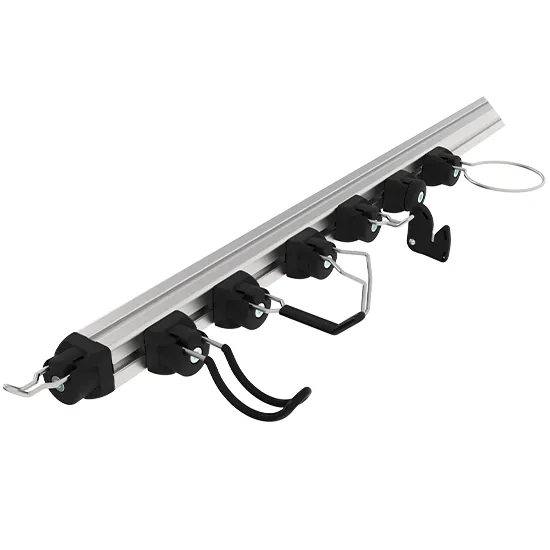

HIGHLIGHTS
- All tool holders FX can be rotated 360°
- Easy installation and handling
- Function modules can be combined with all adaptations
- To connect aluminum profiles, round tubes, round tubular profiles, square perforations, and magnetic surfaces
- Ergonomic tool provision
- Also suitable for heavy tools
Unique: 360° rotatability
All FATH Tool Holders FX can be roated 360° in 36 small steps! This enables a straight mounting even on inclined beams.
Thanks to the 360° rotatability, the alignment of the tool holders can be precisely adjusted so that tools and work equipment can be removed conveniently. Stowing also takes place intuitively and without delaying the work processes, even when using larger tools. Numerous function modules are available for this purpose. This enables good ergonomics and increases efficiency - the employees can use the tools with less effort, an straight alignment can be set for each handle and unnecessary fatigue is avoided.
WOULD YOU LIKE TO LEARN ABOUT ALL FATH FX TOOL HOLDERS?
Click here to view the different models.

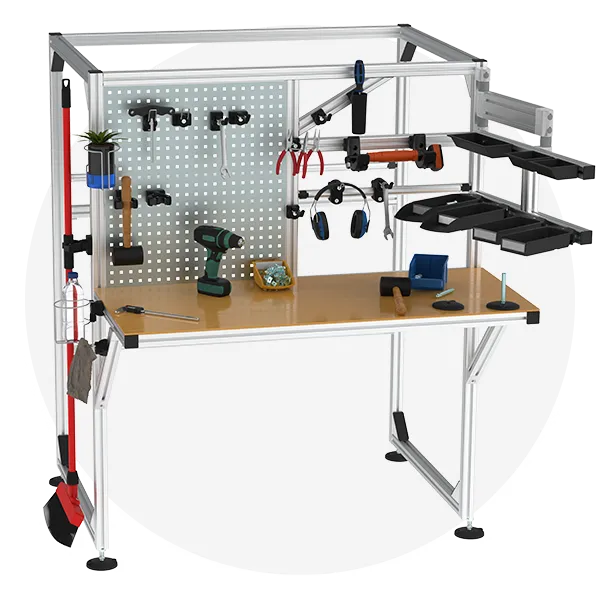

Countless possible applications

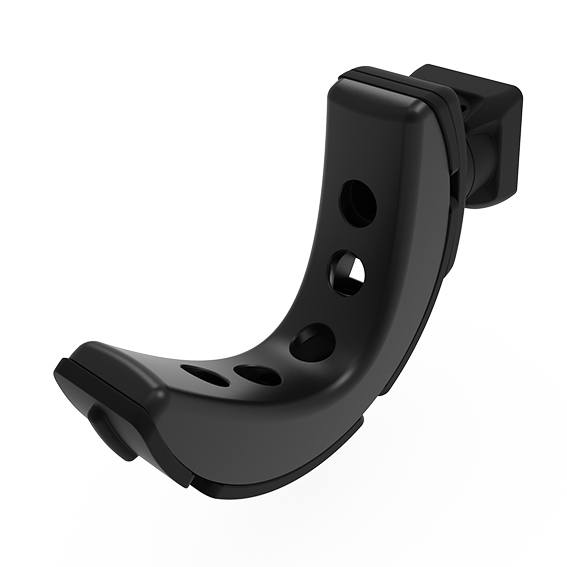

All FATH Tool Holders FX can be flexibly combined and attached to the profile, round tube or tubular frame profile. With the many different versions of brackets and hooks, countless applications can be implemented and virtually all requirements can be covered. Even larger tools such as torque wrenches or locking bolts can be stored safely and at the same time be within easy reach - simply attach two tool hooks at the appropriate distance. The sturdy tool tray is suitable for heavy offset screwdrivers. The sturdy tool tray is suitable for heavy offset screwdrivers.

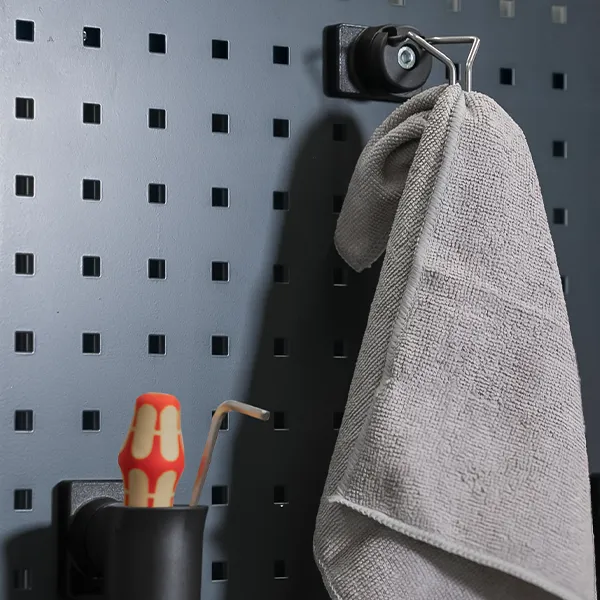

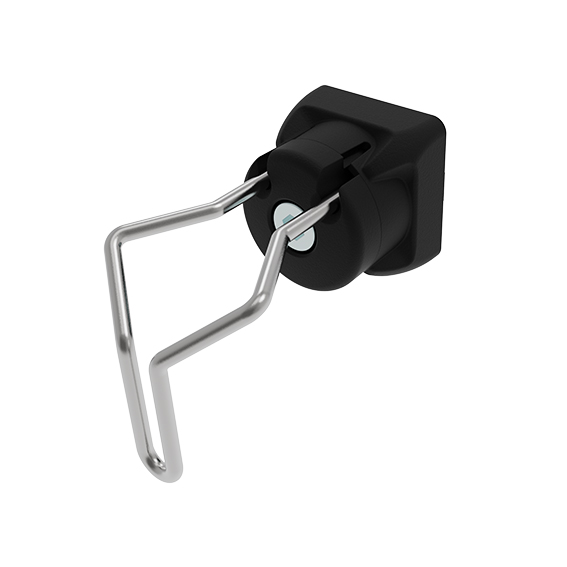

The quiver holds small tools such as screwdrivers or similar. The practical cloth clip keeps cleaning and dry cloths within easy reach - or even work clothing when you turn the hook upward. The bag cutter allows cutting without scissors, and the bottle holder keeps liquids handy. This saves a lot of time and ensures efficient work processes.
The friction adapter for the VESA monitor holder FX system is also compatible. It can be easily attached to round tubes with dimensions D28 / D30 as well as to profiles 40 / 45 with slot 8 / 10. This allows monitors to be flexibly positioned.
Refined and truly chic
FATH Tool Holders FX are both practical as well as refined and attractive in design. Instead of pure steel constructions, the mounting modules as well as brackets and hooks are available in chic shapes and designs. Additionally, bright plastic adaptations and rubberized hooks visually make a nice impression! For square profile, round tube and tubular frame profile available immediately. Also available as a square-hole variant with a 9 x 9 mm (8.7 x 8.7 mm) grid pattern and for use on metal surfaces with magnetic holders (single units or sets).
Functional modules can be interchanged as needed
All FATH Tool Holders FX consist of two modules, the attachment module and the functional module. The circular, 36-toothed connection inside the attachment module protects against twisting. Since all FATH Tool Holders FX are mounted with the same attachment module, you can exchange and combine the functional modules as needed, regardless of which tool holder support they are attached to – For profile, round tube, round tubular profile, and perforated sheets, as well as metallic surfaces using magnetic holders (single or as sets).
VERSIONS

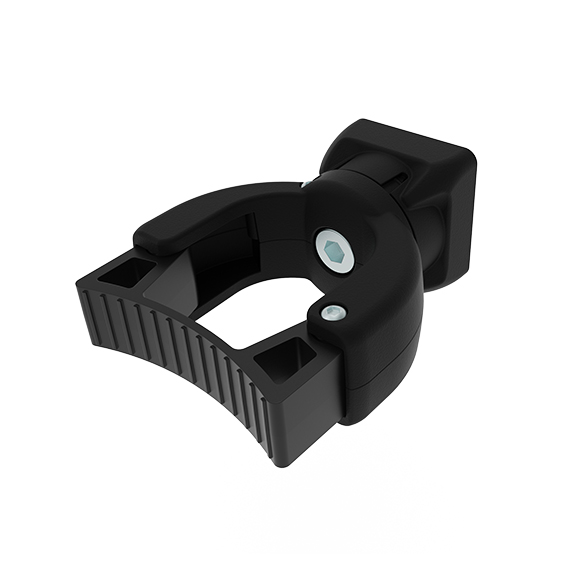

Color:Holder: Black Retaining strap: Black Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fiber reinforcedSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283X2030S01

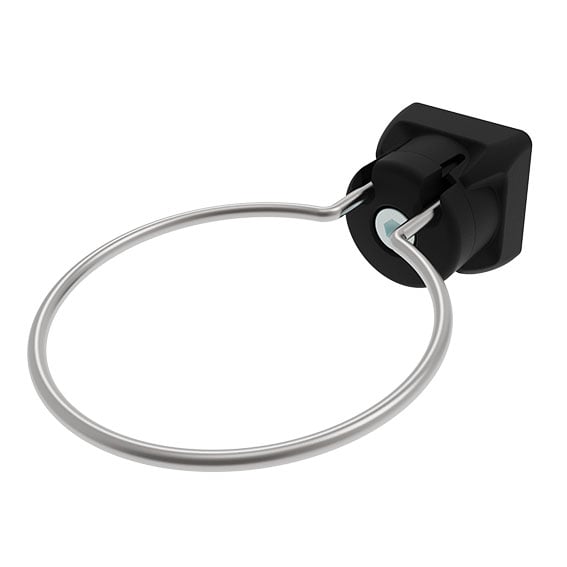

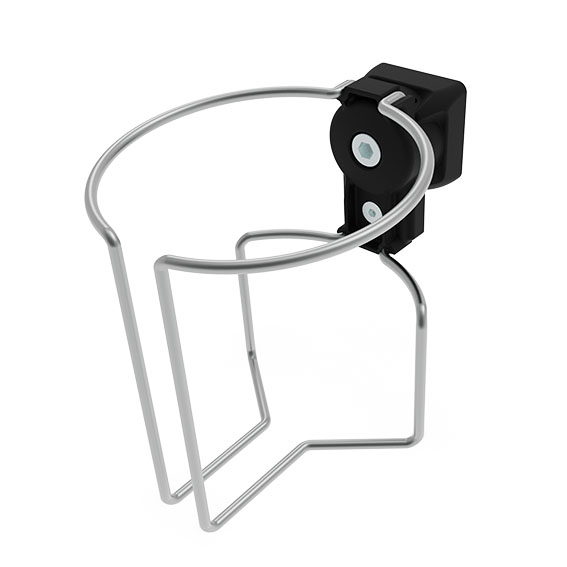

Color:Holder: Black, gray Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use bottle holder, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder standard version: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fiber reinforcedSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283D100S01

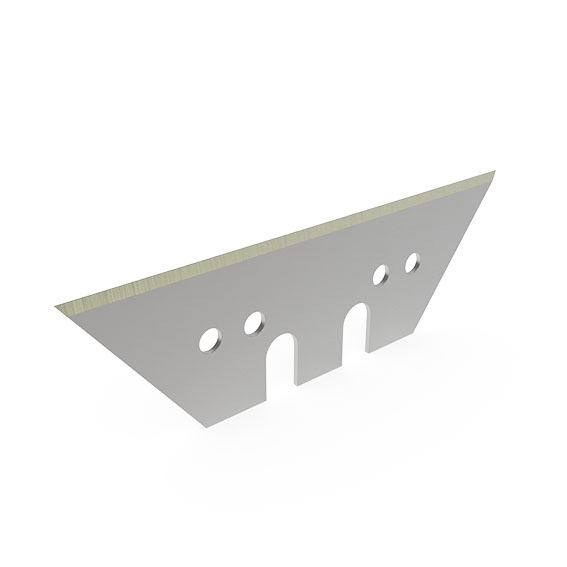

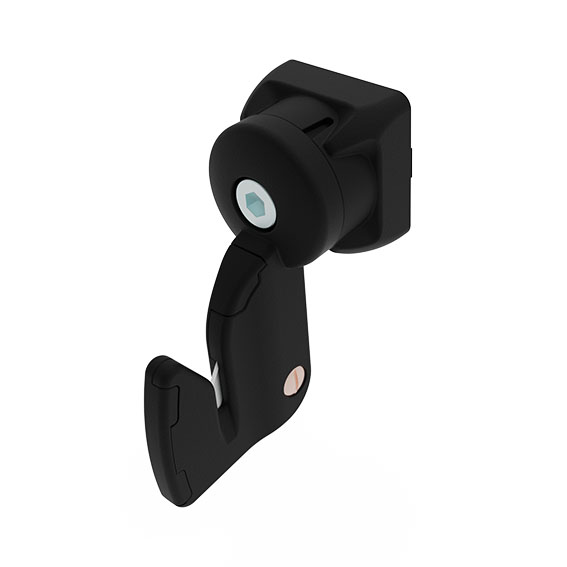

Color:Bag cutter: Black, gray Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use bag cutter, changeable blade, 360° turnable, for aluminum profiles To organize work stationsMaterial:Bag cutter standard version: Plastic PA, glass ball reinforced Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fiber reinforcedSpecials:Other colors on requestSurface:Counter sunk screw: Nickel plated Sleeve nut: Nickel plated Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283F91ESDS01Tip 2:Compatible Trapezoidal Blade for Bag Cutter FX see 061TF91S01

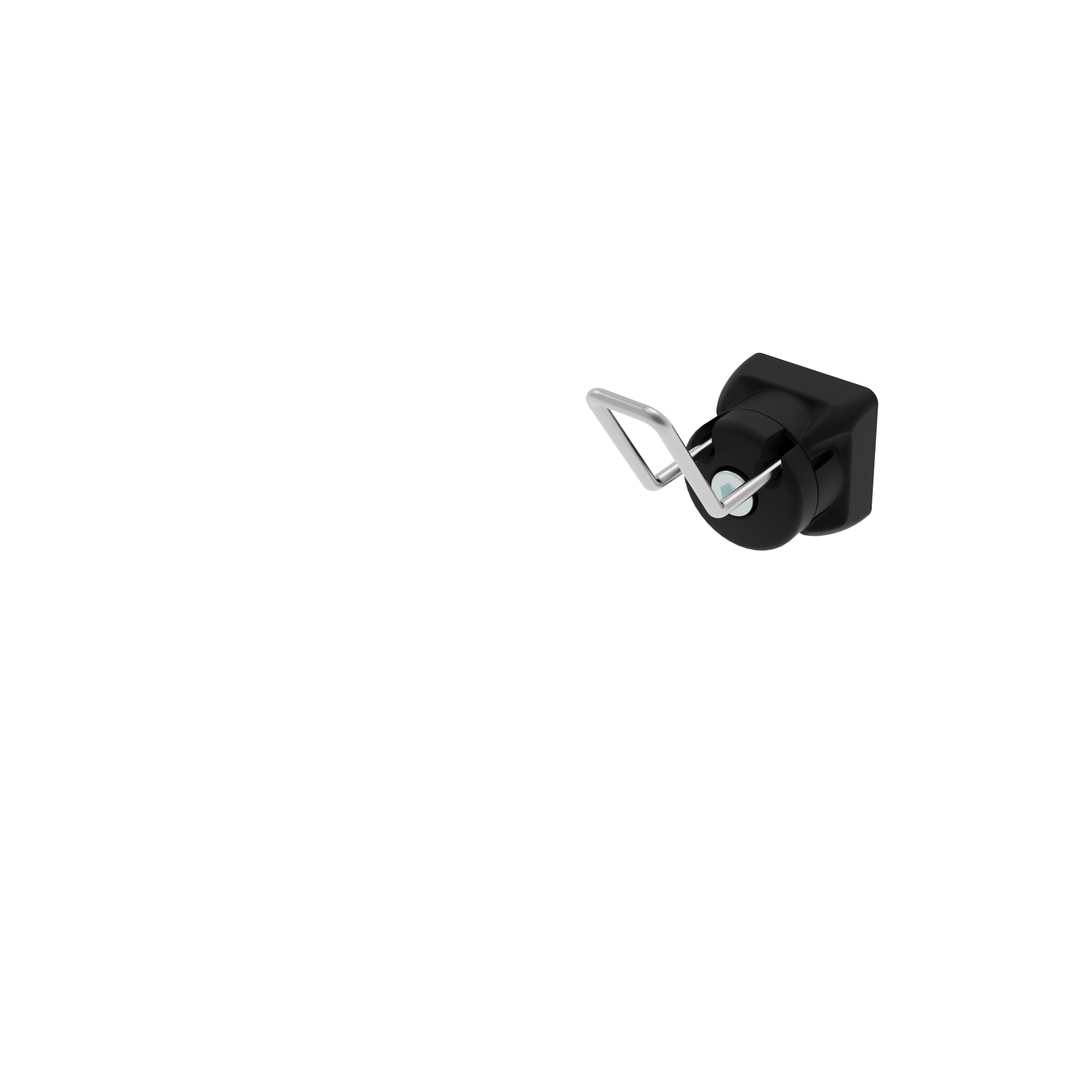

Color:Holder: Black, gray Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use tool hook, 360° turnable, for aluminum profiles To organize work stationsMaterial:Holder standard version: Plastic PA, glass ball reinforced Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fiber reinforcedSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TH2D283A3040EDS1-

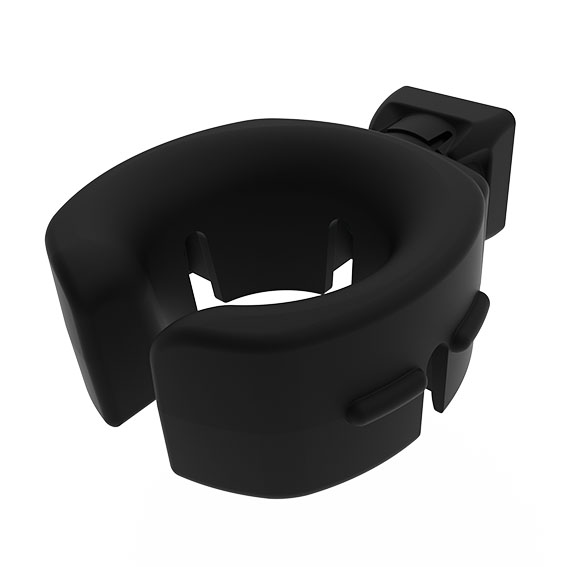

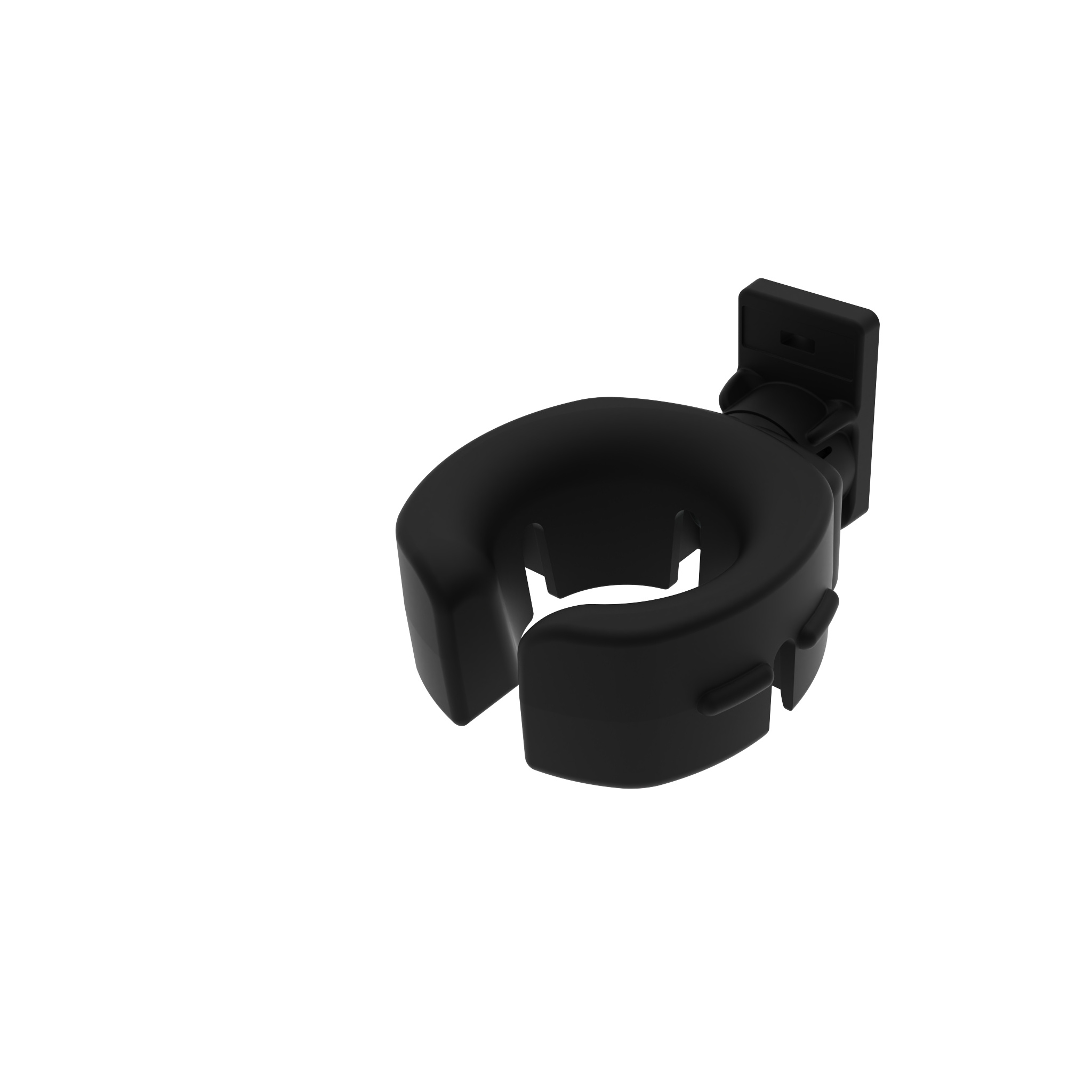

Color:Rear mounting holder: Black, gray Front locking adapter: Black, gray Drill / driver holder: Black, grayDelivery Countries:WorldwideDescription:Ready to use Tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder black version: Plastic PA, carbon fiber reinforced Rear mounting holder gray version: Plastic PA, glass fiber reinforced Front locking adapter: Plastic PA, glass ball reinforced Drill / driver holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NL12591S01 For round tubes D28 / D30 see 6TM8D283L12591S01

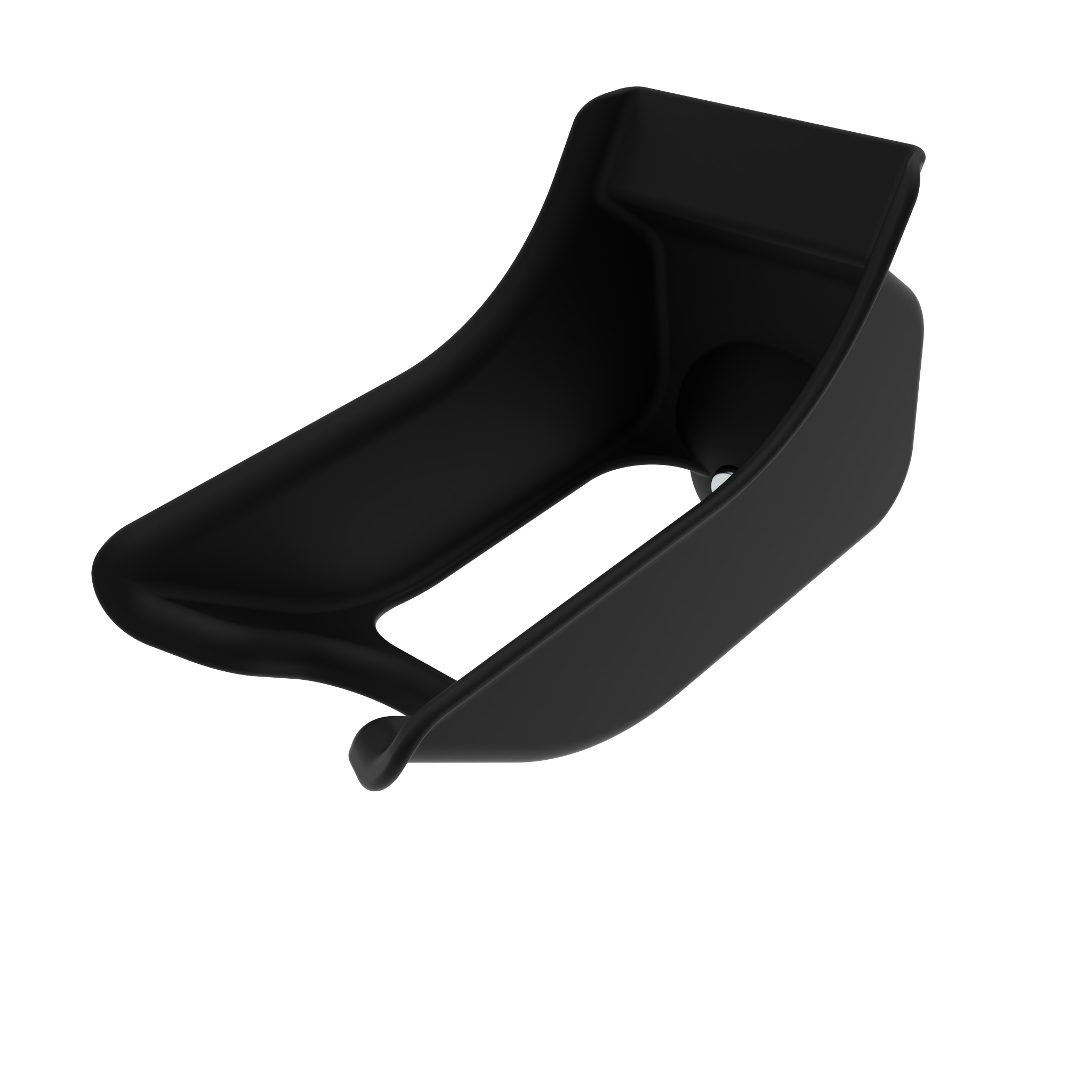

Color:Holder: Black, gray Packing Tape Hand Dispenser: Black, grayDelivery Countries:WorldwideDescription:Ready to use tool Holder for Packing Tape Hand Dispenser, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder black version: Plastic PA, carbon fiber reinforced Holder gray version: Plastic PA, glass fiber reinforced Packing Tape Hand Dispenser: Plastic PA, glass fiber reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NPT91 For round tubes D28 / D30 see 6TD283PT91

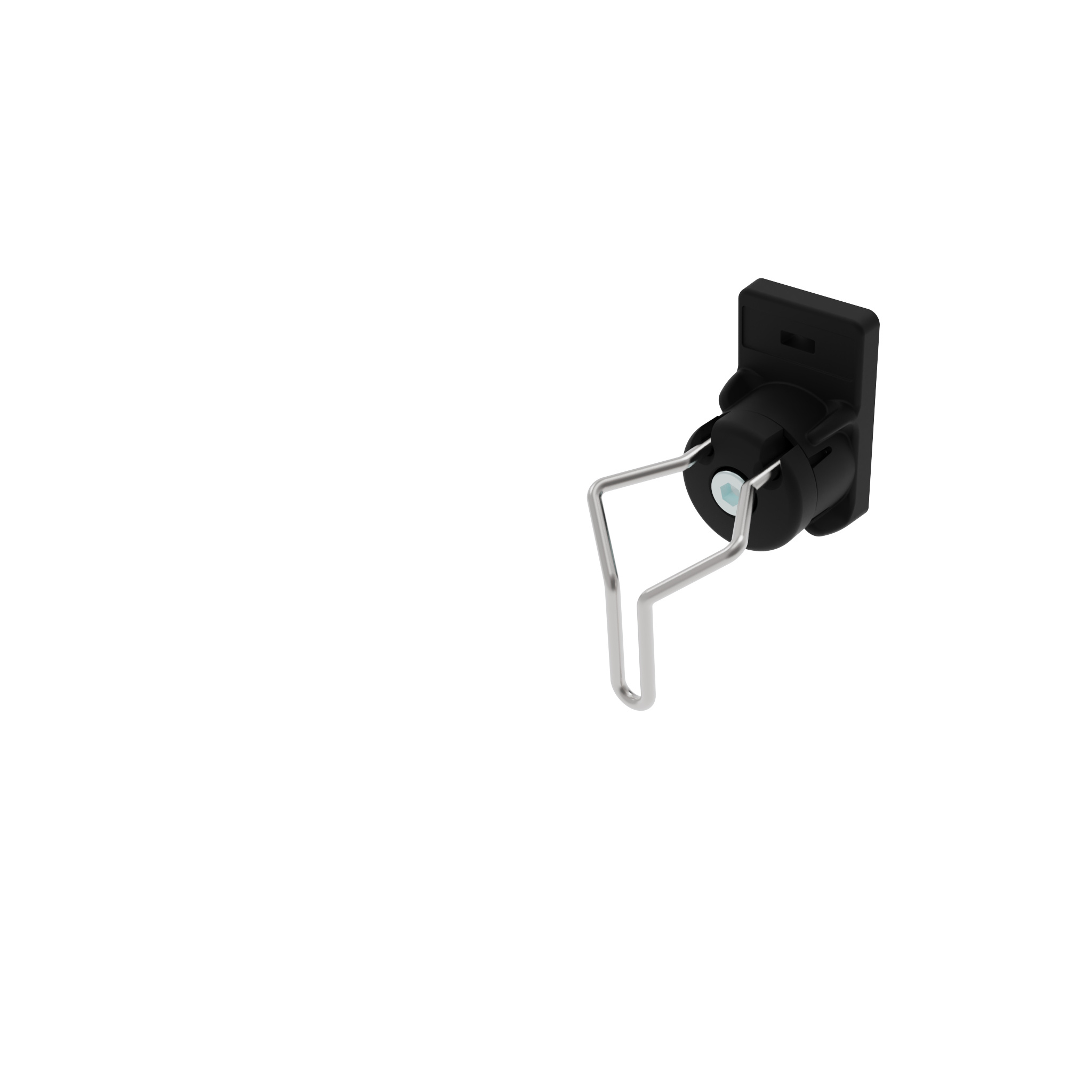

Color:Rear mounting holder: Black Front locking holder: BlackDelivery Countries:WorldwideDescription:Ready to use cloth clip, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NG5050S01 For round tubes D28 / D30 see 6TH2D283G5050EDS1-
Color:Rear mounting holder: Black Front locking holder: BlackDelivery Countries:WorldwideDescription:Ready to use tool holder ring with 80 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240ND80S01 For round tubes D28 / D30 see 6TH2D283D80ESDS01
Color:Holder: BlackDelivery Countries:WorldwideDescription:Ready to use tool hook, 360° turnable, for tubes or tubular frame profiles To organize work stationsMaterial:Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc plated

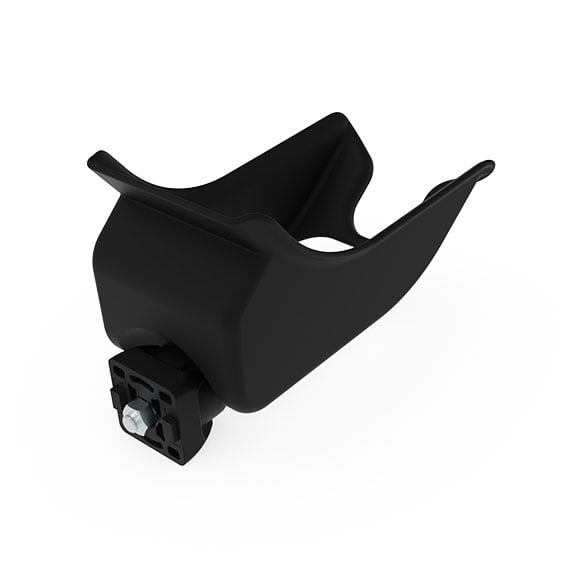

Color:Holder: BlackDelivery Countries:WorldwideDescription:Ready to use tool tray, 360° turnable, tilt-adjustable in 5 ways, for tubes or tubular frame profiles; Suitable for heavy tools or nutrunners; tool friendly surface; To organize workstationsMaterial:Tool tray ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Tray inserts standard version: Plastic TPE, ≈ 70 Shore A Tray inlay ESD electrostatical discharging version: Plastic TPE, ≈ 80 Shore A, with carbon Spring: Spring steel SS313 Washer: Steel Screw: Steel Nut: SteelSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc plated
Color:Holder: BlackDelivery Countries:WorldwideDescription:Ready to use tool quiver, outer diameter Ø 50 mm, 360° turnable, for tubes or tubular frame profiles; To organize workstationsMaterial:Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforcred with carbon Quiver ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc plated
Color:Holder: Black Wire: Black coatedDelivery Countries:WorldwideDescription:Ready to use double tool hook, 360° turnable, for tubes and tubular frame profiles; Rubber coated wire to prevent tools from slipping; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on requestSurface:Wire: PVC coated Screw: Zinc plated Nut: Zinc plated

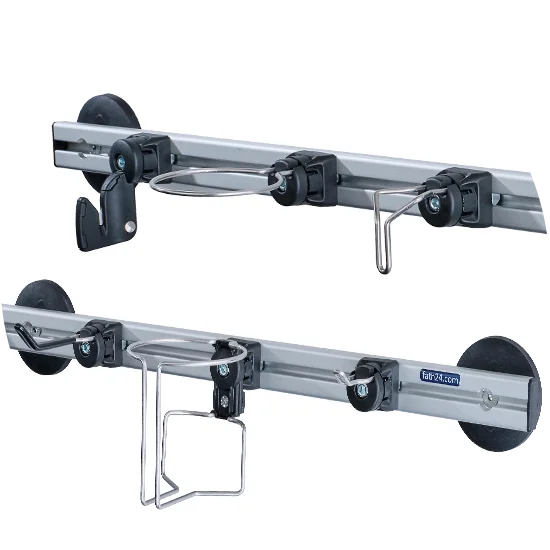

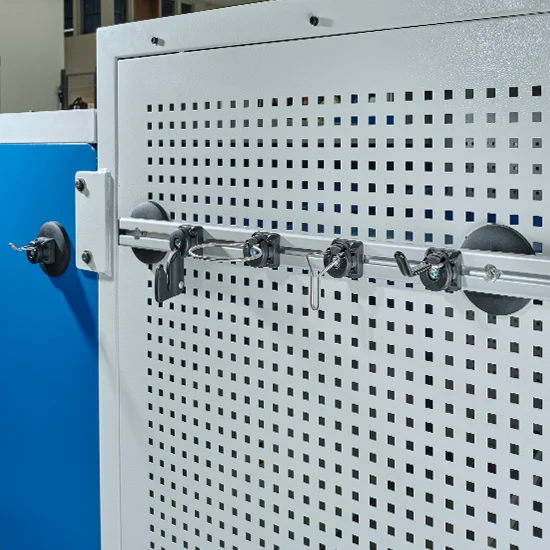

The ideal supplement: Provisioning rails and magnets
The FATH tool holders FX for profiles 40 / 45 with slot 8 / 10 can be flexibly mounted on supply rails or directly on the magnet. This provides a professional, space-saving, and individually adaptable solution for organized tool storage at the workplace.
