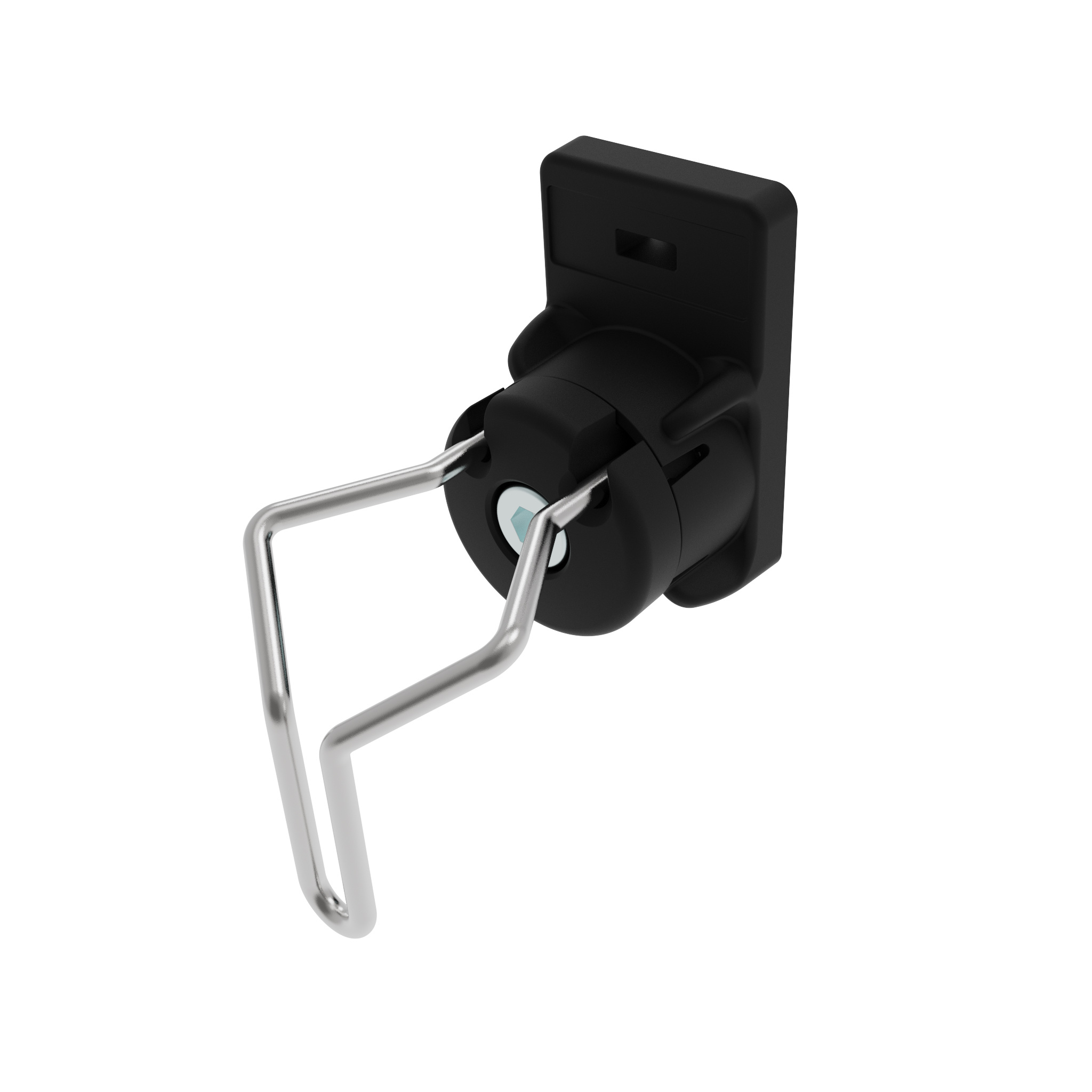

Cloth Clip FX for Square Holes 9 x 9 (8.7 x 8.7)

Product information "Cloth Clip FX for Square Holes 9 x 9 (8.7 x 8.7)"

Color:
Rear mounting holder: Black
Front locking holder: Black

Delivery Countries:
Worldwide

Description:

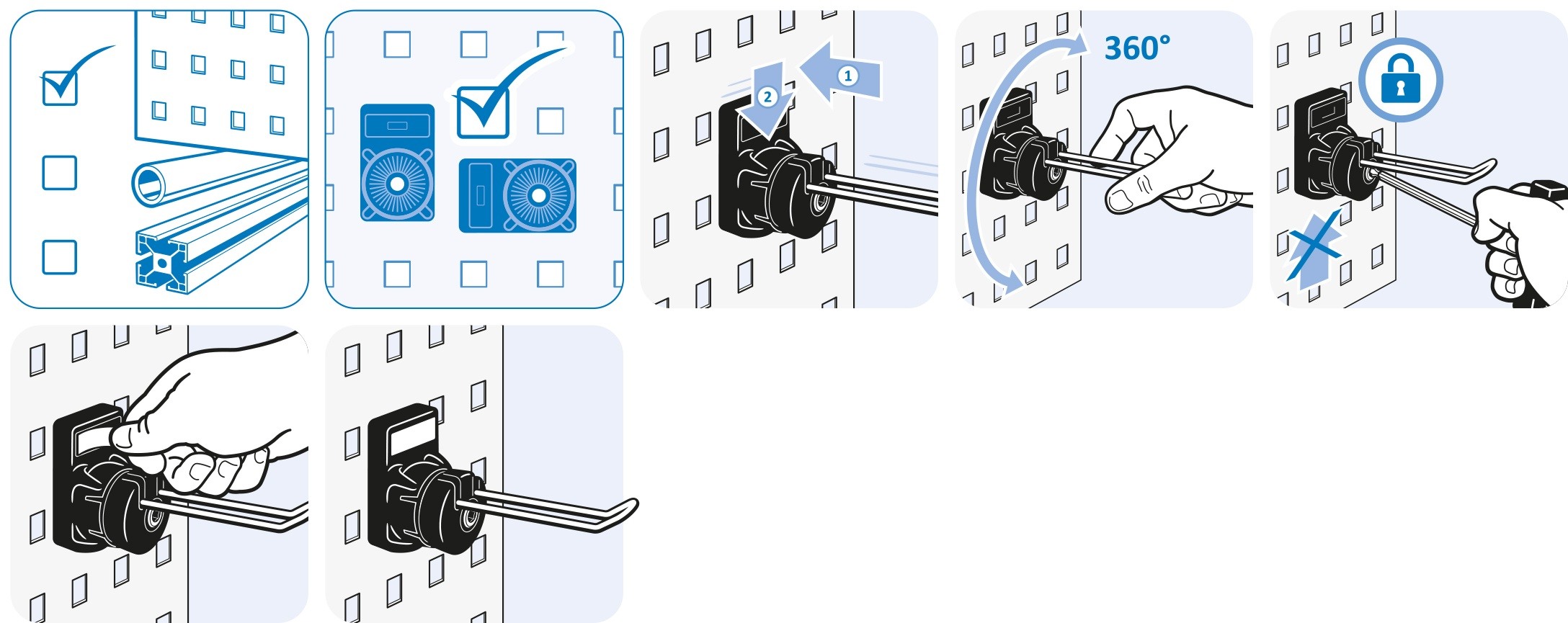

Ready to use cloth clip, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels

Material:
Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced
Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon
Wire: Stainless steel SS304
Spring: Spring steel SS313
Screw: Steel
Nut: Steel

Specials:
Other colors on request,
For other sheet metal thicknesses on request

Surface:
Screw: Zinc plated
Nut: Zinc plated

Tip:
For profiles 40 / 45, slot 8 / 10 see 6TH240NG5050S01
For round tubes D28 / D30 see 6TH2D283G5050ESDS01

Zolltarifnummer:
83025000000
Model: Pre-assembled
Pack Quantity: 1 piece
Weight (g): 81.1

Variants

Product ID ESD Color
6TP38G5050ESDS01 ESD electrostatical discharging Black
