Product Portrait
FATH Magnets
Magnetic tool holders for quick, flexible mounting of tools and supply rails on all types of metal surfaces.

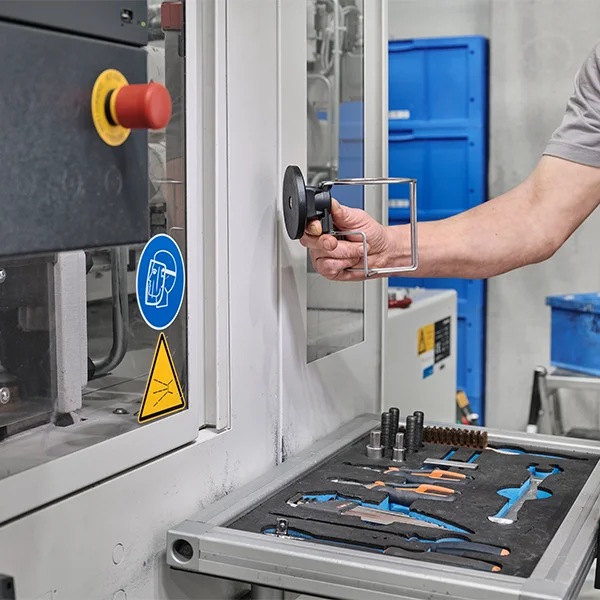

The magnetic tool holder FX fastening is the perfect solution for the flexible design of workbenches and metal worktops. They allow tool holders to be easily attached to tool table rear panels made of sheet metal or perforated sheet metal, to control cabinets or fire doors.
Thanks to the magnetic function, tool holders and supply rails may be quickly mounted and reconfigured – ideal for completely transforming a workstation from right-handed to left-handed use or for adaptation to varying production requirements. The magnetic holders indicate approximate load capacities:
- Vertical tensile load up to 140 N for perforated sheet metal and up to 260 N for normal metallic surfaces,
- Horizontal load up to 128 N on perforated sheet and up to 94 N on normal metallic surface,
- Torque up to 5.4 Nm on perforated sheet and up to 6.6 Nm on normal metallic surface.
This allows workspaces to be reconfigured quickly, cleanly and without drilling – a real benefit for flexible working environments.
HIGHLIGHTS
- Simple, magnetic fastening
- Flexible adjustment for right- and left-handed users
- Schnell montier- und demontierbar
- Ideal for tool holders and staging rails
- Various set sizes available
Another plus for your workplace:
With the magnetic tool holders FX, workstations can be adapted to new requirements in seconds. The magnetic holders offer maximum flexibility. They are ideal for converting the system for other products or making ergonomic adaptations for left- or right-handed users. They also facilitate the quick assembly of supply rails. No drilling, clean assembly and easy reuse.
Flexible use in workshops, industry & production
- For assembly of tool holders on sheet metal/perforated sheet metal tool walls

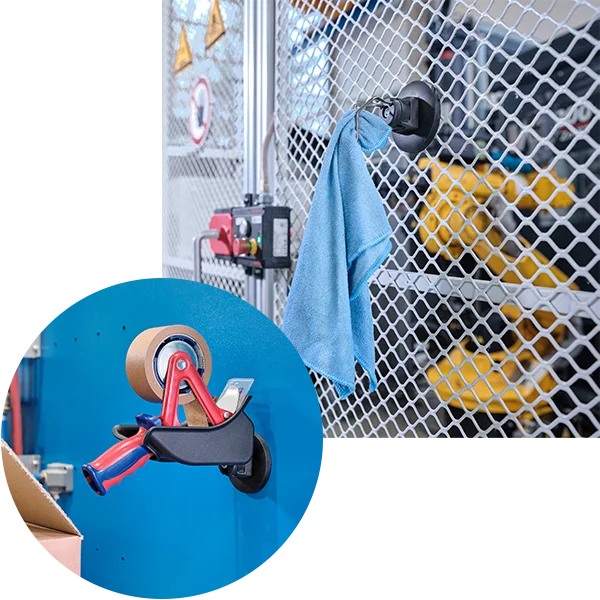

- For fastening to switch cabinets, fireproof doors, carriers in high-bay warehouses, or other metal surfaces
- Supply rails for modular workstations, versatile for organizing tools or information materials such as production orders
- Quick conversion of workstations for right- or left-handed users
- Flexible adaptation to changing production requirements
Versions
Magnetic tool holders FX – single holders or practical sets

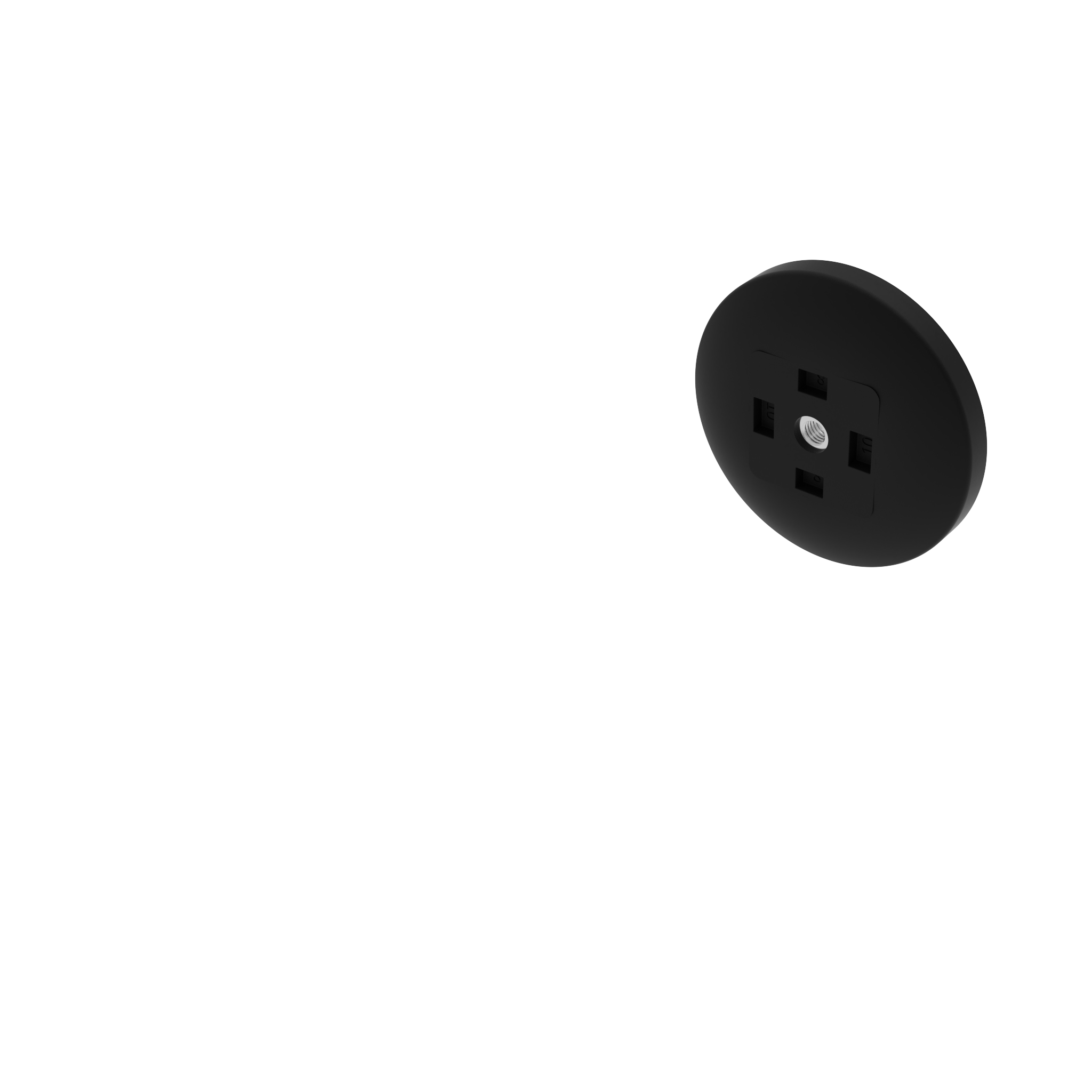

Color:Holder: Black / -Delivery Countries:WorldwideDescription:Magnetic holder to mount Tool Holders FX for Profiles 40 / 45, Slot 8 / 10 on steel surfaces; With a central M8 female thread and holes for centering pieces slot 8 / 10Material:Holder: Rubber / steel Magnets: NeodymiumSurface:Holder: - / zinc platedTip:Compatible Tool Holders FX for Profiles 40 / 45, Slot 8 / 10 see 6TH240NA5020S01, 6TH240NA903091S01, 6TH240NA9030S01, 6TH240NA3040S01, 6TH240NA8020S01, 6TH240NA4060S01, 6TH240ND80S01, 6TH240NR3091S01, 6TH240NR4091S01 Compatible Cloth Clip FX for Profiles 40 / 45, Slot 8 / 10 see 6TH240NG5050S01 Compatible Bottle Holder FX for Profiles 40 / 45, Slot 8 / 10 see 6TM840ND100S01 Compatible Packing Tape Hand Dispenser Holder FX for Profile 40 / 45, Slot 8 / 10 see 6TM840NPT91 Compatible Tool Tray PARABOL FX for Profiles 40 / 45, Slot 8 / 10 see 6TM840NV12591S01 Compatible Broom Holder FLEX FX 20 - 30 for Profiles 40 / 45, Slot 8 / 10 see 6TM840NX2030S01 Compatible Tool Quiver FX D50 for Profiles 40 / 45, Slot 8 / 10 see 6T40Q5040ESDS01 Compatible Drill / Driver Holder FX D50 for Profile 40 / 45, Slot 8 / 10 see 6TM840NL12591S01 Compatible Bag Cutter FX for Profiles 40 / 45, Slot 8 / 10 see 6TM840NF91S01 Compatible Monitor Mount FX for Profiles 40 / 45, Slot 8 / 10 see 6TM840FR7510091

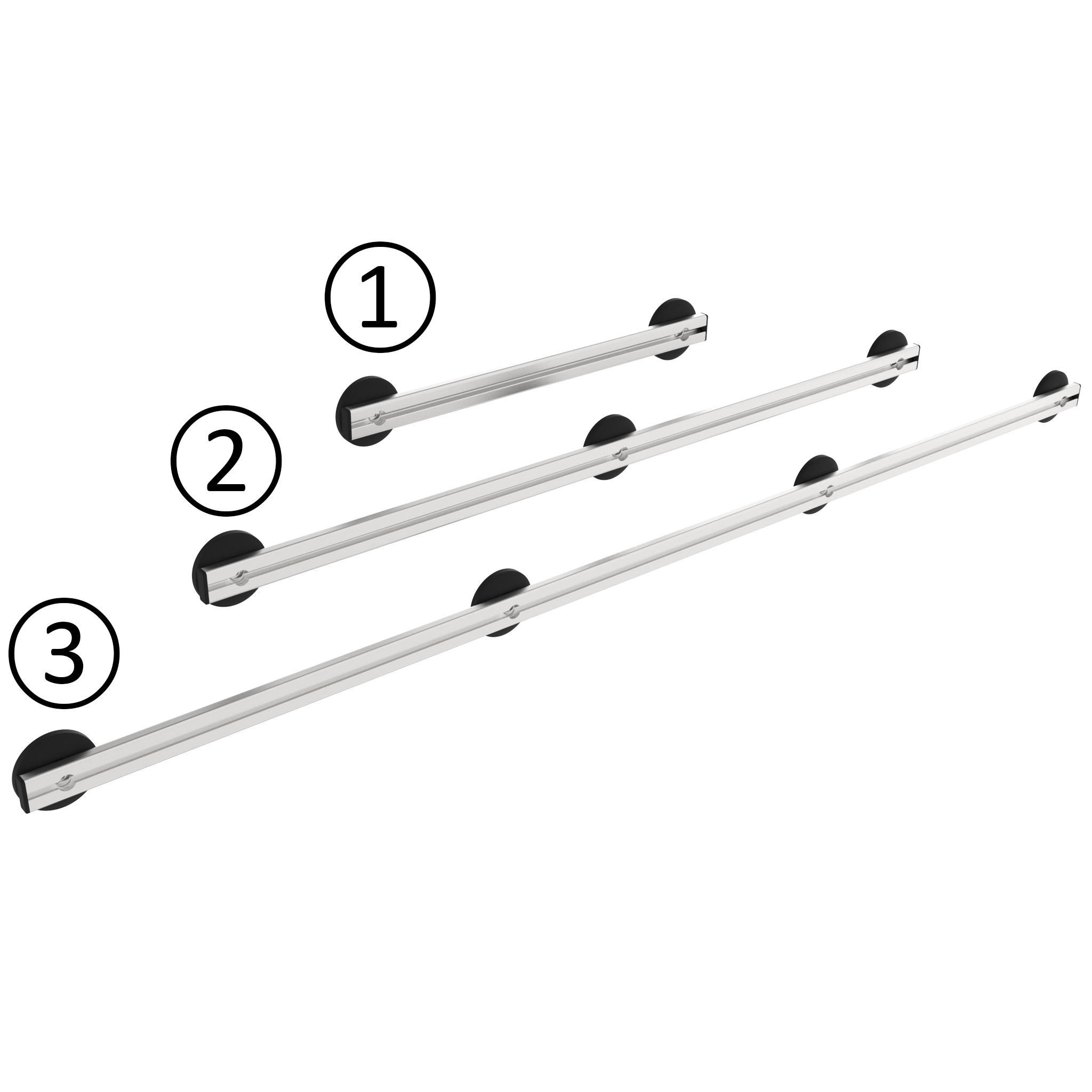

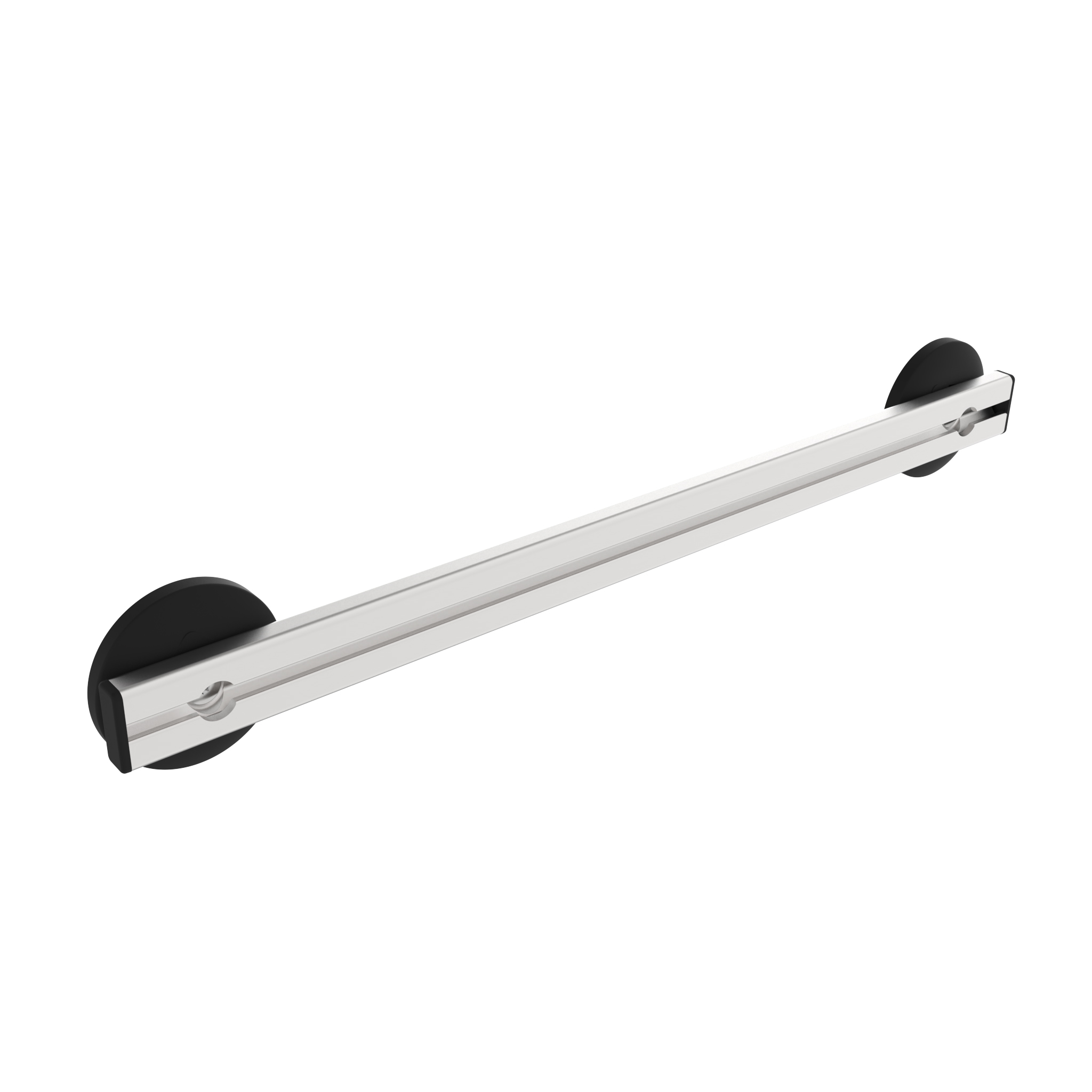

Color:Holder: Black / - Cover caps: BlackDelivery Countries:WorldwideDescription:To supply tools etc.; Magnetic mounting of the bar on steel surfaces; Also suitable for assembly of several Tool Holders FX for Profiles 40 / 45, Slot 8 / 10Material:Holder: Rubber / steel Magnets: Neodymium Profile: Aluminum Cover caps: Plastic PA, glass fiber reinforcedSurface:Holder: - / zinc plated Profile: Anodized
Clever addition for maximum flexibility

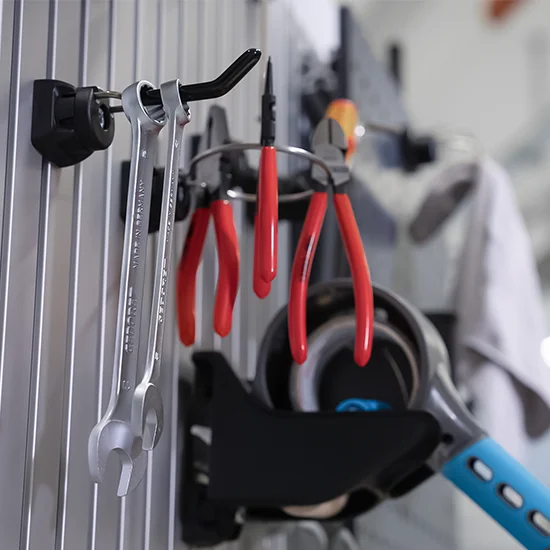

FATH tool holders FX can be mounted on supply rails in combination with 40 / 45 profiles and 8 / 10 slots, or directly on the magnet. The Tool Holder FX offers a wide range of options to facilitate professional, space-saving tool organization.
