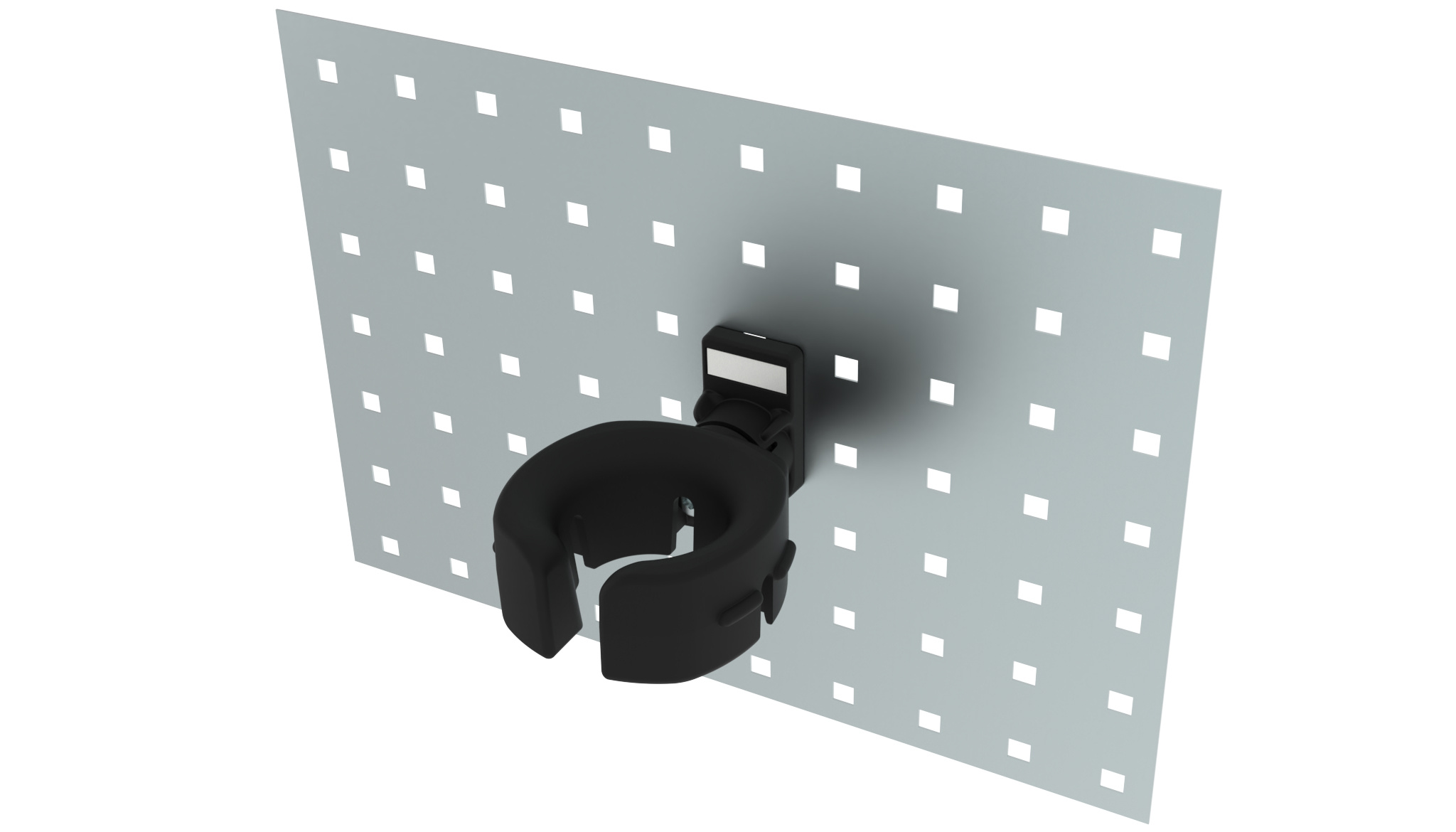

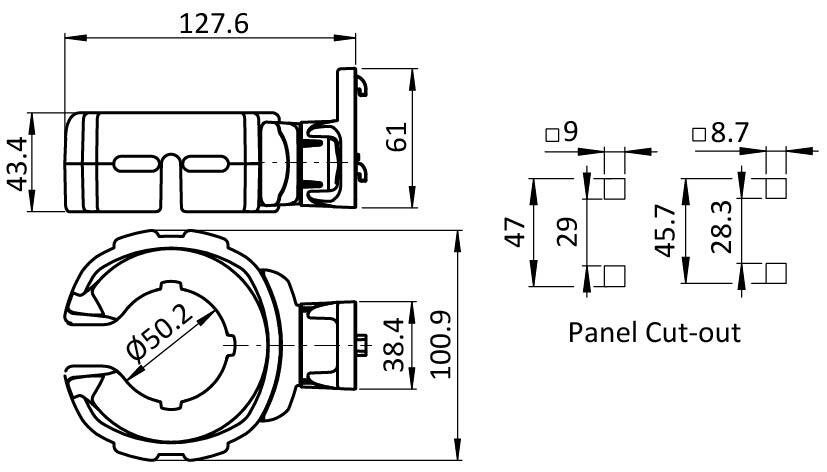

Drill / Driver Holder FX D50 for Square Holes 9 x 9 (8.7 x 8.7)

Product information "Drill / Driver Holder FX D50 for Square Holes 9 x 9 (8.7 x 8.7)"

Color:
Rear mounting holder: Black, gray
Front locking adapter: Black, gray
Drill / driver holder: Black, gray

Delivery Countries:
Worldwide

Description:

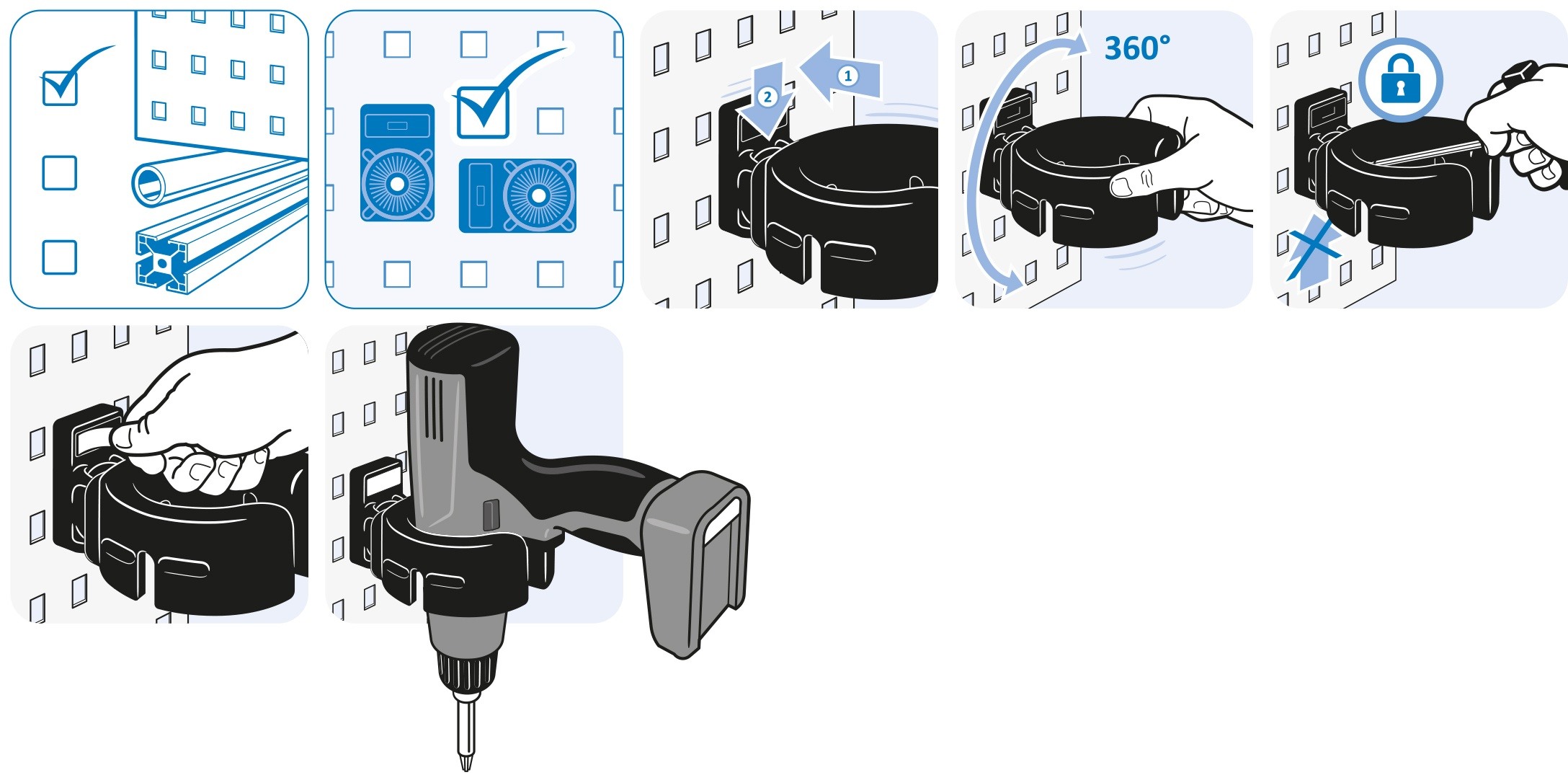

Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels

Material:
Rear mounting holder black version: Plastic PA, carbon fibre reinforced
Rear mounting holder gray version: Plastic PA, glass fibre reinforced
Front locking adapter: Plastic PA, glass ball reinforced
Drill / driver holder: Plastic PA, glass ball reinforced
Spring: Spring steel SS313
Screw: Steel
Nut: Steel

Specials:
Other colors on request,
For other sheet metal thicknesses on request

Surface:
Screw: Zinc plated
Nut: Zinc plated

Tip:
For profiles 40 / 45, slot 8 / 10 see 6TM840NL12591S01
For round tubes D28 / D30 see 6TM8D283L12591S01

Zolltarifnummer:
39269097900
Model: Pre-assembled
Pack Quantity: 1 piece
Weight (g): 171.9

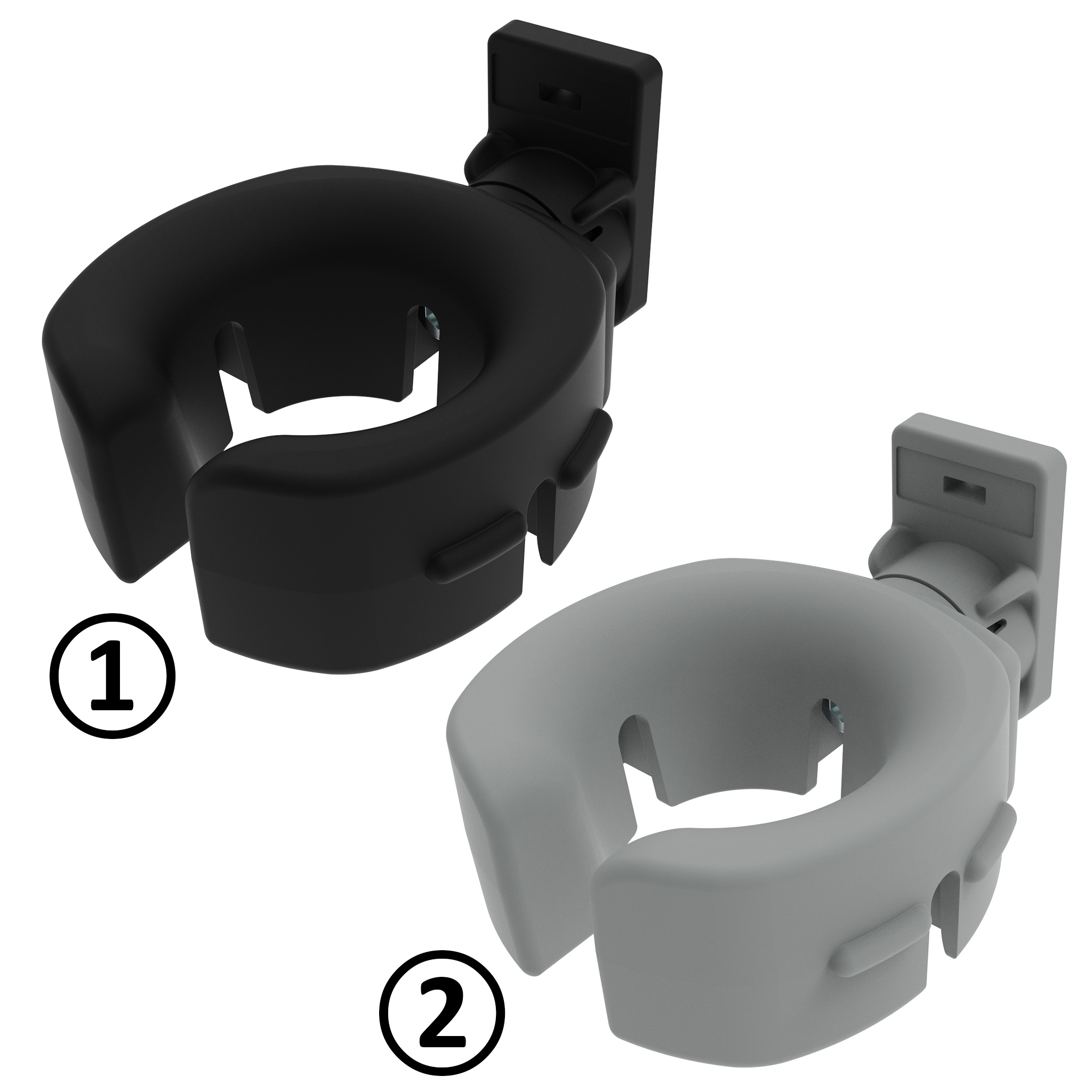

Variants

Product ID Fig. Color
6TP38L12574S01 Gray ≈ RAL 7042
6TP38L12591S01 Black

CAD Downloads

Certificates
