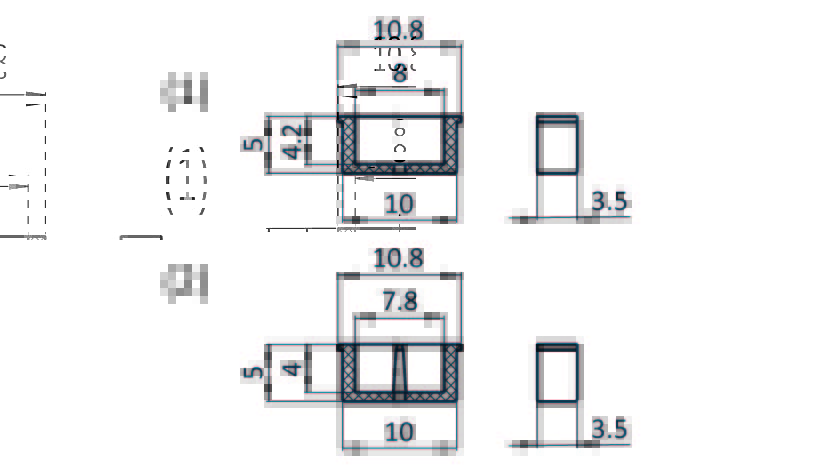

Centering Piece Widening Slot 8 to Slot 10
€0.00
Plastic PA, glass fiber reinforced
Color:
Black, natural
Tip:
To 093W03 compatible Floor Brackets see 093W1171L
To 093W02 compatible Alu Connection Angles see 093W303, 093W302, 093W421, 093W603, 093W806, 093W901
To 093W03 compatible Alu Connection Angles see 093W404, 093W451
To 093W03 compatible Zinc Connection Angles see 093W206N08R
To 093W02 compatible Turning Angles see 093WG302N08
Delivery Countries:
Worldwide
| Pack Quantity: | 100 pieces |
|---|---|
| Model: | Plastic PA |
| Weight (g): | 1.0 |
| ERP Number: | 100916 |
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 39269097900
- Customs Tariff Number Export
- 39269097
Certificates
