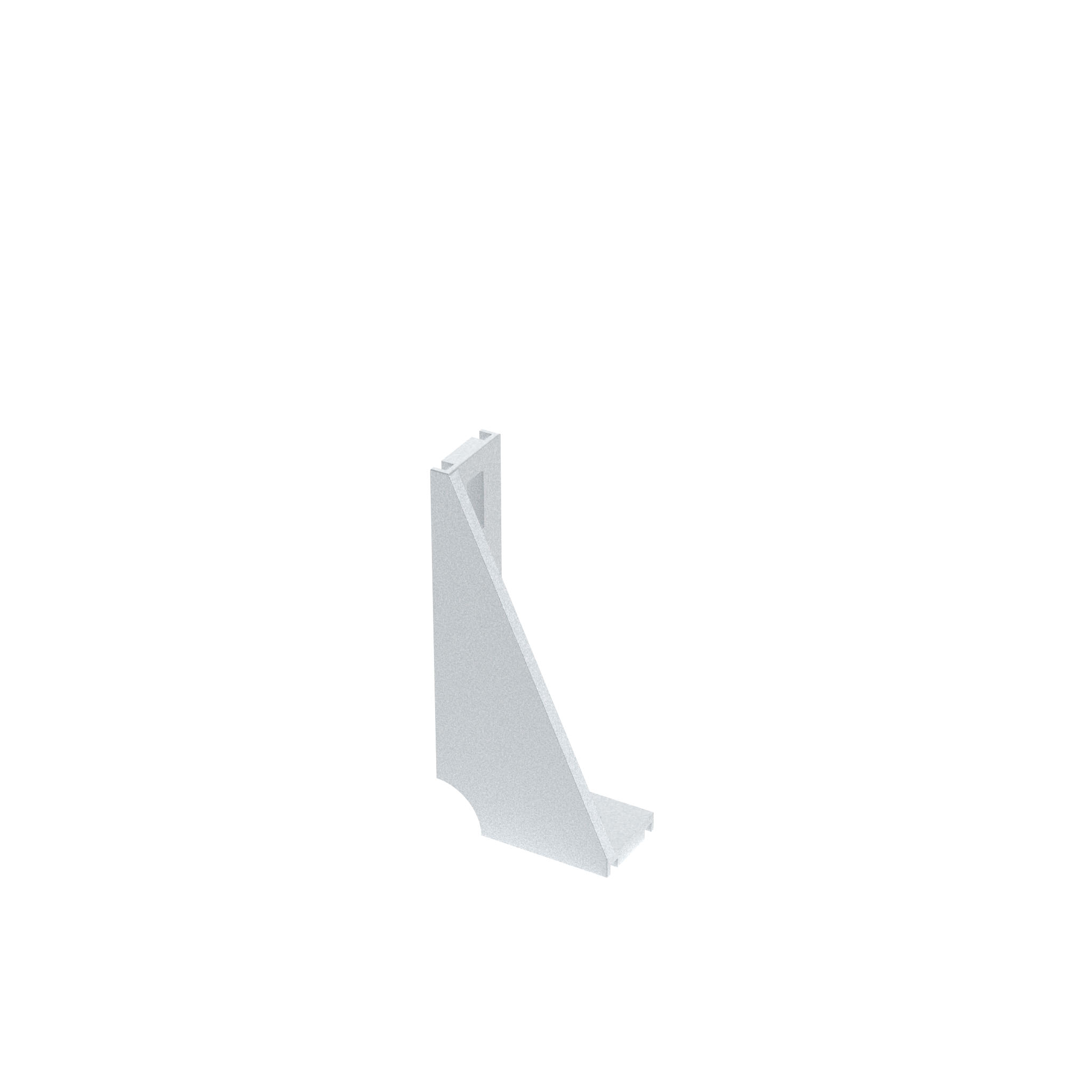

Floor Bracket AL 30

Product information "Floor Bracket AL 30"

Delivery Countries:
Worldwide

Description:

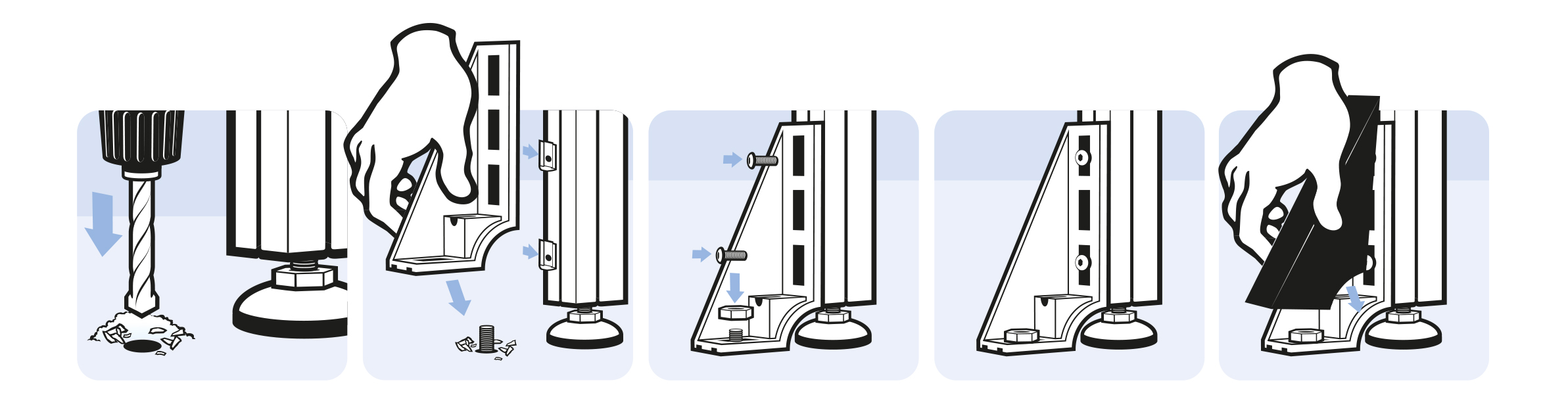

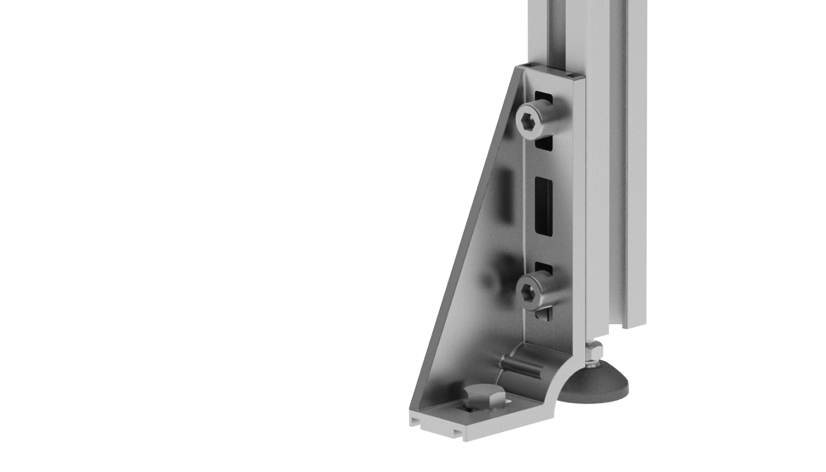

To securely fix aluminum profiles to the floor, can also be used to connect two aluminum profiles
at right angle

Material:
Aluminum die-cast

Specials:
Other surfaces, other colors on request

Surface:
Floor bracket: Plain

Tip:

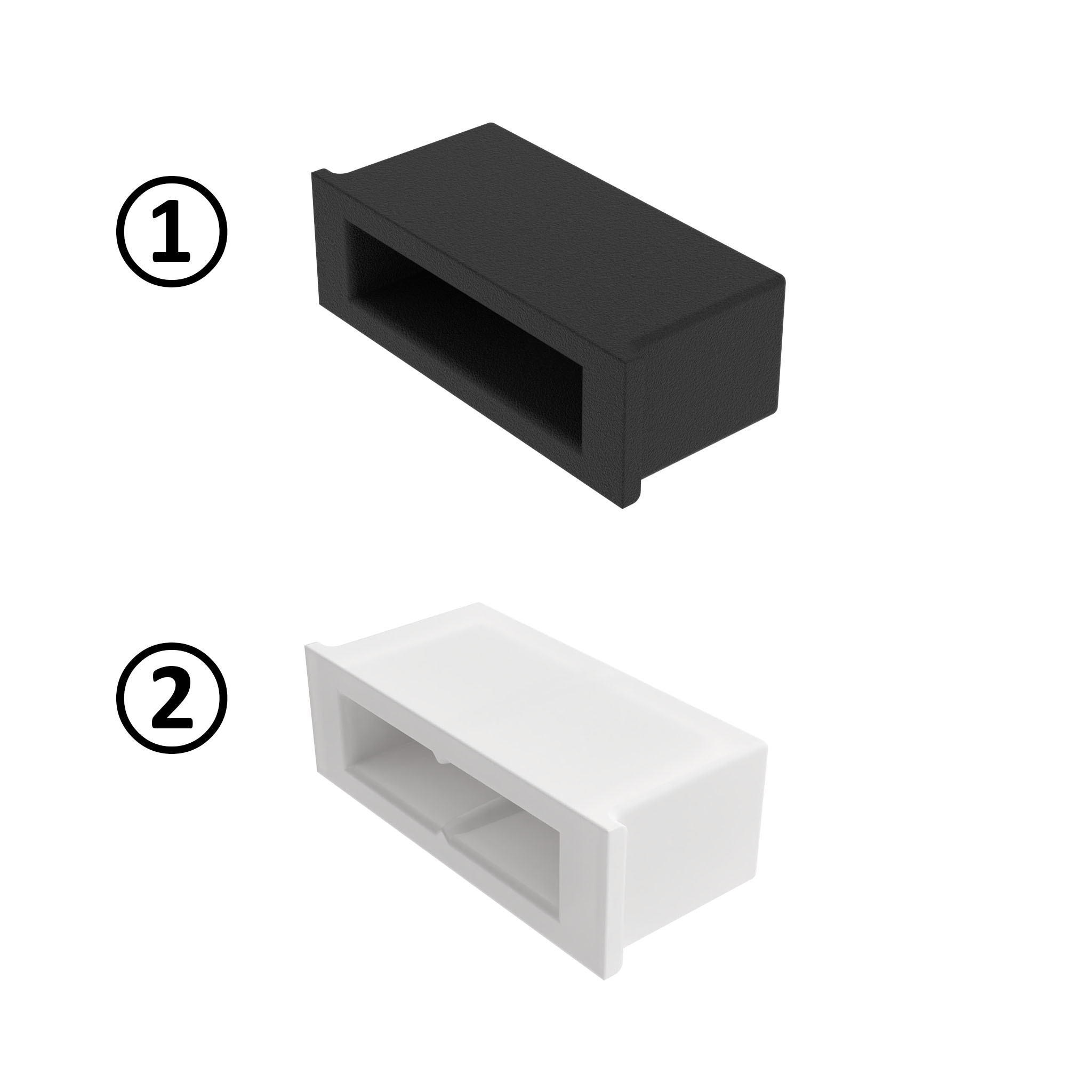

Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA1171L
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 76169910
Model: Aluminum die-cast, profile 30 and up
Pack Quantity: 10 pieces
Weight (g): 90.4
Zolltarifnummer: 76169910990
pA Number: 126948
