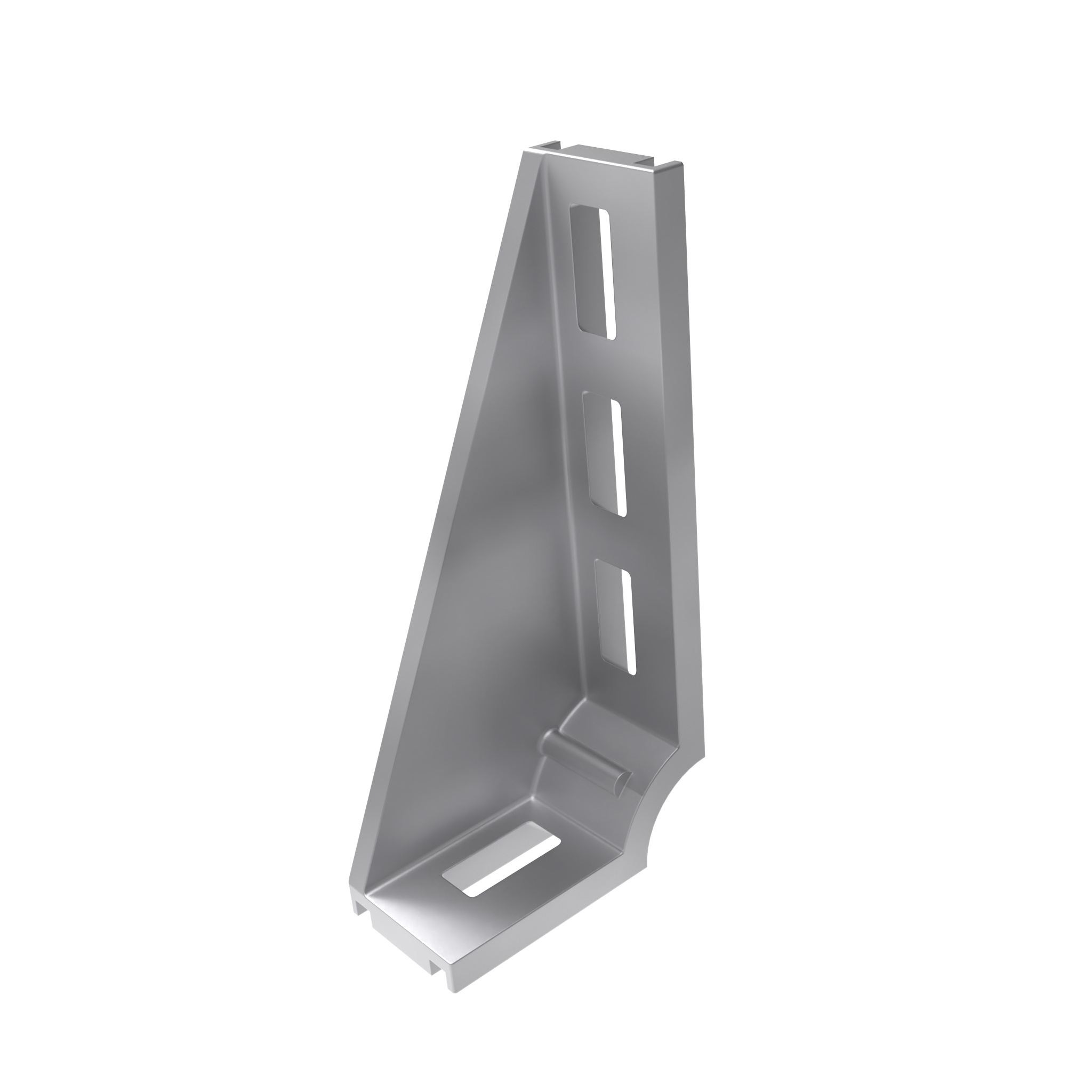

Floor Bracket AL 30
€0.00

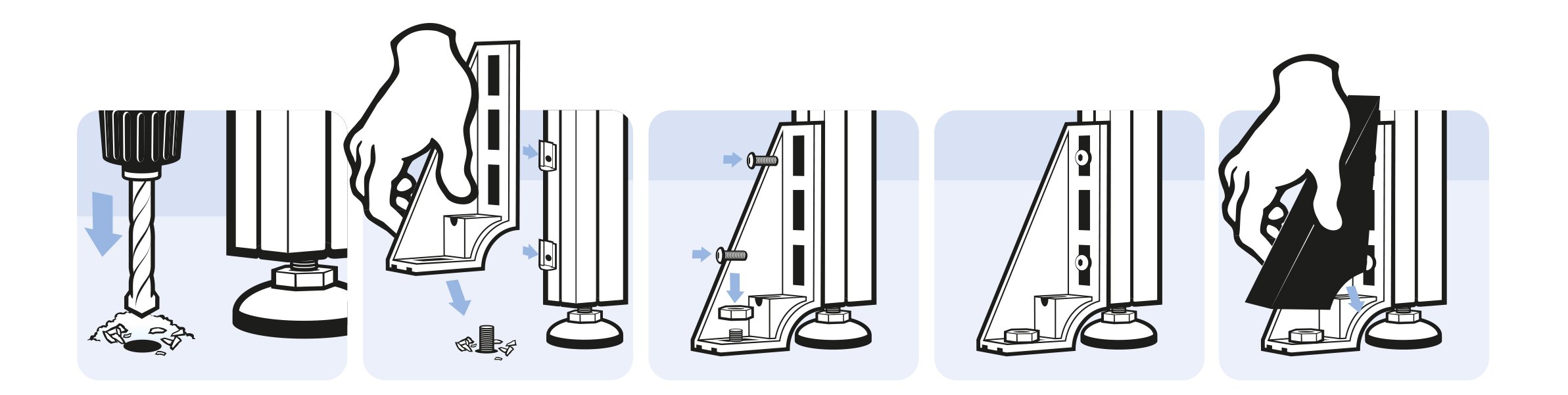

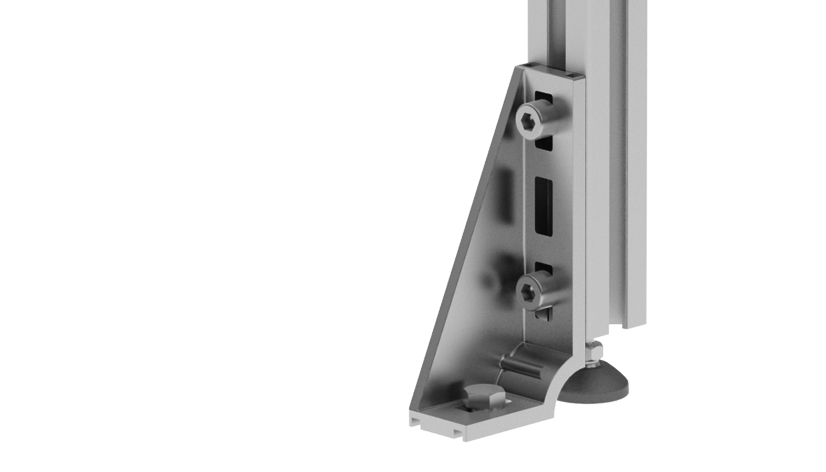

To securely fix aluminum profiles to the floor, can also be used to connect two aluminum profiles
at right angle
Aluminum die-cast
Surface:
Floor bracket: Plain
Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA1171L
Specials:
Other surfaces, other colors on request
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Aluminum die-cast, profile 30 and up |
| Weight (g): | 90.6 |
| ERP Number: | 126975 |
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
Certificates
Matching accessories
Material:Plastic PA, glass fiber reinforcedColor:Black, naturalTip:To 093W03 compatible Floor Brackets see 093W1171L To 093W02 compatible Alu Connection Angles see 093W303, 093W302, 093W421, 093W603, 093W806, 093W901 To 093W03 compatible Alu Connection Angles see 093W404, 093W451 To 093W03 compatible Zinc Connection Angles see 093W206N08R To 093W02 compatible Turning Angles see 093WG302N08Delivery Countries:Worldwide
Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Floor Bracket AL 30 see 093W1171LSpecials:Other colors on requestDelivery Countries:Worldwide
