Central Connector I, Slot 8
Part #:
099B081408S01
Product information "Central Connector I, Slot 8"
Color:
Cover cap: Gray ≈ RAL 7042
Delivery Countries:
Worldwide
Description:

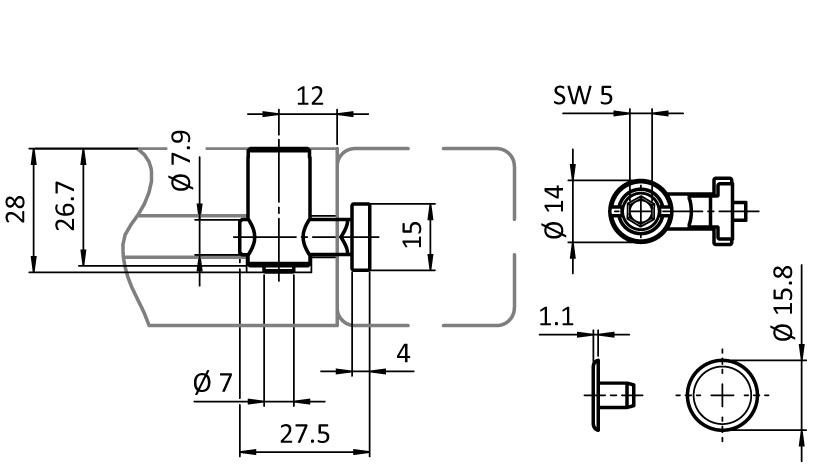

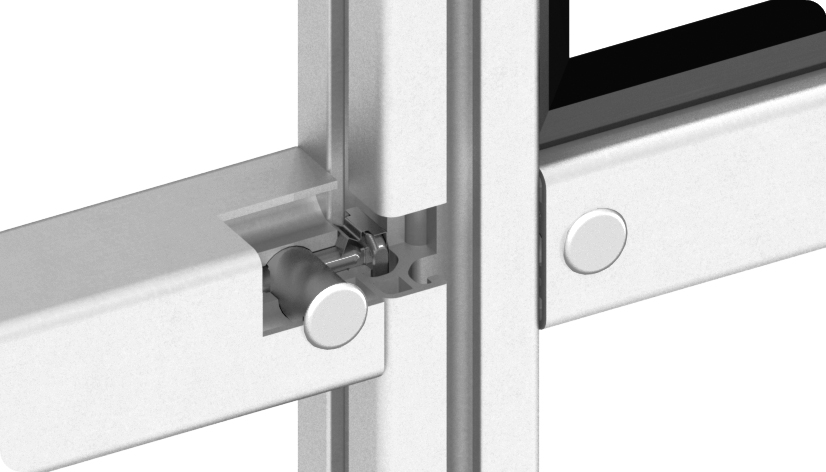

To connect two aluminum profiles at right angles; before the application a 28 mm deep blind hole with Ø 14.2 mm lateral and a 20 mm deep blind hole with Ø 8.2 mm frontal must be drilled; with cover cap
Material:
Connector: Steel
Clamp: Stainless steel
Cover caps: Plastic PP
Surface:
Connector: Zinc plated
Clip: Plain
Tip:
Compatible Radius Seal see 093RD84040R4; if used with the radius seal, the distance dimension of the bore hole should be reduced by the thickness of the radius seal
Cover cap: Gray ≈ RAL 7042
Delivery Countries:
Worldwide
Description:
To connect two aluminum profiles at right angles; before the application a 28 mm deep blind hole with Ø 14.2 mm lateral and a 20 mm deep blind hole with Ø 8.2 mm frontal must be drilled; with cover cap
Material:
Connector: Steel
Clamp: Stainless steel
Cover caps: Plastic PP
Surface:
Connector: Zinc plated
Clip: Plain
Tip:
Compatible Radius Seal see 093RD84040R4; if used with the radius seal, the distance dimension of the bore hole should be reduced by the thickness of the radius seal
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 73269098 |
| ERP Number: | 142569 |
| Model: | Steel, profile 40, slot 8 |
| Pack Quantity: | 10 pieces |
| Weight (g): | 42.8 |
| Zolltarifnummer: | 73269098900 |
