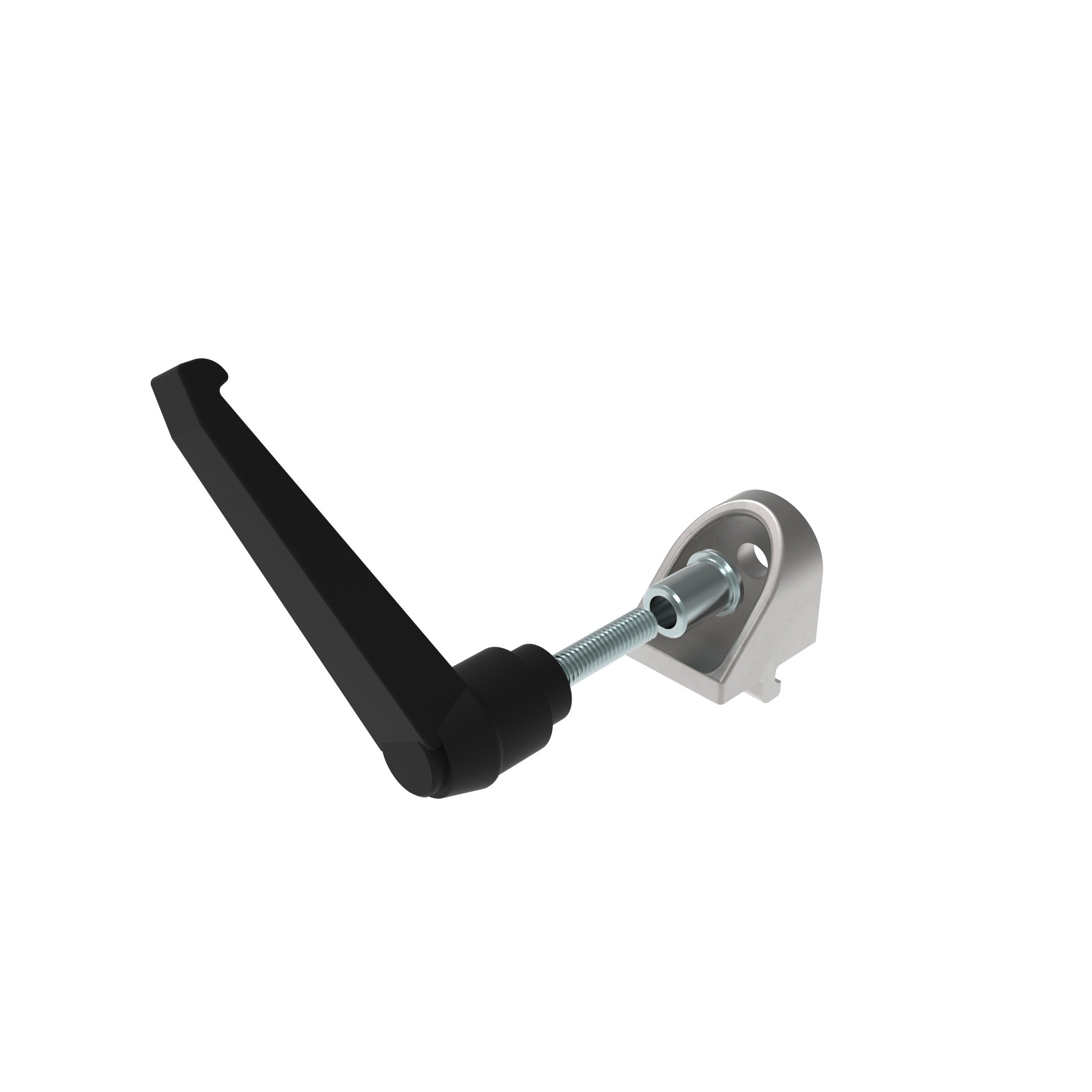

Clamping Angle I 30 with Locking Lever, Slot 6
Part #:
093WKF301N06R
Product information "Clamping Angle I 30 with Locking Lever, Slot 6"
Color:
Alu color
Delivery Countries:
Worldwide
Description:

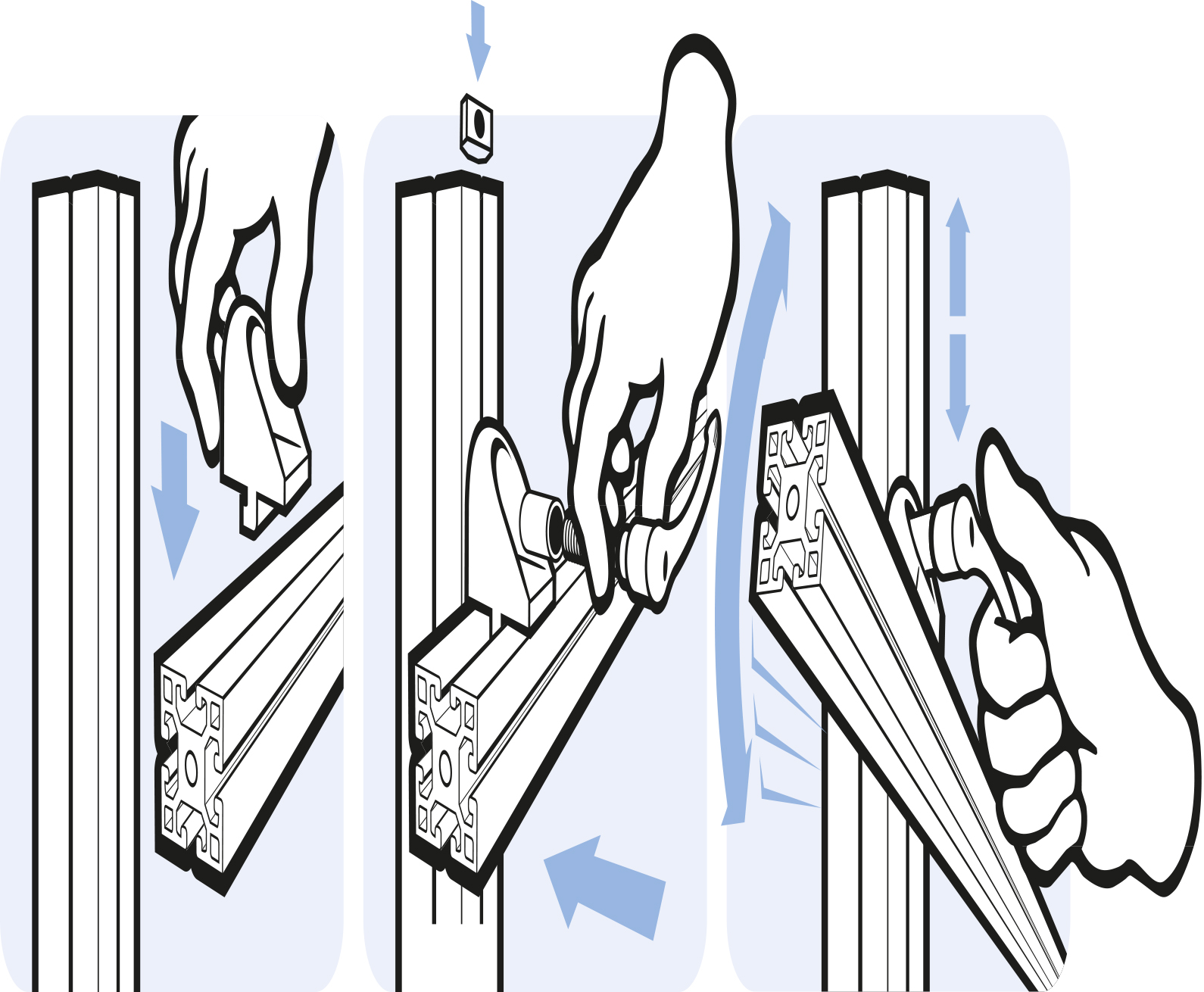

To connect aluminum profiles easily and with flexibility
Material:
Bracket: Zinc die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced
Mechanic: Blue-galvanised steel (RoHS conform)
Specials:
Other surfaces, other colors on request
Surface:
Plain / powder coated
Tip:
Other slots on request
Alu color
Delivery Countries:
Worldwide
Description:
To connect aluminum profiles easily and with flexibility
Material:
Bracket: Zinc die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced
Mechanic: Blue-galvanised steel (RoHS conform)
Specials:
Other surfaces, other colors on request
Surface:
Plain / powder coated
Tip:
Other slots on request
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 79070000 |
| ERP Number: | 101088 |

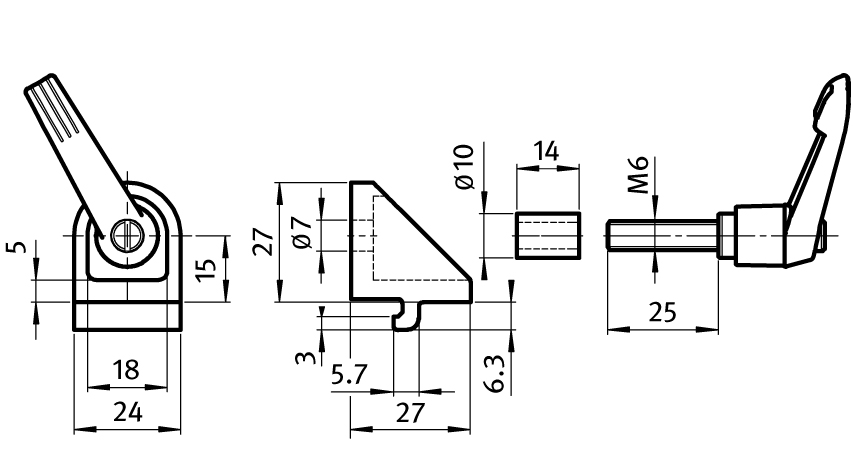

| Fastening: | Using M6 screw |
| Model: | Zinc die-cast |
| Pack Quantity: | 10 pieces |
| Weight (g): | 64.0 |
| Zolltarifnummer: | 79070000900 |
Certificates
