Clip Block 13, Gray

Product information "Clip Block 13, Gray"

Color:
Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

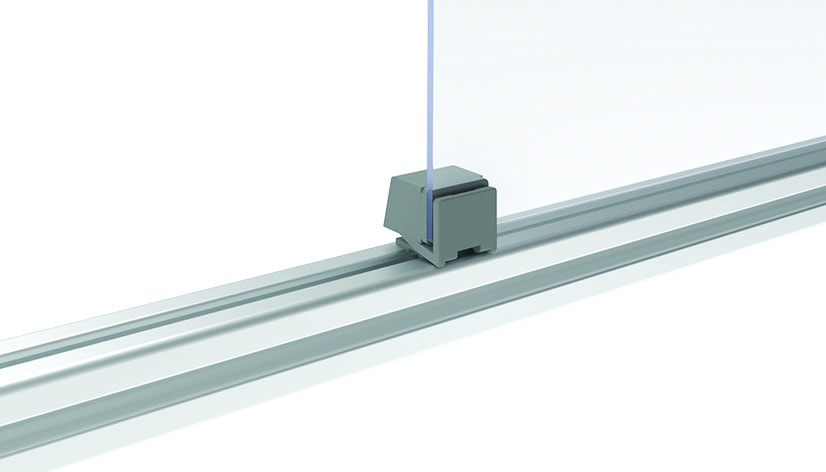

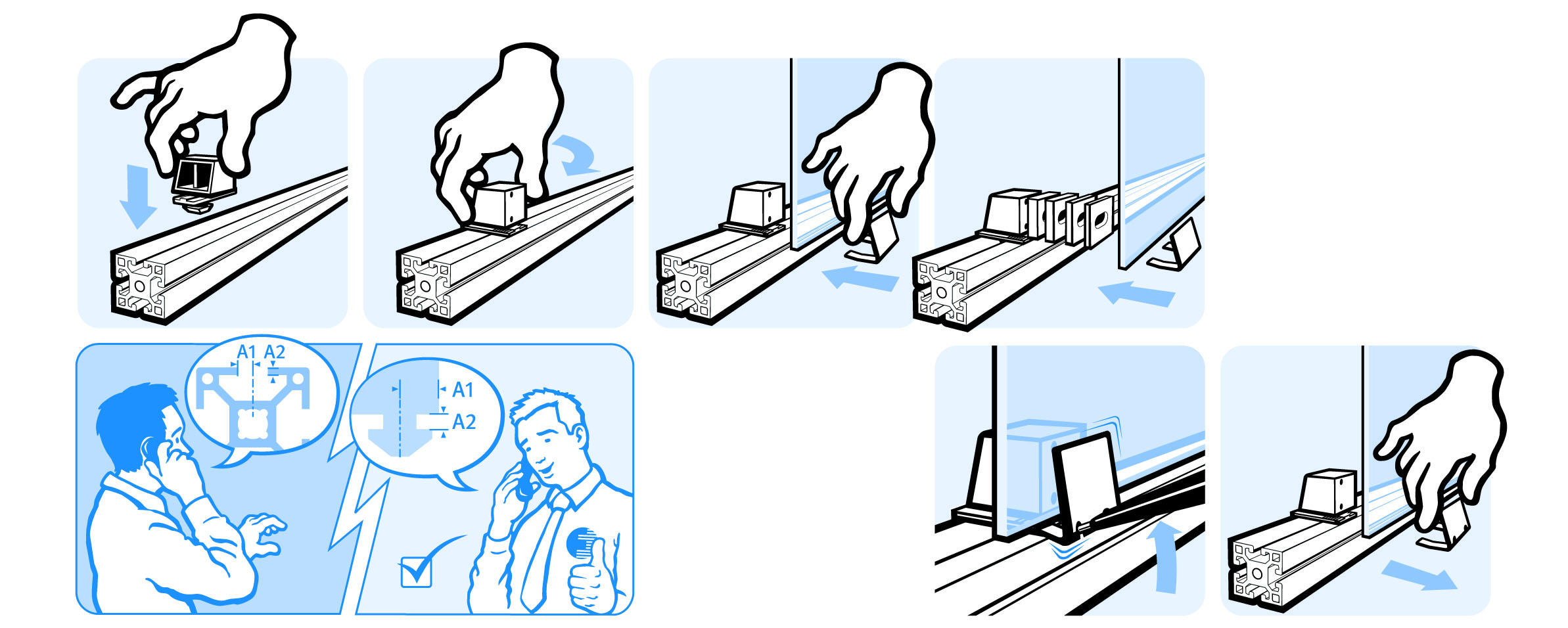

To attach panels to aluminum profiles without screws or tools

Material:
Plastic PA, glass fiber reinforced

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094901S03

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Fixation Span: Panel units with a thickness of 1 - 6 mm
Model: Plastic PA, Slot 5
Pack Quantity: 100 pieces
Weight (g): 3.4

Variants

Product ID Color Profile Slot N (mm) D (mm)
094311S02 I 5
094901S03 - 1 Gray ≈ RAL 7042 *1.0
094902S03 - 1 Gray ≈ RAL 7042 *2.0
094903S03 - 1 Gray ≈ RAL 7042 3.0
094904S03 - 1 Gray ≈ RAL 7042 4.0
