Spacer, for Uni Blocks / Clip Blocks 13, Gray

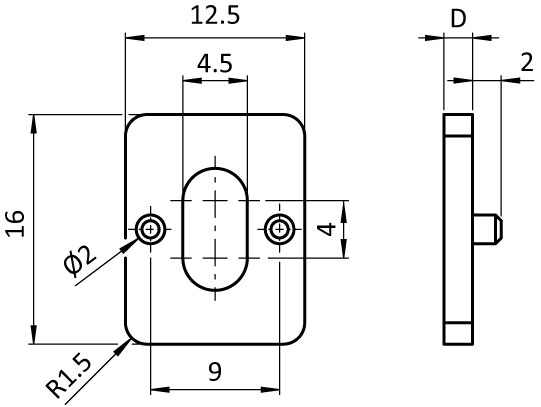

Spacer, for Uni Blocks / Clip Blocks 13, Gray – technical drawing

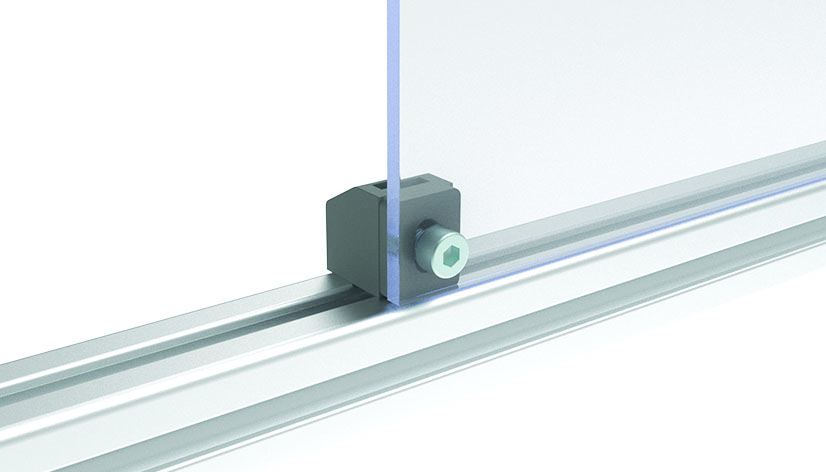

Spacer, for Uni Blocks / Clip Blocks 13, Gray – application example

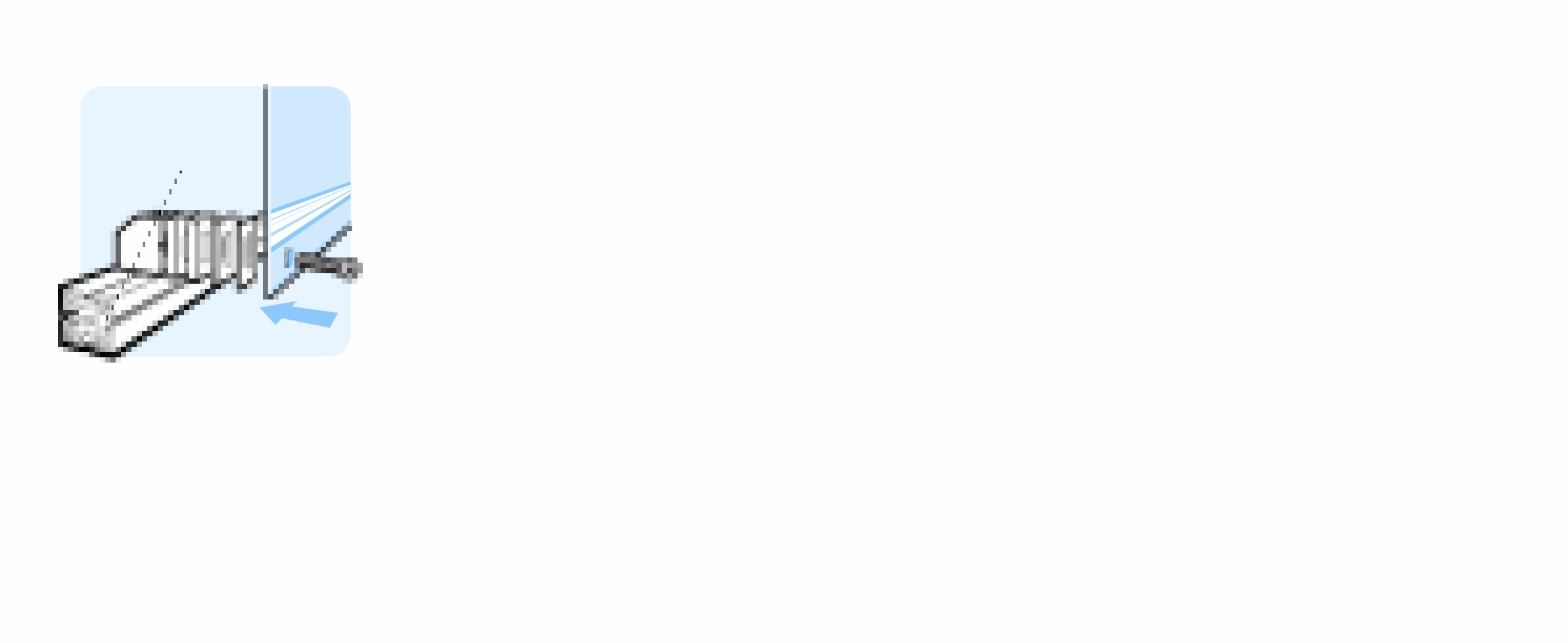

Spacer, for Uni Blocks / Clip Blocks 13, Gray – assembly graphic

€0.00

D (mm)

*1.0

*2.0

3.0

4.0

Color

Gray ≈ RAL 7042

Part #: 094901S03

Pack Quantity: 100 pieces

Description:
For height adjustment of the contact surfaces, for flush mounting of panels

Material:
Plastic PA

Color:
Gray

Tip:
Compatible Uni Block see 094411M4S03,
Compatible Clip Block see 094311S02

Tip 2:
*Please note: You need each two pieces 093048!

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces
Model:	Plastic PA
Weight (g):	0.5
ERP Number:	141308

Variants

Part #	D (mm)	Color
094901S03	*1.0	Gray ≈ RAL 7042
094902S03	*2.0	Gray ≈ RAL 7042
094903S03	3.0	Gray ≈ RAL 7042
094904S03	4.0	Gray ≈ RAL 7042

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates

Tags

Profile Type	Profile Type I
Profile Form	T-slot Profiles
