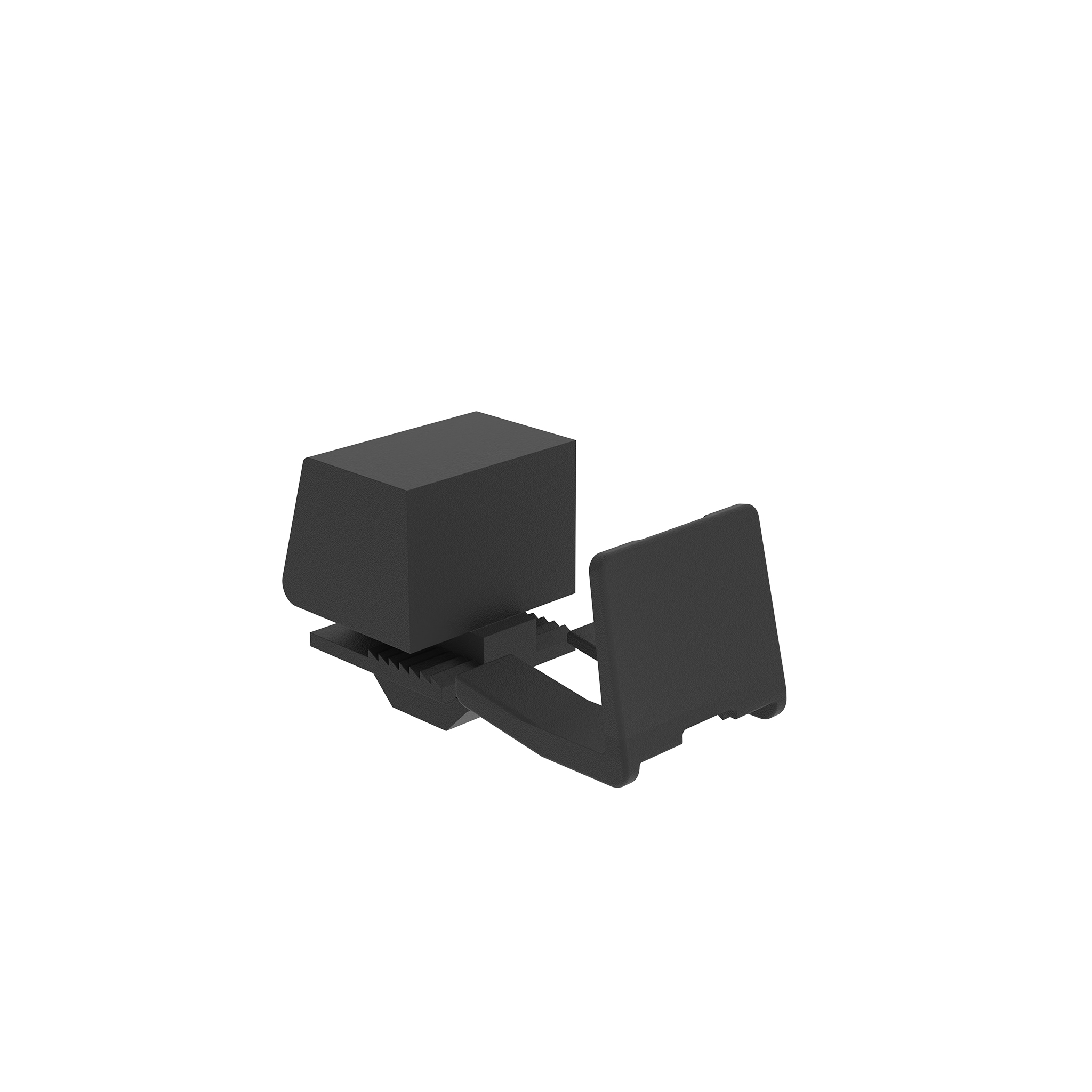

Clip Block 14, Black

Description:
To attach panels to aluminum profiles without screws or tools

Material:
Plastic PA, glass fiber reinforced

Color:
Black

Tip:
Compatible Spacer see 094102K

Specials:
Customized hammer, other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces
Model:	Plastic PA, Slot 8, 10
Weight (g):	7.4
Fixation Span:	Panel units with a thickness of 1 - 9 mm
ERP Number:	101350

Variants

Part #	Profile	L (mm)	Slot N (mm)	A2 (Profile) (mm)	A1 (mm)
094204	I	19.5	8	4.5 (4.5)	5.0
094203	I	26.0	8	4.5 (4.5)	11.5
094202	B	19.5	8	2.2 (2.2)	7.0
094205	B	26.0	10	5.8 (6.0)	14.0

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates

Tags

Profile Type	Profile Type B
Slot Size	Slot size 8
Profile Form	T-slot Profiles

Matching accessories

Spacer, for Clip Blocks 14, Black

D (mm): *2.0 Color: Black

Description:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Clip Block see 094204 and 094204SLTip 2:* No further spacers can be added!Delivery Countries:Worldwide
