Clip Block 14, Black

Product information "Clip Block 14, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

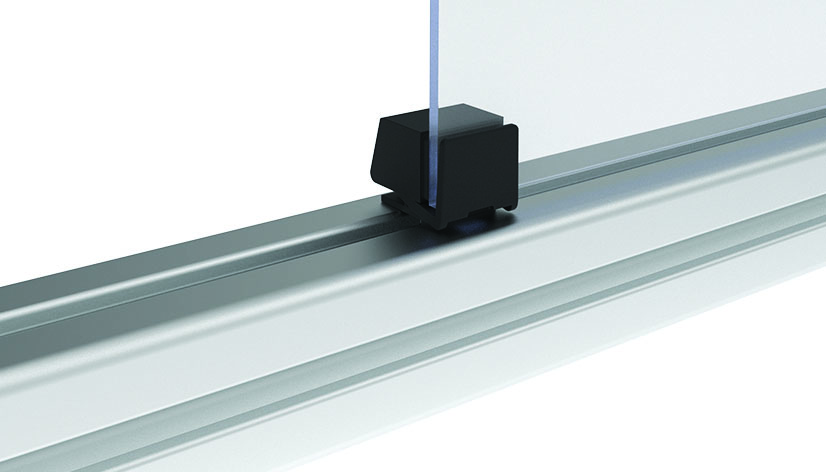

To attach panels to aluminum profiles without screws or tools

Material:
Plastic PA, glass fiber reinforced

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102K
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Customs Tariff Number Export: 39269097
Fixation Span: Panel units with a thickness of 1 - 9 mm
Model: Plastic PA, Slot 8, 10
Pack Quantity: 100 pieces
Weight (g): 8.3
Zolltarifnummer: 39269097900
pA Number: 101354

Variants

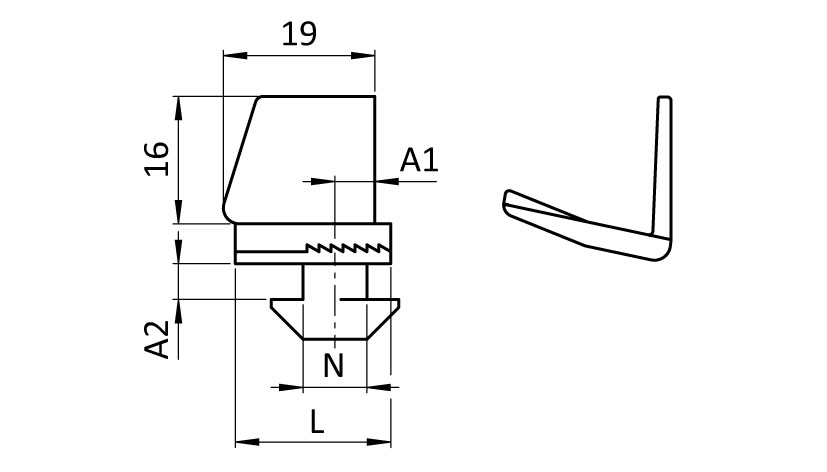

Product ID Color D (mm) Slot N (mm) L (mm) Profile A2 (Profile) (mm) A1 (mm)
094202 8 19.5 B 2.2 (2.2) 7.0
094203 8 26.0 I 4.5 (4.5) 11.5
094204 8 19.5 I 4.5 (4.5) 5.0
094205 10 26.0 B 5.8 (6.0) 14.0
