Comfort Handle

Product information "Comfort Handle"

Color:
Black

Delivery Countries:
Worldwide

Description:

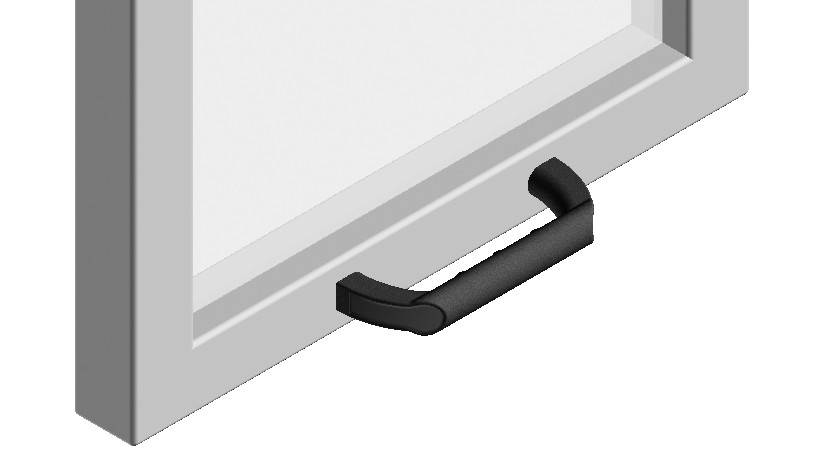

To mount on doors, flaps and aluminum profiles

Fastening:

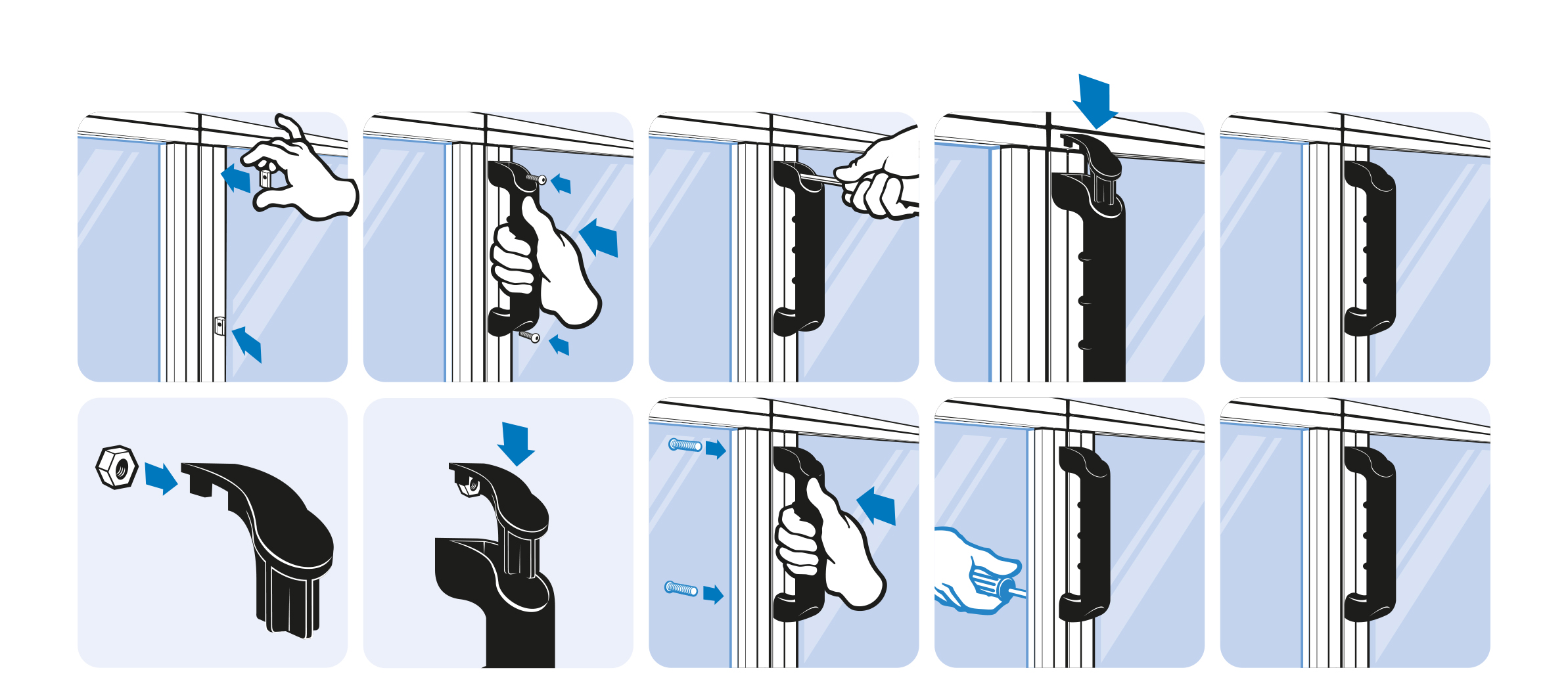

From the front with hexagon screws, from the back with screws and with nuts inserted into the cover caps

Material:
Plastic PA, glass ball reinforced

Specials:
Other colors on request

Tip:
Compatible Cover Cap for Comfort and System Handle (Set) see 092301
Pack Quantity: 10 pieces
Model: Plastic PA, 120, 160 and 200 mm
Weight (g): 26.2
ERP Number: 112188

Global keywords / tags:

Profile Type Profile Type B, Profile Type I
Application Area Machinery & Plant Engineering

Variants

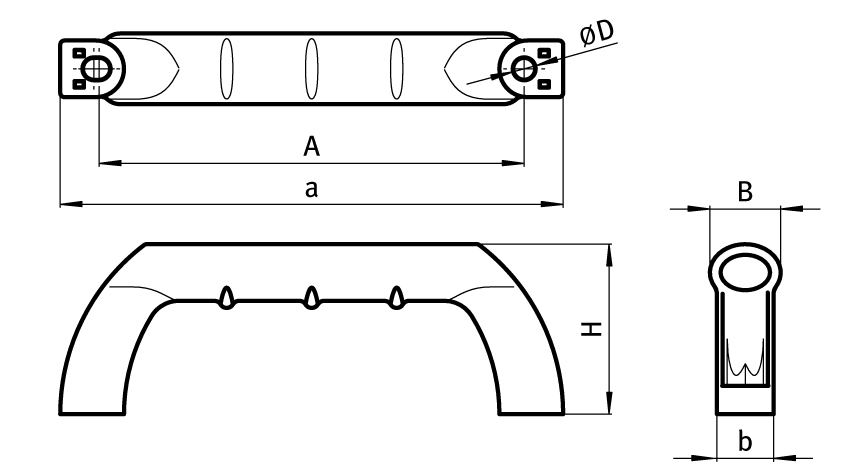

Part # D (mm) Version H (mm) A (mm) B (mm) Fig. b (mm) for Screw a (mm)
6.2 120 48.0 120.0 20.0 ① 16.0 M6 142.0
8.2 160 60.0 160.0 30.0 ② 26.0 M8 188.0
8.2 200 75.0 200.0 38.0 ③ 36.0 M8 236.0

CAD Downloads

Classifications

ECLASS 6.0
23010103
ECLASS 7.0
23010103
ECLASS 8.0
23010103
ECLASS 9.0
23010103
ECLASS 10.0
23010103
ECLASS 11.0
23010103
ECLASS 12.0
23010103
ECLASS 13.0
23010103
Zolltarifnummer
39269097900
Customs Tariff Number Export
39269097
