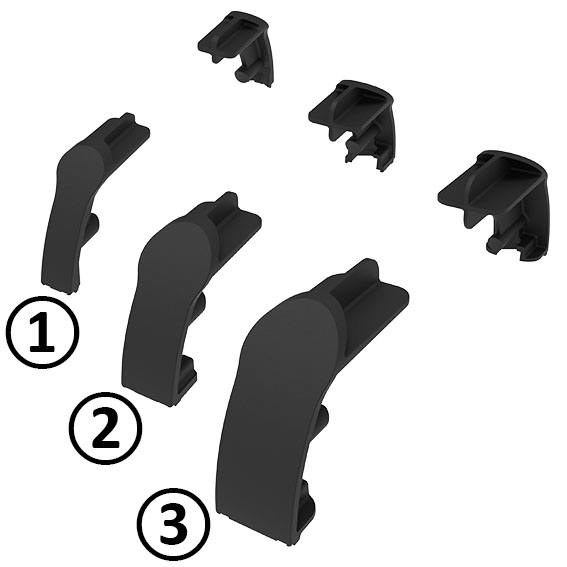

Cover Cap for Comfort and System Handle (Set)

Product information "Cover Cap for Comfort and System Handle (Set)"

Color:
Black

Delivery Countries:
Worldwide

Description:

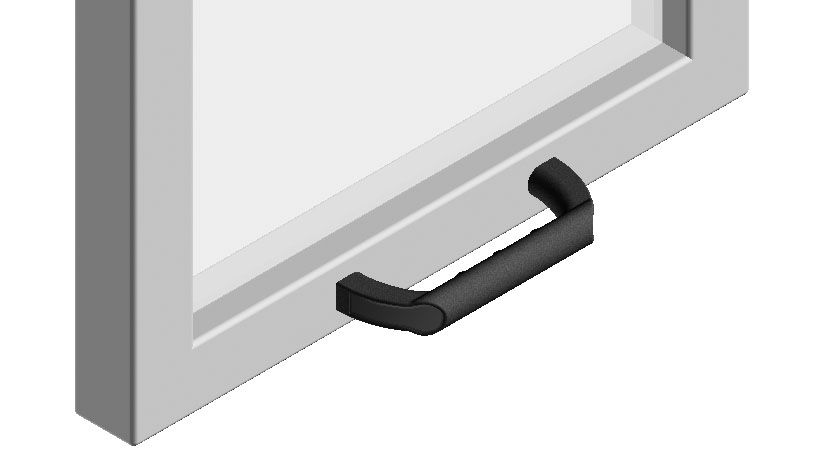

To cover the end of the handle

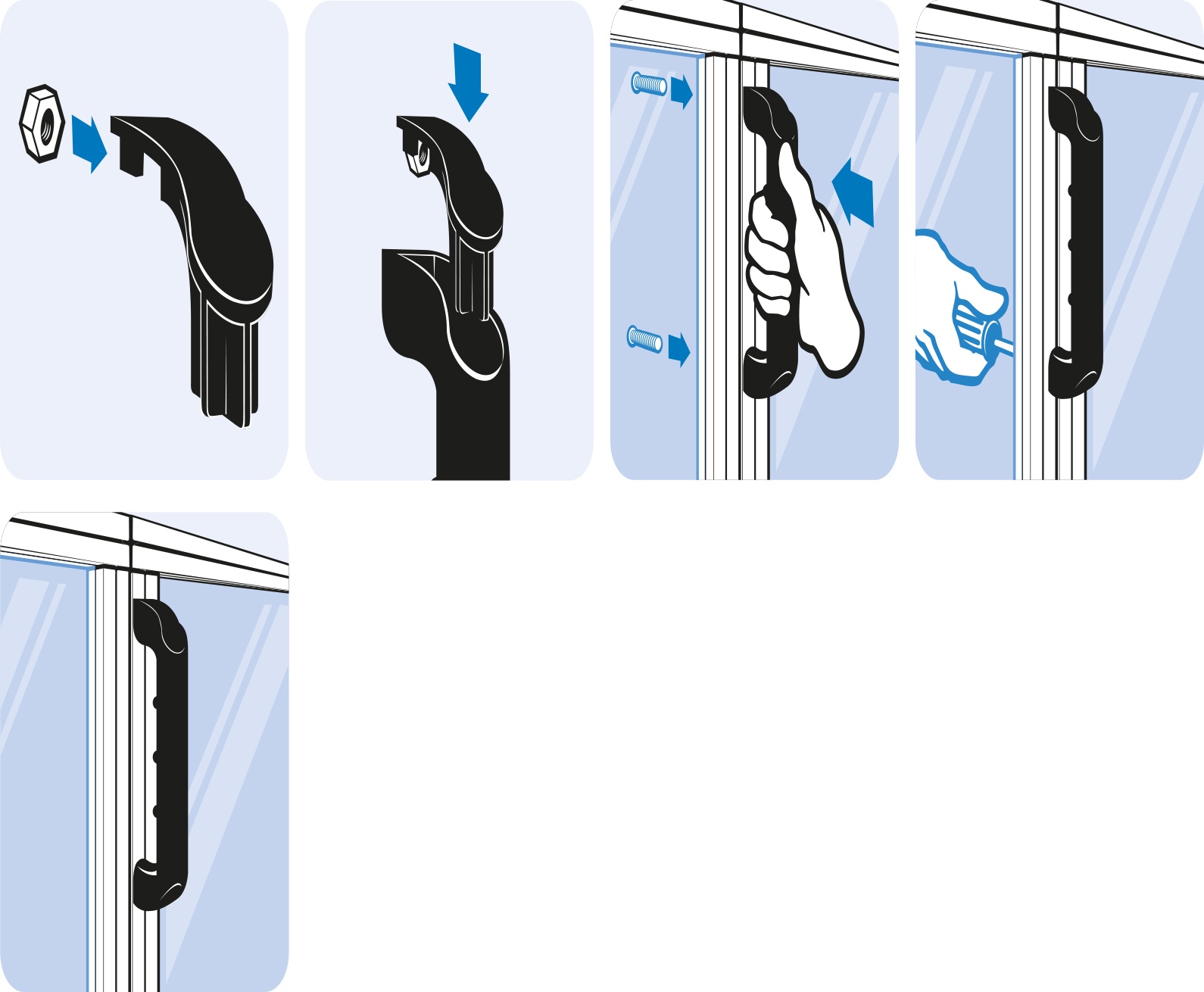

By inserting a nut into the cover cap, mounting the handle from the back is possible

Material:
Plastic PA, glass ball reinforced

Specials:
Other colors on request

Tip:
Please note: 1 set = 2 pieces

Tip 2:
Compatible Comfort Handle see 092300
Compatible System Handle see 092013
Model: Plastic PA
Pack Quantity: 10 sets
Customs Tariff Number Export: 39269097
Weight (g): 10.6
(ECLASS 6.0): 23019104
(ECLASS 7.0): 23019190
(ECLASS 8.0): 23019190
(ECLASS 9.0): 23019190
(ECLASS 10.0): 23019190
(ECLASS 11.0): 23010192
(ECLASS 12.0): 23010192
(ECLASS 13.0): 23010192
ERP Number: 112191
Zolltarifnummer: 39269097900

Variants

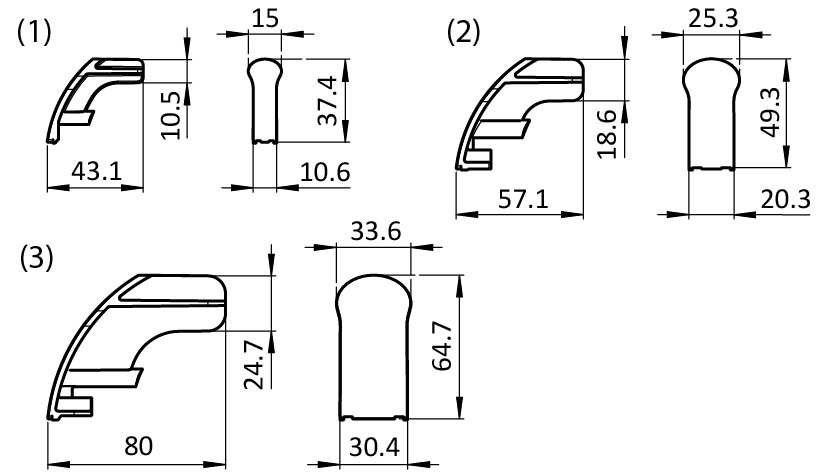

Part # Fig. Version for Nut Pack Quantity
092301 120 M6 10 sets
092303 160 M8 10 sets
092305 200 M8 10 sets
