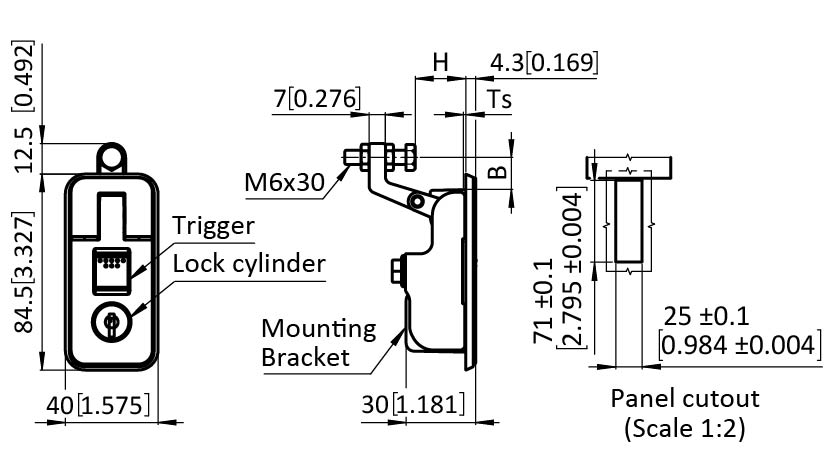

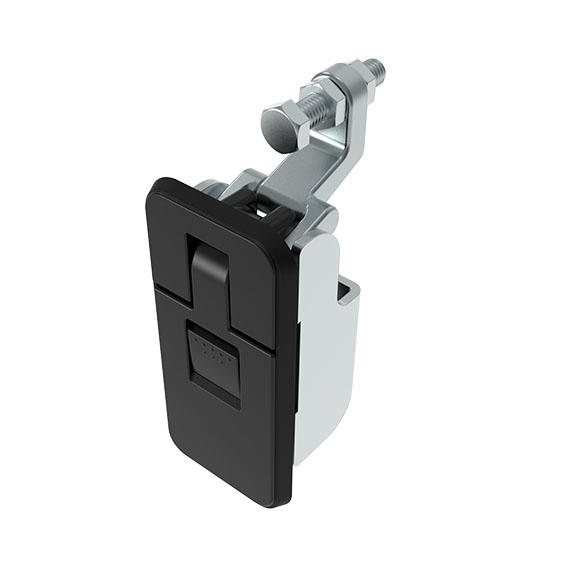

Compression Lever Latch 71 x 25

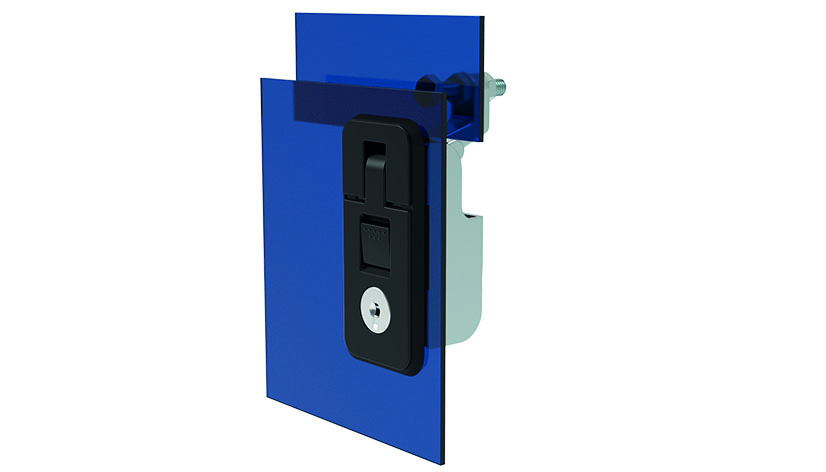

Compression Lever Latch 71 x 25 – application example

€0.00

H (mm)

1 - 25

15 - 30

Color

Black

Chrome

Insert type

Key locking (Keyed FH751) with shutter

Non-locking

Part #: 0810499

Pack Quantity: 10 pieces

Product information "Compression Lever Latch 71 x 25"

Color:
Handle: Black / chrome
Trigger: Black / chrome
Housing: Black / chrome
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Handle: Zinc die-cast
Trigger: Zinc die-cast
Housing: Zinc die-cast
Mounting bracket: Steel
Screws: Steel
Arm: Zinc die-cast
Nut: Steel
Seals: Rubber NBR

Surface:
Handle: Powder coated / chrome plated
Trigger: Powder coated / chrome plated
Housing: Powder coated / chrome plated
Mounting bracket: Zinc plated
Screws: Zinc plated
Arm: Zinc plated
Nut: Zinc plated

Pack Quantity:	10 pieces
Weight (g):	291.4
ERP Number:	137150

Global keywords / tags:

Application Area	Machinery & Plant Engineering

Variants

Part #	H (mm)	Color	Insert type
0810498	1 - 25	Black	Non-locking
0810499	1 - 25	Chrome	Non-locking
0810500	1 - 25	Black	Key locking (Keyed FH751) with shutter
0810501	1 - 25	Chrome	Key locking (Keyed FH751) with shutter
0810502	15 - 30	Black	Non-locking
0810503	15 - 30	Chrome	Non-locking
0810504	15 - 30	Black	Key locking (Keyed FH751) with shutter
0810505	15 - 30	Chrome	Key locking (Keyed FH751) with shutter

CAD Downloads

Classifications

ECLASS 6.0: 23199090
ECLASS 7.0: 23199090
ECLASS 8.0: 23199090
ECLASS 9.0: 23199090
ECLASS 10.0: 23199090
ECLASS 11.0: 23199090
ECLASS 12.0: 23199090
ECLASS 13.0: 23199090
Customs Tariff Number Export: 83014090
