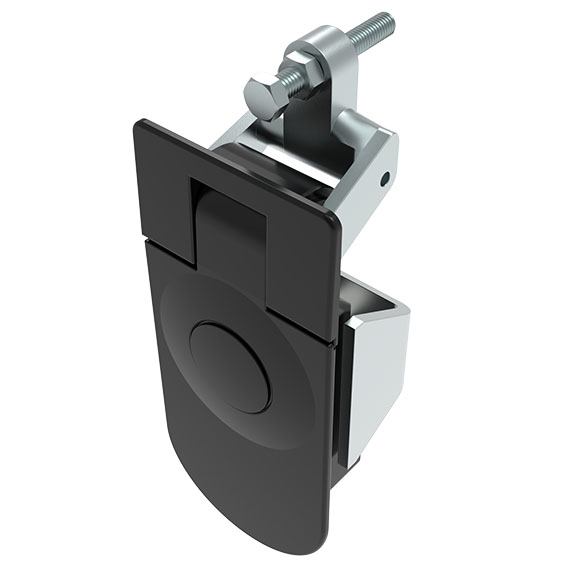

Compression Lever Latch 90 x 35, Non-Locking

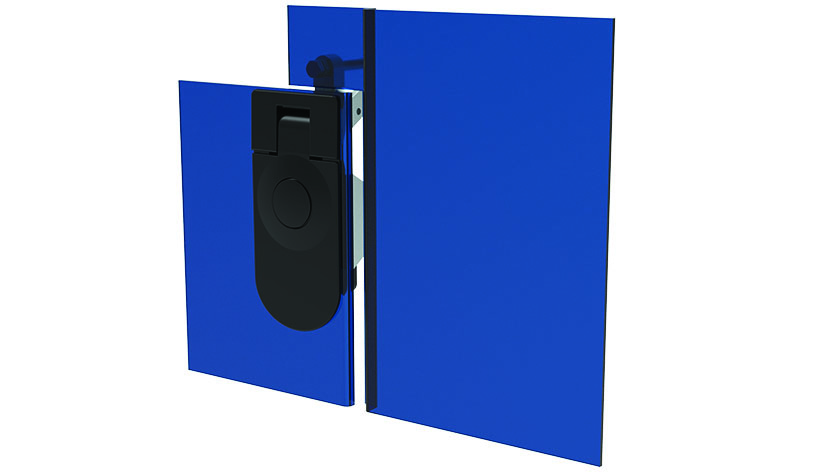

Compression Lever Latch 90 x 35, Non-Locking – application example

Product information "Compression Lever Latch 90 x 35, Non-Locking"

Color:
Handle: Black
Trigger: Black
Housing: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Handle: Zinc die-cast
Trigger: Zinc die-cast
Housing: Zinc die-cast
Mounting bracket: Steel
Screws: Steel
Arm: Zinc die-cast
Nut: Steel

Surface:
Handle: Powder coated
Trigger: Powder coated
Housing: Powder coated
Mounting bracket: Zinc plated
Screws: Zinc plated
Arm: Zinc plated
Nut: Zinc plated

Pack Quantity:	10 pieces
Weight (g):	431.5
ERP Number:	121641

Global keywords / tags:

Application Area	Machinery & Plant Engineering

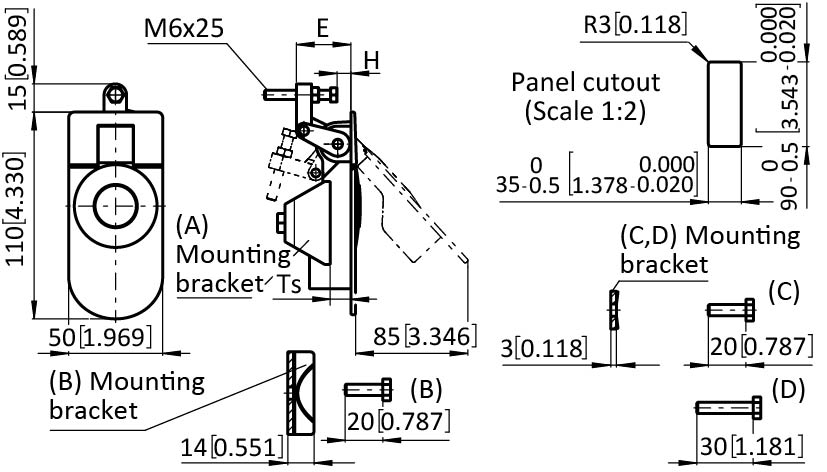

Variants

Part #	H (mm)	E (mm)	Fastening	Ts (mm)
0810072	1 - 14	29.0	A	1 - 11
0810073	14 - 29	44.0	A	1 - 11
0810074	29 - 45	60.0	A	1 - 11
0810075	45 - 57	72.0	A	1 - 11
0813004	1 - 14	29.0	B	11 - 21
0813012	14 - 29	44.0	B	11 - 21
0813016	14 - 29	44.0	C	21 - 31
0813024	29 - 45	60.0	B	11 - 21
0813028	29 - 45	60.0	C	21 - 31
0813032	29 - 45	60.0	D	31 - 41
0813040	45 - 57	72.0	B	11 - 21
0813044	45 - 57	72.0	C	21 - 31
0813048	45 - 57	72.0	D	31 - 41
