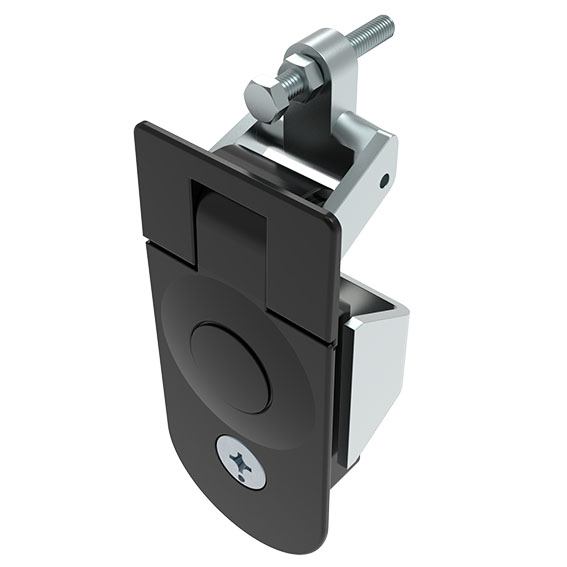

Compression Lever Latch 90 x 35, Phillips Drive

Product information "Compression Lever Latch 90 x 35, Phillips Drive"

Color:
Handle: Black
Trigger: Black
Housing: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

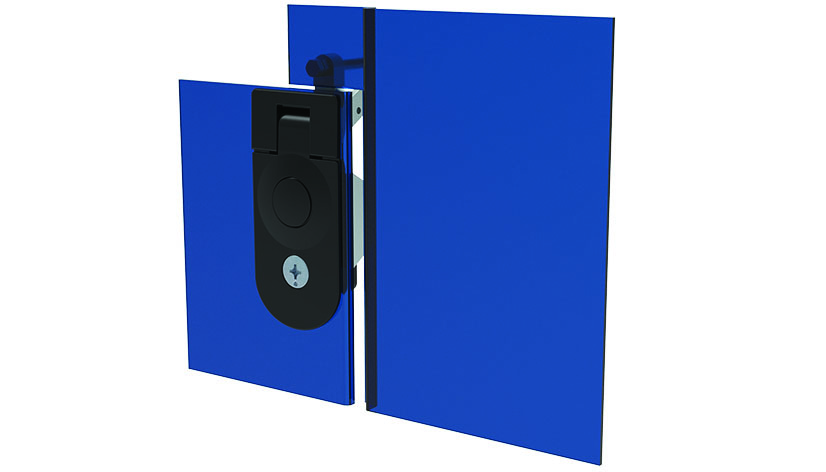

For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Handle: Zinc die-cast
Trigger: Zinc die-cast
Housing: Zinc die-cast
Mounting bracket: Steel
Screws: Steel
Arm: Zinc die-cast
Nut: Steel

Surface:
Handle: Powder coated
Trigger: Powder coated
Housing: Powder coated
Mounting bracket: Zinc plated
Screws: Zinc plated
Arm: Zinc plated
Nut: Zinc plated

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Pack Quantity: 10 pieces
Weight (g): 444.4

Variants

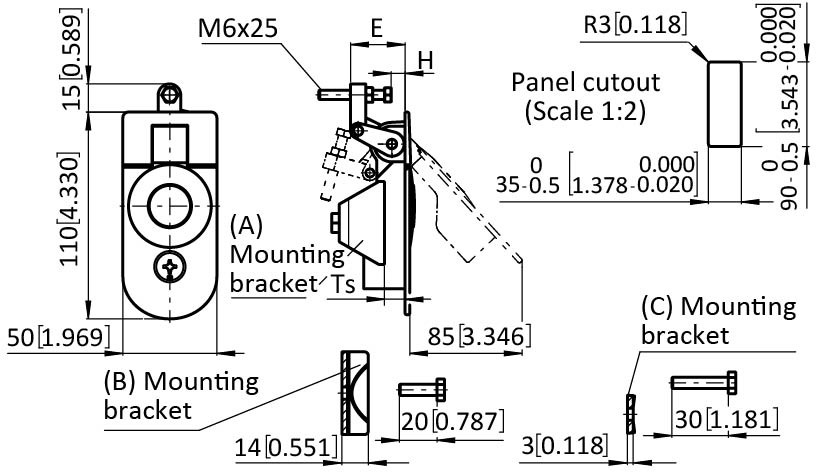

Product ID Fastening Ts (mm) H (mm) E (mm)
0813003 A 1 - 11 1 - 14 29.0
0813007 B 11 - 21 1 - 14 29.0
0813011 A 1 - 11 14 - 29 44.0
0813015 B 11 - 21 14 - 29 44.0
0813019 C 21 - 31 14 - 29 44.0
0813023 A 1 - 11 29 - 45 60.0
0813027 B 11 - 21 29 - 45 60.0
0813031 C 21 - 31 29 - 45 60.0
0813035 D 31 - 41 29 - 45 60.0
0813039 A 1 - 11 45 - 57 72.0
0813043 B 11 - 21 45 - 57 72.0
0813047 C 21 - 31 45 - 57 72.0
0813051 D 31 - 41 45 - 57 72.0
