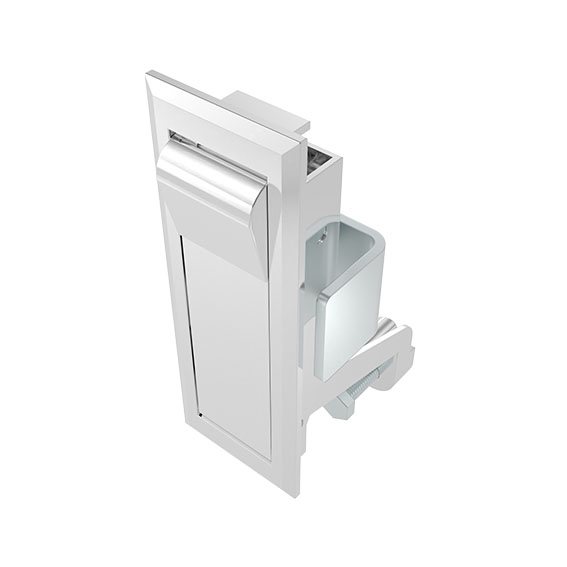

Compression Trigger Latch 76.5 x 23.5

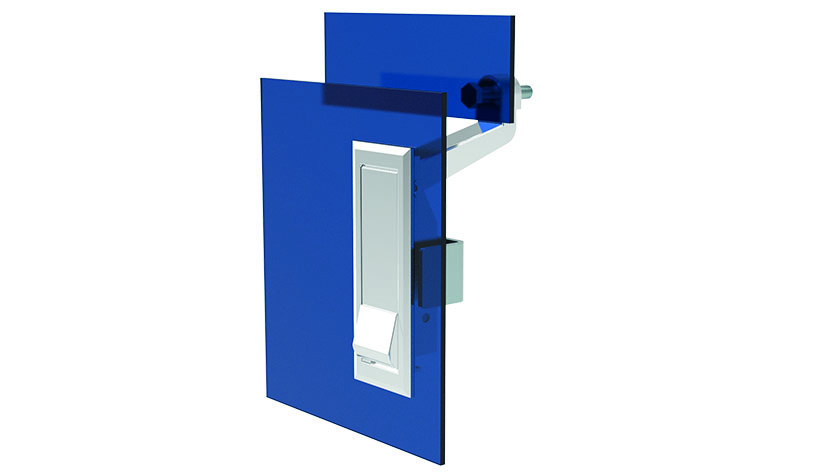

Compression Trigger Latch 76.5 x 23.5 – application example

Product information "Compression Trigger Latch 76.5 x 23.5"

Color:
Handle: Black / chrome / -
Trigger: Black / chrome / -
Housing: Black / chrome / -

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Handle: Zinc die-cast / stainless steel SS304
Trigger: Zinc die-cast / stainless steel SS304
Housing: Zinc die-cast / stainless steel SS304
Mounting bracket: Steel
Screws: Steel / stainless steel SS304
Return spring: Spring steel SS9260
Pin: Steel

Surface:
Handle: Powder coated / chrome plated / plain
Trigger: Powder coated / chrome plated / plain
Housing: Powder coated / chrome plated / plain
Mounting bracket: Zinc plated
Screws: Zinc plated
Pin: Zinc plated

Pack Quantity:	10 pieces
Weight (g):	132.7
ERP Number:	121651

Variants

Part #	Material	H (mm)	Surface	Color
0810093	Zinc die-cast	23 - 46	Chrome plated	Chrome
0810093E	Stainless steel SS304	23 - 46	-	-
0810093S01	Zinc die-cast	23 - 46	Powder coated	Black
0810093S03	Zinc die-cast	35 - 58	Powder coated	Black
