Compression Trigger Latch 86 x 25, Black, NEMA 4

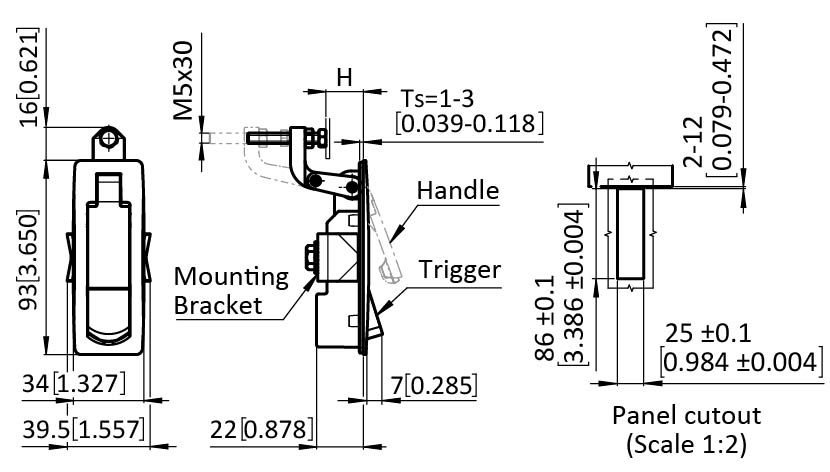

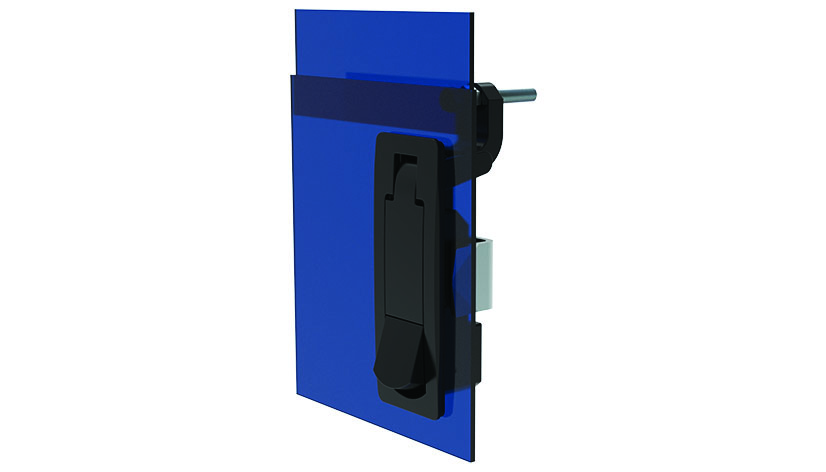

Compression Trigger Latch 86 x 25, Black, NEMA 4 – application example

Product information "Compression Trigger Latch 86 x 25, Black, NEMA 4"

Color:
Handle: Black
Trigger: Black
Housing: Black
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Handle: Zinc die-cast
Trigger: Zinc die-cast
Housing: Zinc die-cast
Mounting bracket: Steel
Screws: Steel
Arm: Zinc die-cast
Nut: Steel
Seals: Rubber NBR

Surface:
Handle: Powder coated
Trigger: Powder coated
Housing: Powder coated
Mounting bracket: Zinc plated
Screws: Zinc plated
Arm: Zinc plated
Nut: Zinc plated

Pack Quantity:	10 pieces
Weight (g):	243.6
IP Rating:	IP65 / NEMA 4
ERP Number:	146253

Global keywords / tags:

Application Area	Machinery & Plant Engineering

Variants

Part #	H (mm)	Insert type	Trigger	Arm
0850240	1 - 24	Non-locking	Raised	Short
0850241	1 - 24	Non-locking	Flush	Short
0850242	1 - 24	Key locking (Keyed FH751)	Raised	Short
0850243	1 - 24	Phillips Insert	Raised	Short
0850244	1 - 24	Key locking (Keyed FH751) with shutter	Raised	Short
0850245	1 - 24	Female hexagon 4.5 mm	Raised	Short
0850246	23 - 46	Non-locking	Raised	Long
0850247	23 - 46	Non-locking	Flush	Long
0850248	23 - 46	Key locking (Keyed FH751)	Raised	Long
0850249	23 - 46	Phillips Insert	Raised	Long
0850250	23 - 46	Key locking (Keyed FH751) with shutter	Raised	Long
0850251	23 - 46	Female hexagon 4.5 mm	Raised	Long
