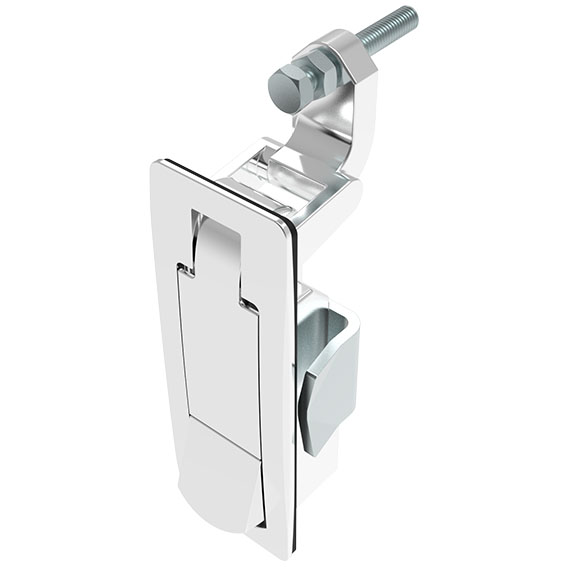

Compression Trigger Latch 86 x 25, Chrome

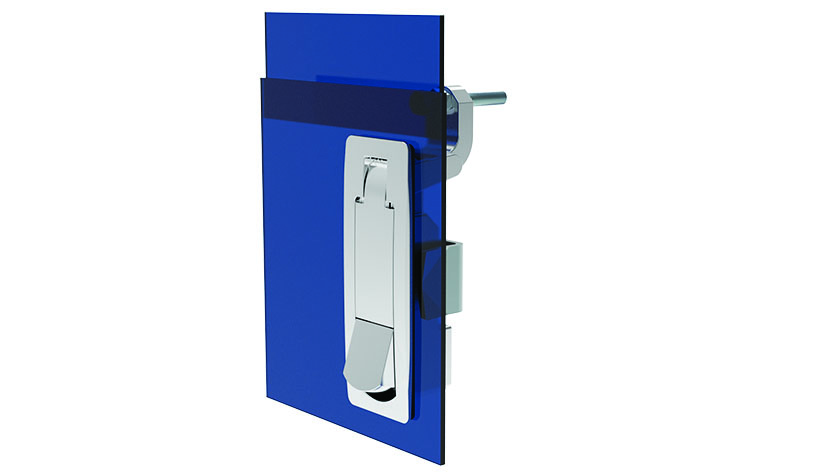

Compression Trigger Latch 86 x 25, Chrome – application example

Product information "Compression Trigger Latch 86 x 25, Chrome"

Color:
Handle: Chrome
Trigger: Chrome
Housing: Chrome
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Handle: Zinc die-cast
Trigger: Zinc die-cast
Housing: Zinc die-cast
Mounting bracket: Steel
Screws: Steel
Arm: Zinc die-cast
Nut: Steel
Seals: Rubber NBR

Surface:
Handle: Chrome plated
Trigger: Chrome plated
Housing: Chrome plated
Mounting bracket: Zinc plated
Screws: Zinc plated
Arm: Zinc plated
Nut: Zinc plated

Pack Quantity:	10 pieces
Weight (g):	224.5
ERP Number:	121626

Global keywords / tags:

Application Area	Machinery & Plant Engineering

Variants

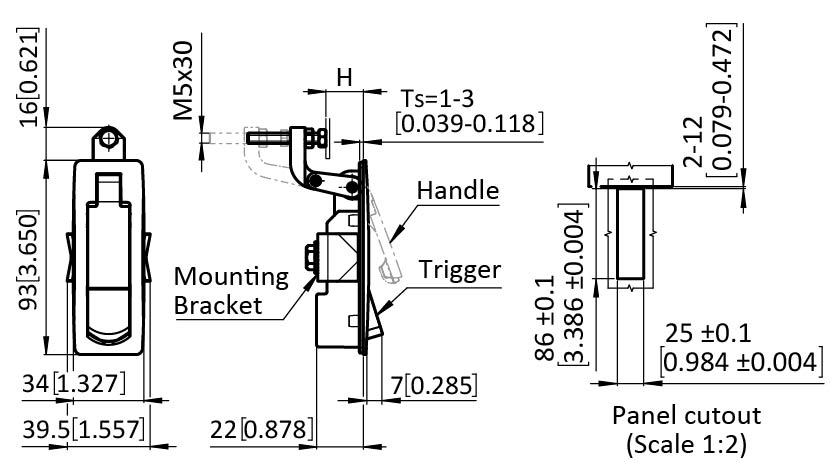

Part #	H (mm)	Insert type	Trigger	Arm
0810060	1 - 24	Non-locking	Raised	Short
0810061	1 - 24	Non-locking	Flush	Short
0810062	1 - 24	Key locking (Keyed FH751)	Raised	Short
0810063	1 - 24	Key locking (Keyed FH751) with shutter	Raised	Short
0810068	23 - 46	Non-locking	Raised	Long
0810069	23 - 46	Non-locking	Flush	Long
0810070	23 - 46	Key locking (Keyed FH751)	Raised	Long
0810071	23 - 46	Key locking (Keyed FH751) with shutter	Raised	Long
0811076	1 - 24	Phillips Insert	Raised	Short
0811077	1 - 24	Female hexagon 4.5 mm	Raised	Short
0811080	23 - 46	Phillips Insert	Raised	Long
0811081	23 - 46	Female hexagon 4.5 mm	Raised	Long

CAD Downloads

Classifications

ECLASS 6.0: 23199090
ECLASS 7.0: 23199090
ECLASS 8.0: 23199090
ECLASS 9.0: 23199090
ECLASS 10.0: 23199090
ECLASS 11.0: 23199090
ECLASS 12.0: 23199090
ECLASS 13.0: 23199090
Customs Tariff Number Export: 83014090

Certificates
